Nova Pin Jaw Set

Stock Code:
TK-JSPIN
Price:
$109.00 inc GST

Description

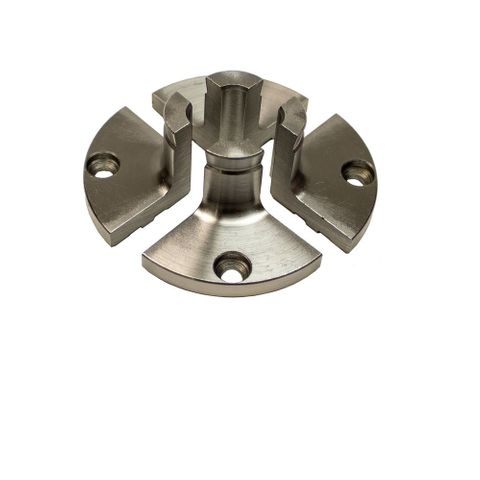

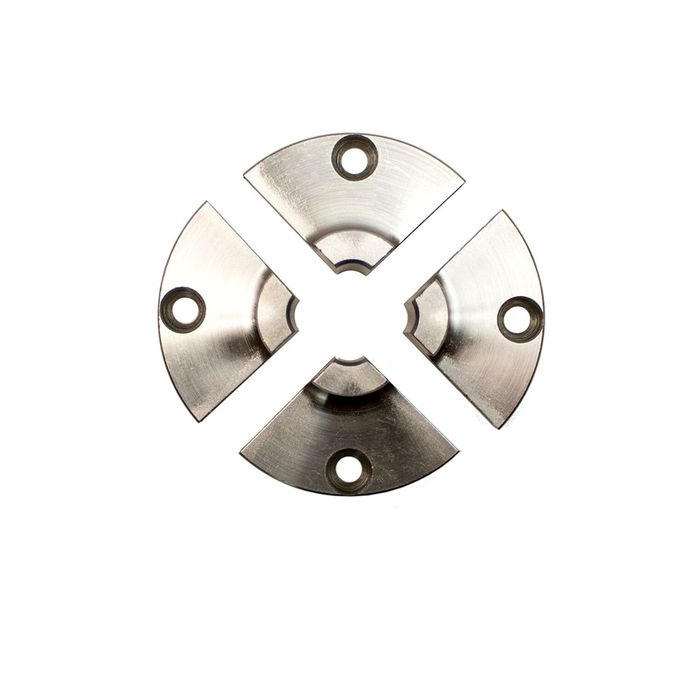

These special 25mm extended jaws are designed to act like a pin chuck - expanding into a pre-bored hole. This is an especially useful technique for free form edge bowls. A real big advantage over Pin Chucks though is that you don't have to bore to an exact size - any size between the minimum and just under the maximum expansion will do. The longer jaws allow for a very powerful spigot grip for all smaller work like lace bobbins (up to 6inch in length) and delicate pots etc. The jaws also have a dovetail to mount small bowls (up to 6inch dia).

Features standard on all NOVA Jaws:

Full Cross Function: Only NOVA Chucks give you the same jaw fixing system and same insert/adaptor system across all chuck models. This means all accessory jaws in the range fit all the chucks in the range; including older chuck models*; giving you the ultimate flexibility. In buying a NOVA chuck; you can be confident that whether you want to move up or down the range; any accessories you have invested in will fit.

Special Dovetail Profile: NOVA chucks have been especially designed so the jaws will cut into the wood; grip firmly in the contraction mode and provide high tear out strength. Some chucks use an engineering jaw profile (designed to hold a hard material like steel) or rounded profiles; which just crush the wood fibres without digging in and holding securely.

Features and Benefits:

- Quick and easy to use for small bowls and small unsupported spigot work
- A great range of smaller projects can be mounted and turned using either the expansion mode (mostly for bowls) or the contraction mode (mostly for spigots)
- Quick mounting makes them ideal for smaller projects
- Multiple turned pieces (i.e. lace bobbins) can be turned from dowel stock
- Made from medium tensile carbon K1045 steel to provide maximum structural strength.
- Standard Woodworm Screw can be used with these jaws
- Able to be used on all Teknatool Chucks in the range.

Jaws only, does not include the chuck that the jaws mount on to.

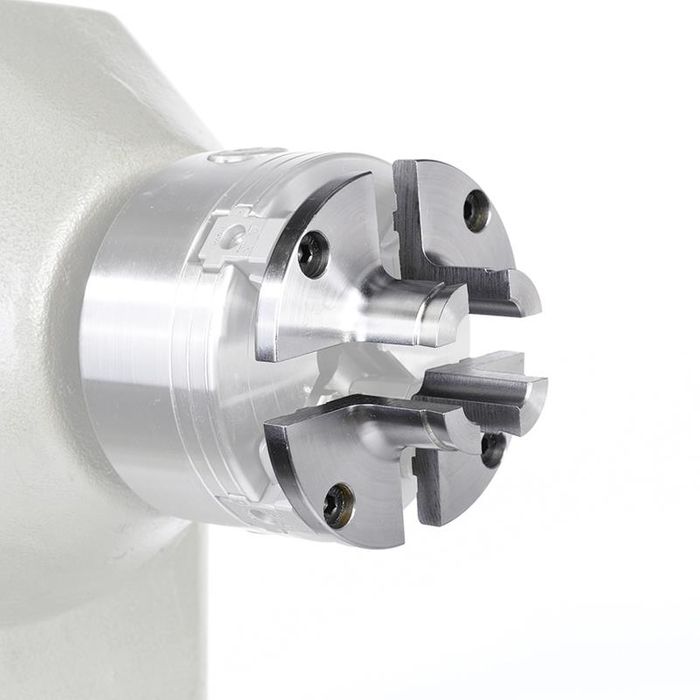

Jaw Travel Information for use on a SuperNova or G3 Chuck
- Expanding action gripping inside a round recess - 26 to 46mm diameter
- Contracting action on square stock - 7 to 28mm square
- Contracting action on a round spigot (foot) - 10 to 31mm diameter

Now with 10-year warranty from Nova!
