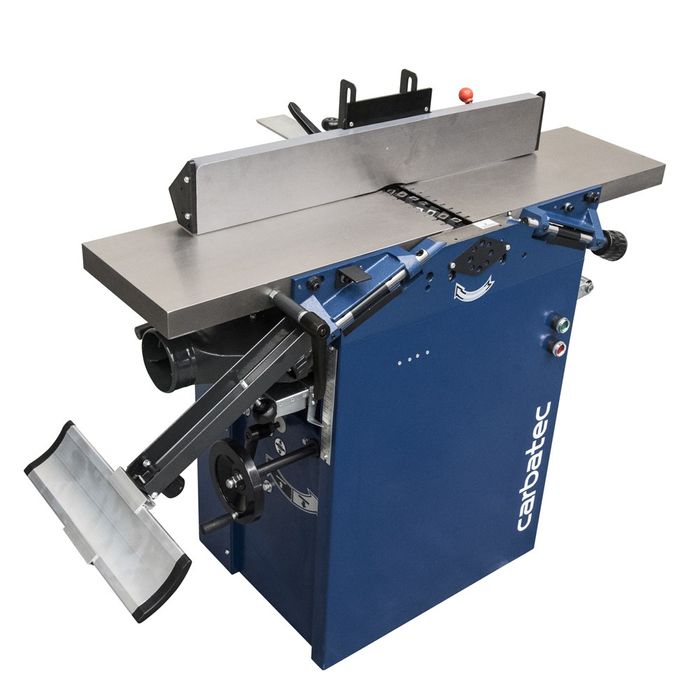

Carbatec 10" Combination Thicknesser Jointer with Helical Cutterhead
Description
Features & Benefits
* 10" (250mm) capacity
* 1-1/2 HP induction motor
* Cast iron jointing tables

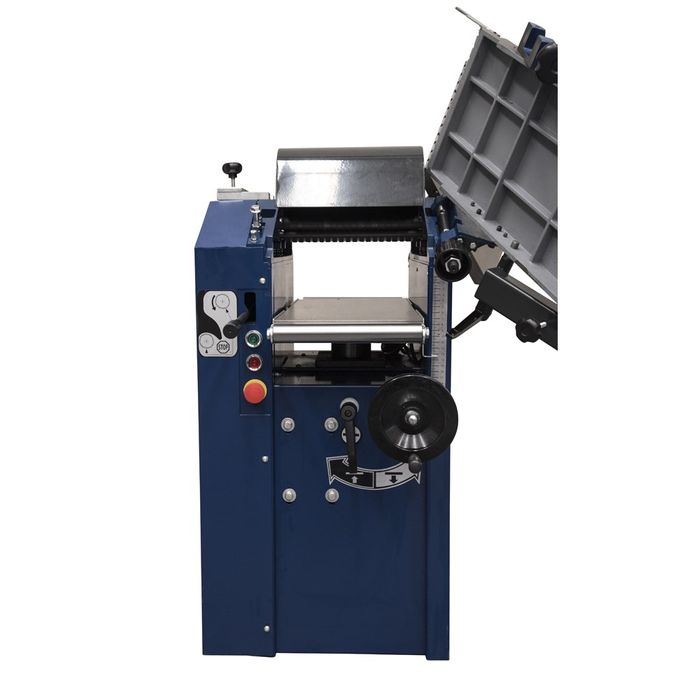

* Top table is removed to convert the machine to thicknesser mode
* 64 - Insert knives produce efficient cutting
* 4" (100mm) dust port
Description
We have updated the look product code of our AW106PT (now TJ-X250P), however, be assured, all specifications of this machine are the same as our tried and tested AW106PTX.

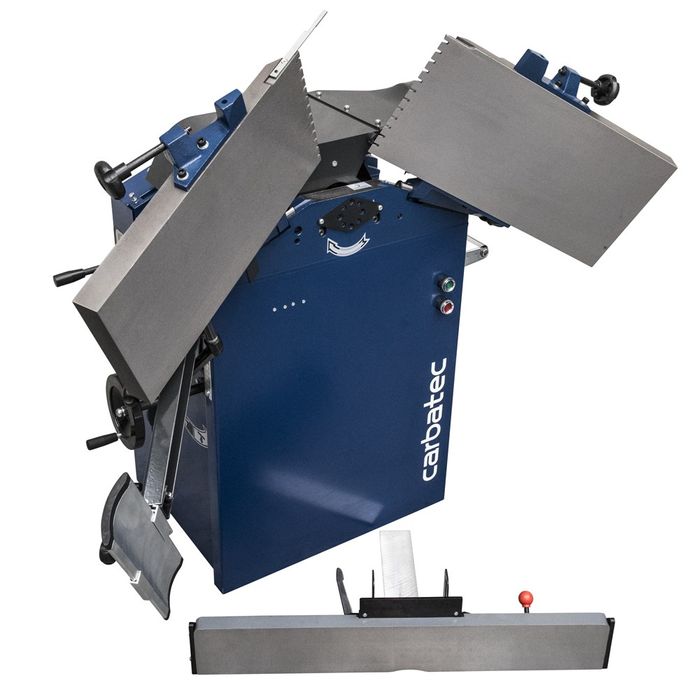

An economy version of a European style planer/thicknesser this machine is a real space saver in the workshop. Featuring flip-up tables for conversion to thicknesser mode the tables have noise-dampening slots to help minimize noise while machining. A serrated steel infeed roller on the infeed side is standard along with urethane rollers. The European style alloy cutterhead guard allows you access to the timber when being planed while still using your push blocks for maximum safety.
As with all machines of this type we highly recommend at least a 2HP dust collector to be paired with the planer/thicknesser. This will increase the efficiency of the machine and minimise dust and shavings that need to be collected after machining the timber has stopped.
This machine's 64 four sided cutter knives (which can be turned to offer a new cutting edge in seconds) are made of fine grain tungsten carbide and are held in place by a Torx style screw. Knives of this type last three to five times longer than good quality HSS knives. Multiply this by four cutting edges and you achieve 12 to 20 times the normal blade life of a HSS blade set. Easily turned and seated, they present a fully sharpened and indexed cutting edge. No complex blade setting or jigs are required - you simply replace the blade when all four edges have been used.
NOTE:
1. NZ machines are sold with Bridge Guards over the cutter.
2. The overhand planing function of this machine is commonly called a jointer as it is for creating straight and square edges for joints between boards. This overhand operation has also been called a "Buzzer" due to the noise made by straight knife machines. Many people refer to these machines where timber travels over the top of the cutter as Buzzers.
Product Specifications
Brand Carbatec
Motor 1.1kW (1.5HP) Induction, 10A plug
Switch Type Magnetic Safety
Cutterhead Spiral - 64 insert knives
Dust Port 100mm (4")
Fence Tilt -45° / 45°
Positive Stops -45° / 90° / 45°
Table Material Cast Iron
Table Size 1190mm
Workshop Footprint (WxDxH) 1100mm x 800mm x 1000mm
Thicknesser Mode - Feed Rate 8m/min
Thicknesser Mode - Feed Rollers Serrated / Steel
Warranty Period 2 Years
Shipping Weight 165Kg
Nett Weight 150Kg
-
AucklandLimited Stock
-
ChristchurchSorry, not in stock. Please contact us to backorder
