Rockler I-Semble Light-Duty Blind Shelf Supports

Stock Code:
RK-58646
Price:
$52.00 inc GST

Description

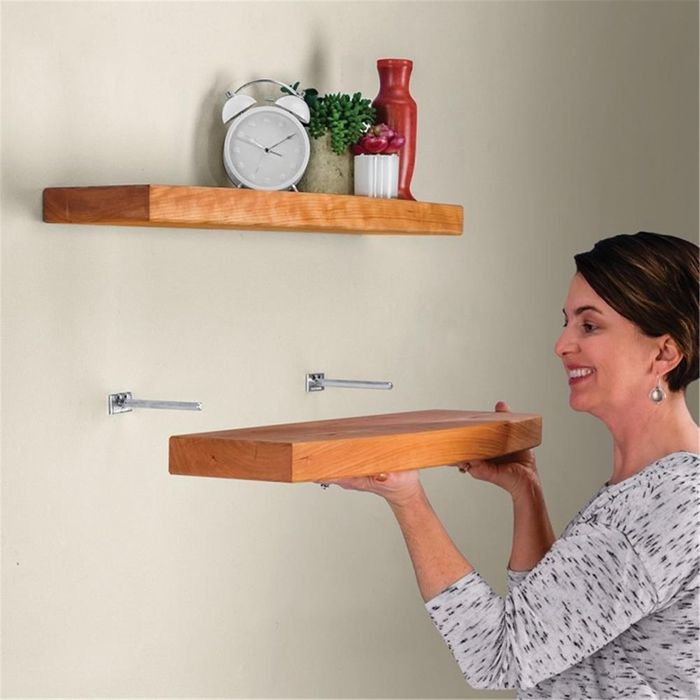

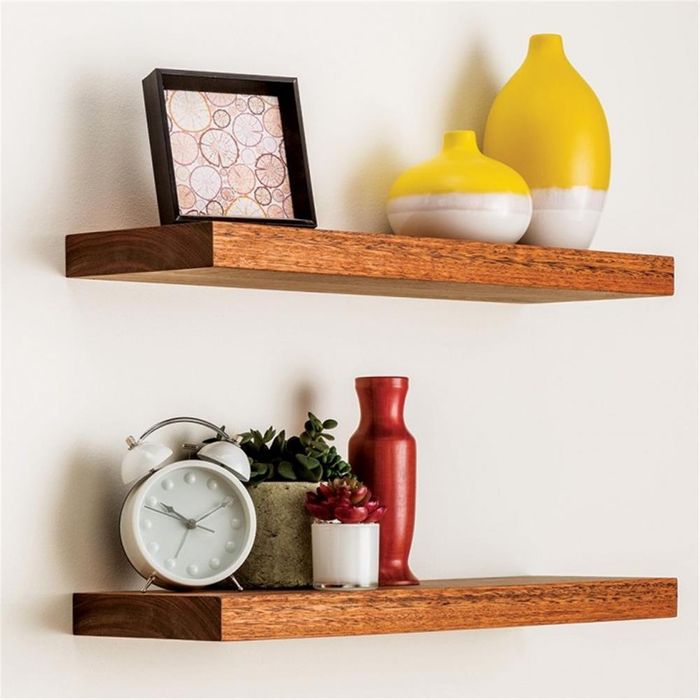

Get that truly modern look with your own floating shelves. Made from sturdy steel, they have a load rating of 22kg per pair, across a recommended minimum span or 457mm (18"), and up to 860mm (34"). For longer spans, simply add more brackets.

Height adjustment slots let you level the shelf if your initial holes are slightly off

What’s Included:

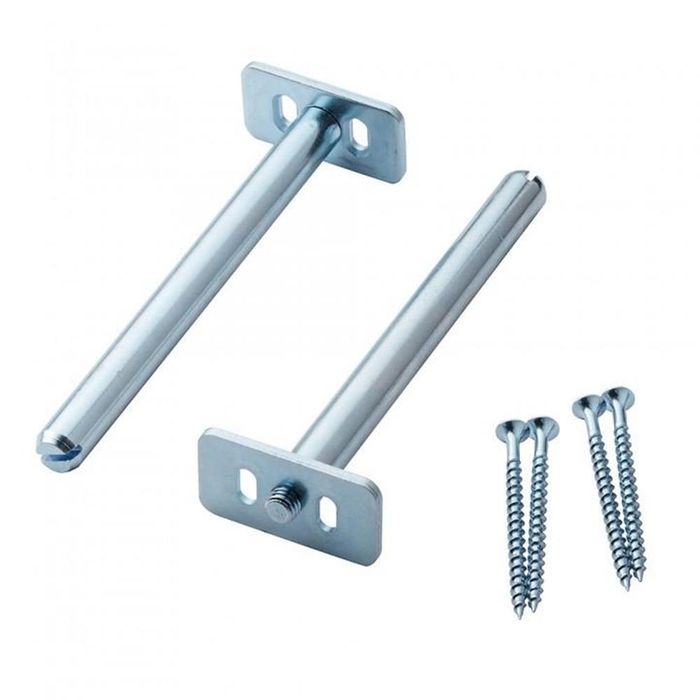

* 2 x I-Semble Light-Duty Blind Shelf Supports
* All hardware is provided, including mounting screws - you provide the wall space and the shelf

Technical Data:

- Support Arm Projection: 127mm
- Support Arm Diameter: 1/2'' (12mm) nominal
- Drill Bit Required: 1/2'' or 12mm
- Wall Bracket Dimensions: 24mm H x 44mm L x 3mm T
- Minimum Shelf Thickness: 28.5mm (to entirely conceal the hardware)
- Maximum Shelf Thickness: 31.75mm (shelf may be thicker, but thicker shelves will reduce weight capacity)
- Minimum Shelf Length: 457mm (to span two studs)
- Minimum Shelf Projection: 140mm (supports may be cut for shallower shelves)
- Maximum Shelf Length: 860mm (for two supports; additional supports can be added for longer shelves)
- Maximum Shelf Projection: 203mm
- Weight Capacity: 22kg per pair of supports

Product Specifications
Brand Rockler
