Industrial 6in Longbed Jointer - NZ guard

Stock Code:
JN-L150C
Price:
$2,299.00 inc GST

Description

Features & Benefits

* Powerful 750W (1HP) motor
* NVR switch fitted for safety
* Long 1410mm bed for trueness and accuracy
* In-built mobile base makes moving and positioning easy
* 4" integrated dust chute
* Superior parallelogram table adjustment system (SEE VIDEO)

Description

The perfect addition to any workshop. We have updated the look & product code of our CTJ-150 (now JN-L150C), however be assured, all specifications of this machine are the same as our tried and tested CTJ-150.

The Carbatec 6" Industrial Long Bed Jointer. This machine's extra bed length provides trueness and accuracy without taking up too much space in your shop.

Features include a powerful 1hp motor, an enclosed cabinet, 4" dust chute, integral mobile base, centre-mounted heavy-duty fence, three knife cutterhead and NVR Stop Switch.

This machine also comes complete with a superior parallelogram table adjustment system. This system produces less chipping as the tables follow the arc of the cutterblock when raising or lowering the table. It also makes for more positive adjustment and there is none of the slack that is commonly found with ordinary screw-type adjustment wheels.

NOTE:

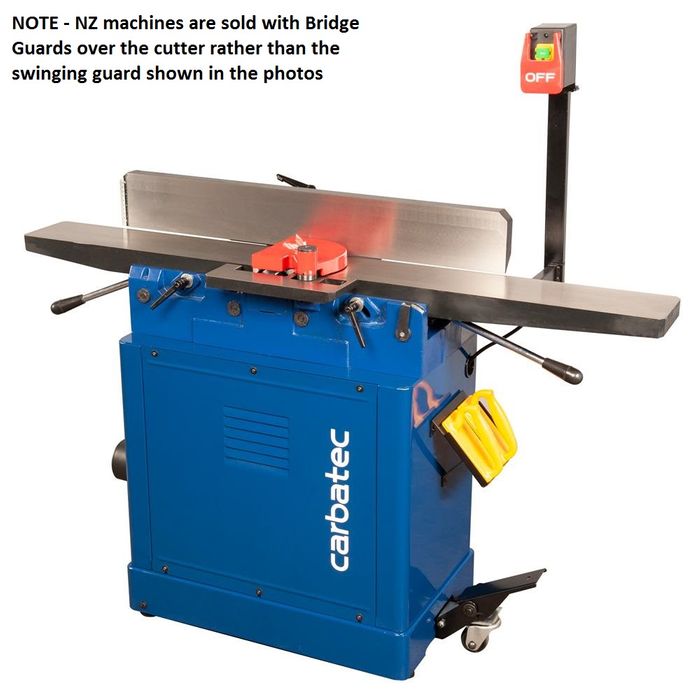

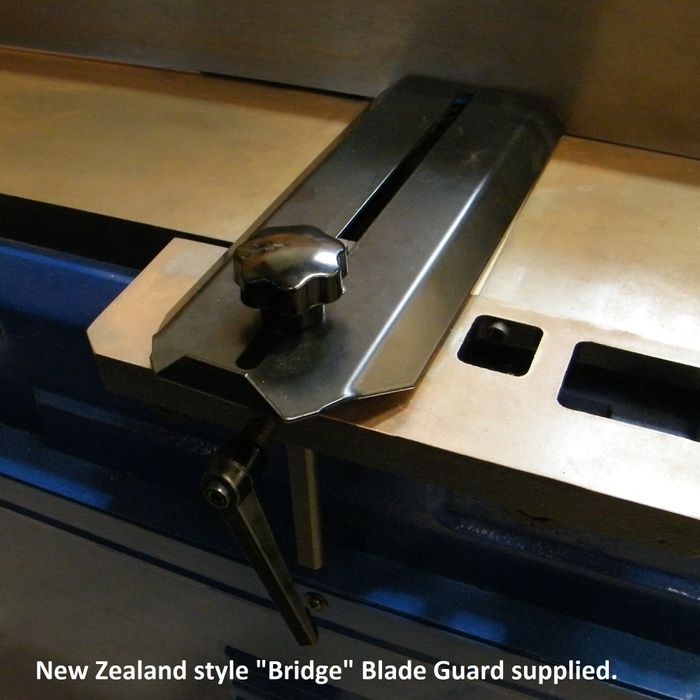

1. NZ machines are sold with Bridge Guards over the cutter rather than the swinging guard shown in the photos.
2. The overhand planing function of this machine is commonly called a jointer as it is for creating straight and square edges for joints between boards. This overhand operation has also been called a "Buzzer" due to the noise made by straight knife machines. Many people refer to these machines where timber travels over the top of the cutter as Buzzers.


Product Specifications
Motor 750W (1.0HP) Induction, 10A plug
Switch Type Magnetic NVR
Blade Guard Bridge Guard (different to that shown)
Cutterhead Straight 3 Knife
Dust Port 1 x 100mm
Fence Tilt -45° / 45°
Positive Stops 45° & 90°
Rabbeting Capacity 15mm
Stand Included Or Integral Enclosed Cabinet
Width 152mm
Table length 1410mm
Workshop Footprint (WxDxH) 1410mm x 600mm x 1310mm
Warranty Period 3 Years
Shipping Weight 150Kg
Nett Weight 135Kg

  • Auckland
    Available
  • Christchurch
    Limited Stock
