14in Bandsaw 2 Spd 200mm

Stock Code:
BS-345H
Price:
$1,599.00 inc GST

Description

Features & Benefits

* 1.5HP induction motor
* Light weight alloy wheels
* Large 4" (100mm) dust port
* Adjustable blade guides

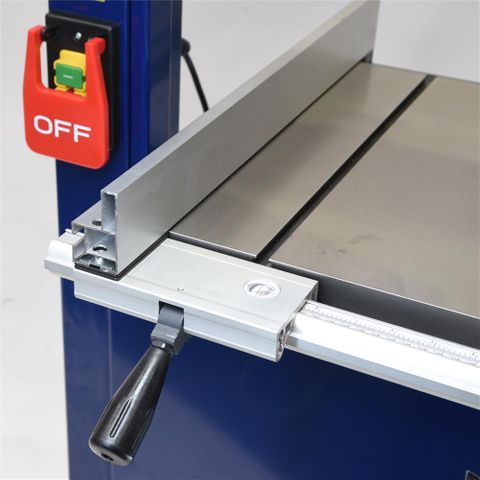

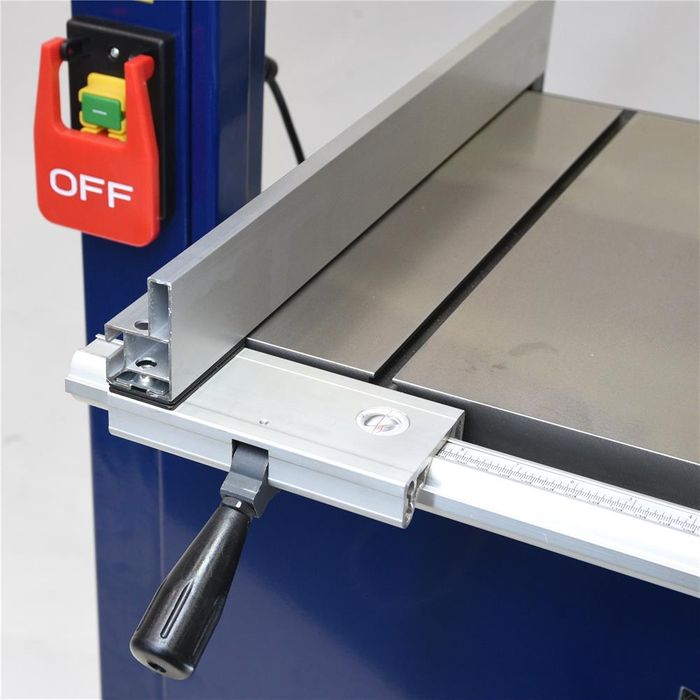

* Rip fence
* Mitre gauge
* 2 speeds – High speed for wood – Low speed for non-ferrous metal
* Easy to assemble stand comes in the same box as the bandsaw
* Includes Blade: 5/8" x 4TPI (16mm x 4TPI)

Description

We have updated the look & product code of our BAS-350C and BAS-350B (now BS-345H), however be assured, all specifications of this machine are the same as our tried and tested BAS-350C and BAS-350B.

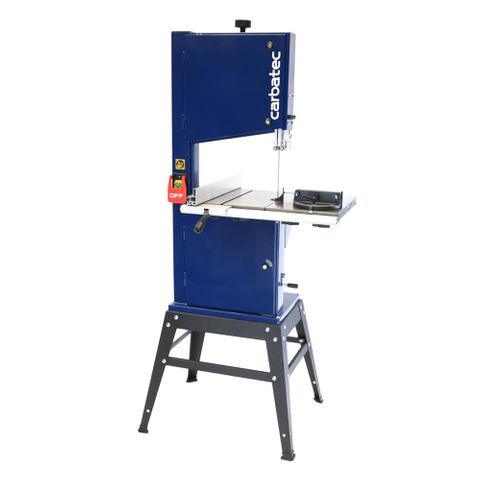

This 14" bandsaw features cast alloy wheels and a 1.5HP powerful motor. The large 100mm dust port means this 14" bandsaw can be used with a workshop dust extractor without needing to reduce the hose size and air flow. The open stand allows for a dust extractor hose to run easily to this 14" bandsaw from any direction, whereas with a closed or cabinet stand, there may need to be more bends to get it to the dust port. Bends in hoses cause the air flow to be reduced, ideally dust hoses should remain as straight as possible for as far as possible. This increases the air flow between the machine and the dust extractor unit helping to provide the efficient transport of wood chips and shavings.

This bandsaw comes into its own with its two speed feature, allowing you to cut wood using the high speed setting and non-ferrous metals when the machine is on the lower speed. Versatility of this sort is not often found in equipment like this so it is a nice feature to have.

Please see the video for features

Please see this video for assembly instructions; https://youtu.be/yZLfkQ-pfZE

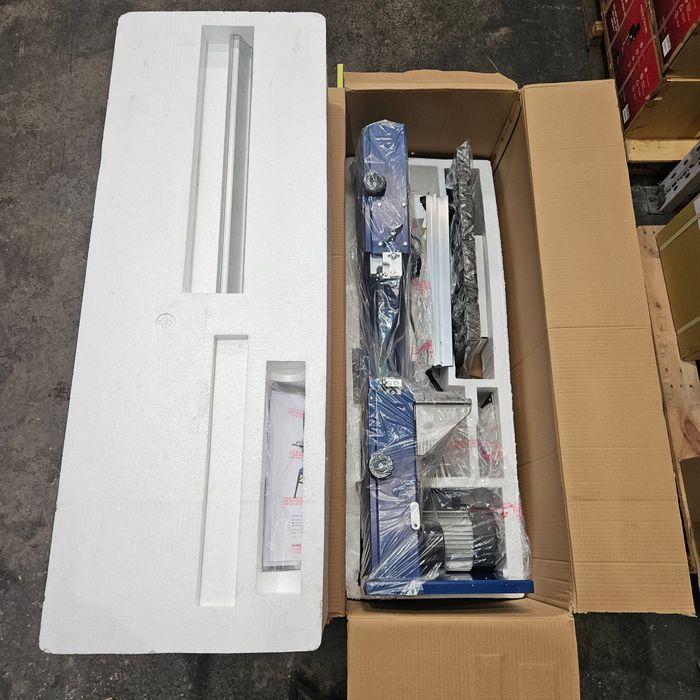

Forth photo shows how the machine is packed.

Product Specifications
Brand Carbatec
Motor 1.1kW (1.5HP) Induction, 10A plug

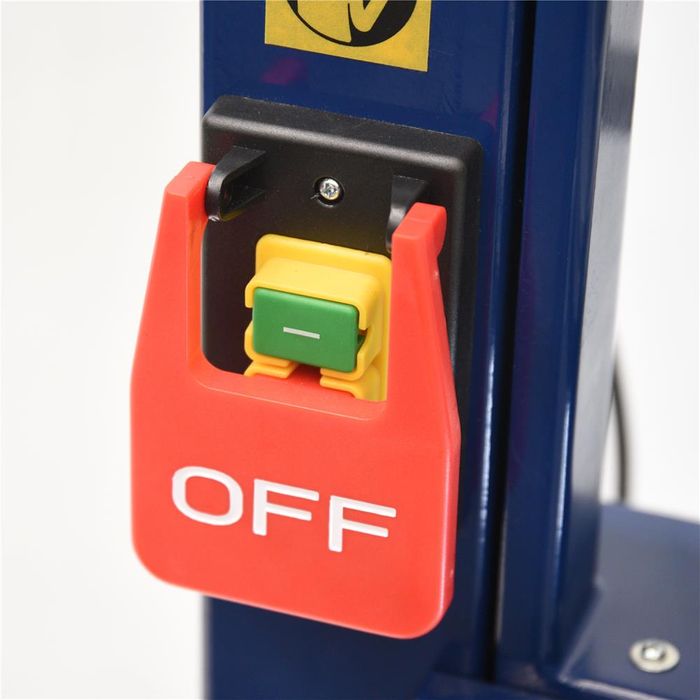

Switch Type Magnetic NVR
Blade Guides Ball Bearing with manual rise & fall
Blade Length 2490mm
Blade Release Standard Tension Release
Depth of Cut 200mm
Dust Port 1 x 100mm (4")
Minimum Blade Width 6.35mm (1/4")
Maximum Blade Width 19mm (3/4")
Maximum Rip Capacity 345mm
Positive Stops 0° Adjustable
Table Height 1060mm
Table Size 550mm x 400mm
Table Tilt -5° / + 50°
Workshop Footprint (WxDxH) 740mm x 580mm x 1740mm
Wheel Diameter 350mm
Wheel Type Cast Alloy
Warranty Period 1 year
Shipping Weight 100Kg
Nett Weight 95Kg
