Leigh RTJ400 Router Table Dovetail Jig

Stock Code:

LGH-RTJ400

Price:

$839.00 inc GST

Description

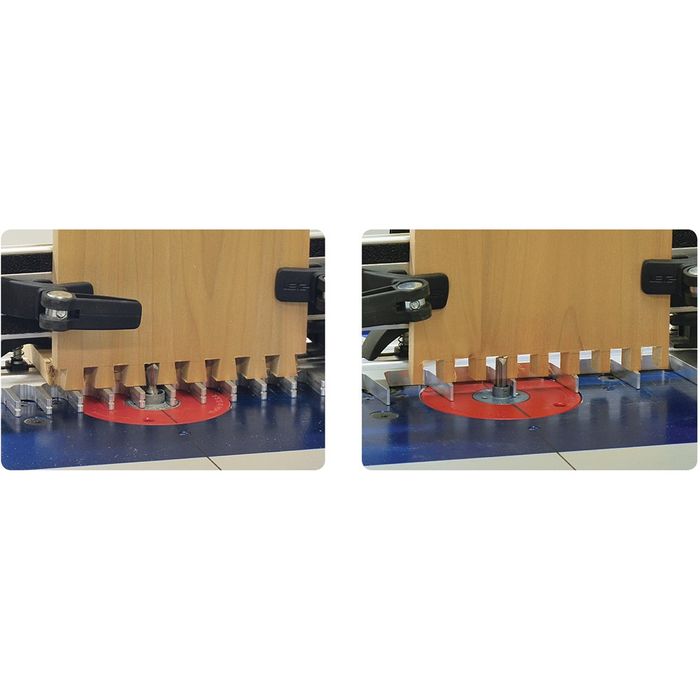

Router tables are exceedingly popular and can be found in most shops. The Leigh RTJ400 is designed specifically for router table use, providing fast and accurate routing of through dovetails, box joints and half-blind dovetails, all on your router table. The Leigh RTJ400 Template is precision CNC machined from aircraft grade aluminium for perfect joinery every time. Versatility is a key feature of the Leigh 16"(400mm) RTJ400 Jig. It makes 5 sizes of through dovetails at two different pitches, 3 sizes of single pass half-blind dovetails, and 4 sizes of box joints (finger joints). Perfect joint fit is guaranteed and repeatable with the patented Leigh elliptical guide bushing. The Leigh RTJ400 is capable of: -Full pitch through Dovetails -Half pitch through Dovetails -Half Blind Dovetails -Box/Finger joints -Angled Dovetails -End on end Dovetails

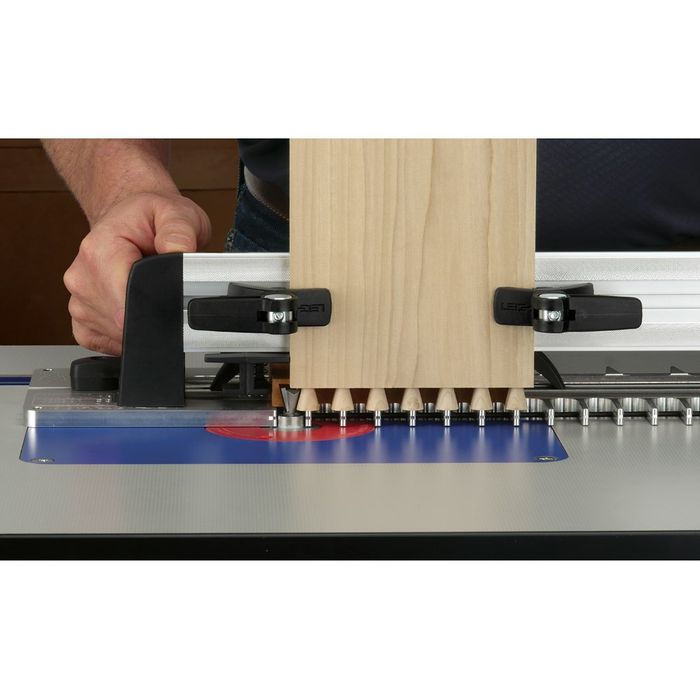

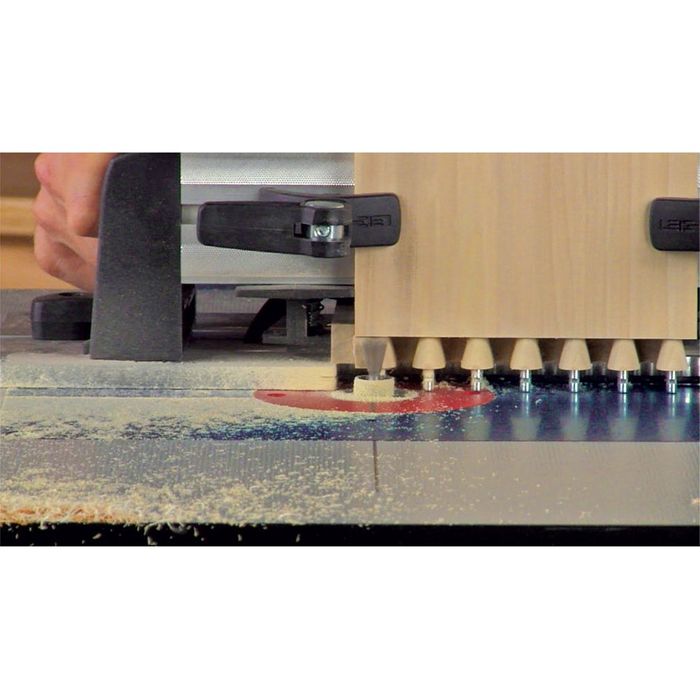

The Leigh RTJ400 Dovetail Jig makes precise joinery easy. Simply center the board on the template and guide the jig across the router table to rout the joints. One template makes all three types of joinery. The Leigh RTJ400 is a dedicated router table dovetail jig, designed for use by woodworkers of all levels. Leigh has made perfect joinery easy in every way, from the clearly illustrated, step-by-step user guides, to the complete how-to videos on the included DVD.

IMPORTANT ROUTER TABLE REQUIREMENTS:
Router tables are typically used with a bearing or fence, however, the Leigh RTJ400 is guided around a guide bushing mounted in the router table. Leigh eBushes (guide bushings) are designed around the decades-old Porter Cable/Black & Decker industry standard. Therefore, you will need an insert ring to fit the eBush to your router table or router plate. Carbatec stock, and recommend the excellent range of KREG router tables, or the KREG router table inserts if you are building/retro fitting your own table.

Note: this is not suited for any model Triton table.

Contact our sales team if you are unsure.

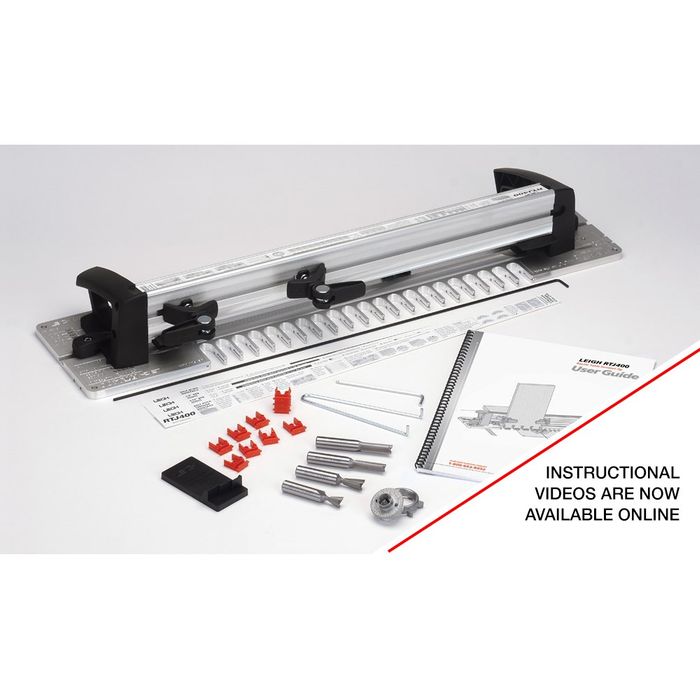

RTJ400 Jig includes:
- Jig Template, Machined, Imperial Scales
- Jig Frame, Machined
- Latches, 2, for securing jig frame to template
- Hex Key, 1/8" Ball End
- Cam-Action Speed-Clamps, 4
- Blockers for Through Dovetails
- Stop Rod, 24", for Half-Blind Dovetails
- Sidestops, 2, for mounting workpieces
- Bit Depth Gauge, for Half-Blind Dovetails
- Instruction Strips, 5, inserted in top of jig
- Bits: 1/2", 8° and 14° Dovetail
- Bits: 3/8" and 1/2" Straight
- Guide Bushing (e10 elliptical eBush)
- Pin Wrench, for eBush adjustment
- User Guide, Fully Illustrated
- Warranty/Registration Card

Instructional Videos are available online at; https://www.leightools.com/instructional-videos-and-user-guides/
