Veritas Right Angle Saw Guide 90*

Stock Code:

05T04-01

Price:

$129.00 inc GST

Description

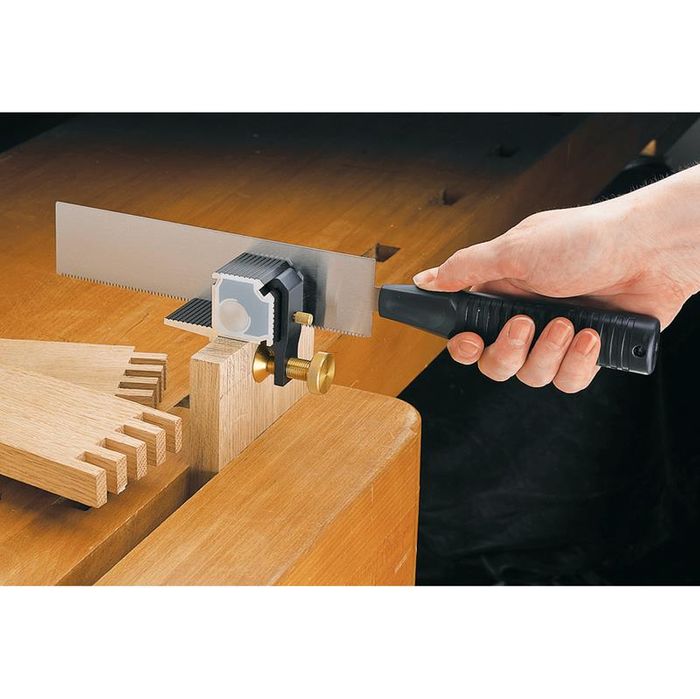

After receiving requests from customers; Veritas developed a right-angle saw guide for making finger joints; cutting tenons; or on-the-spot trimming of small items. It is also ideal for beginners or children learning to make perfectly square perpendicular cuts on board ends.

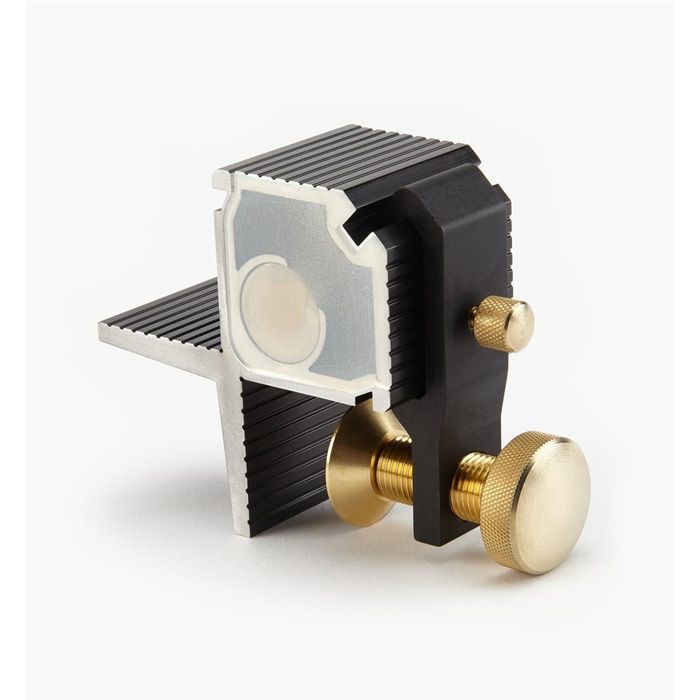

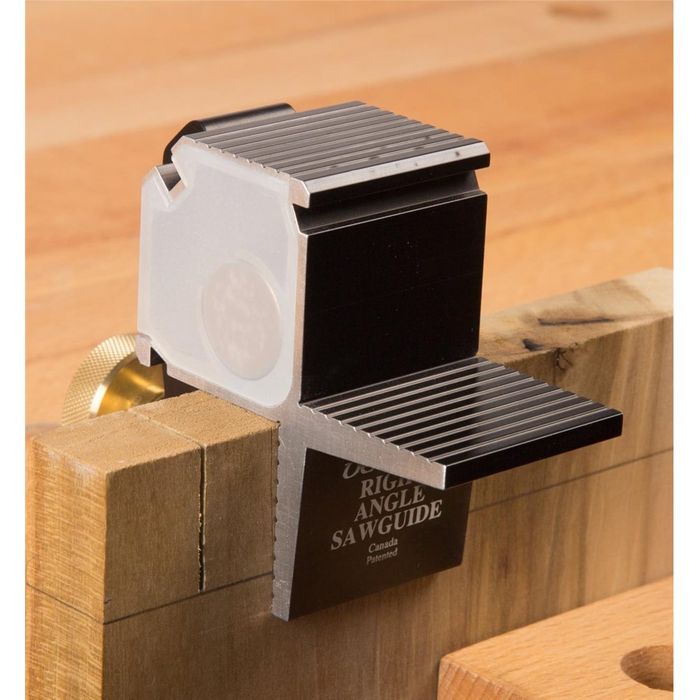

Manufactured using the same precision-machined aluminum extrusion as Veritas dovetail saw guides; each reference surface has an embedded 3/4inch rare-earth magnet and is covered with a low-friction UHMW pad. The magnets keep the saw aligned as you cut; the pads allow the saw to slide easily against the reference surface.

The clamp can accommodate material from 1/4inch to 1inch thick. The guide can be used with any backless saw that has approximately 0.005inch or less of tooth set. Our dovetail saw is a suitable companion. With a 2inch x 8-1/2inch; 22 tpi blade; the dozuki tooth form is effective in both crosscuts and rip cuts.

Veritas code: 05T4.01
