Trend Hinge Jig Skeleton Two Part in Case

Stock Code:
TRD-H-JIG-C
Price:
$899.00 inc GST

Description

Trend Code H/JIG/C

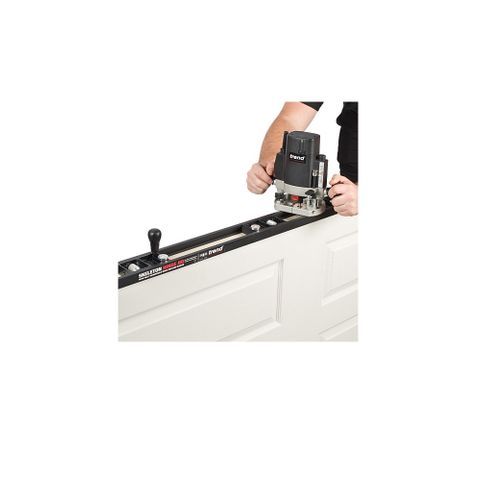

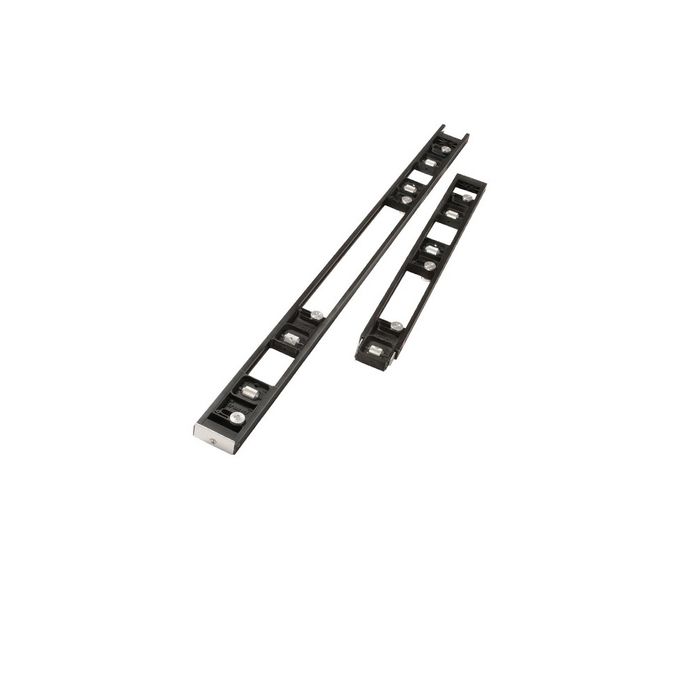

The two part Contractor Hinge Jig is a portable fully adjustable block template set designed for recessing hinges in wooden doors & frames using a plunge router.

Features
* It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
* Used on-site & in joinery shops to increase productivity with excellent results.
* Fully adjustable apertures for fire door requirements and renovation work.
* Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
* Ideal for fitting a new door in an old frame.
* No need for marking out in the conventional way.
* Quick & simple to set-up as the hinge is used as the pattern.
* Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
* Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
* Patent No. GB2490139

Needed

* Use with a light duty plunge router with 1/4 inch collet.
* Long reach router cutter required, 12mm diameter with 70mm overall length (Search TRD-TR12X14TC)
* A Unibase or similar adaptor will be required to fit the guide bush to your router (SEARCH UNIBASE)

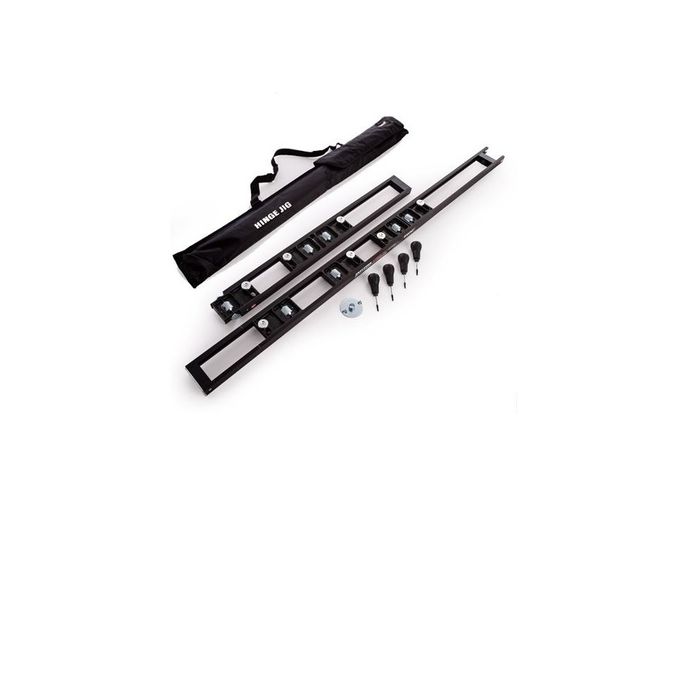

This product includes:
- 3 x Hinge sliding aperture block assemblies
- 4 x Bradawls (short blade)
- 1 x 16mm guide bush
- 1 x Carry case
