AA Battery Movement - suit dials up to 1/4" (6.35mm) thick

Stock Code:

CLK-7160

Price:

$17.00 inc GST

Description

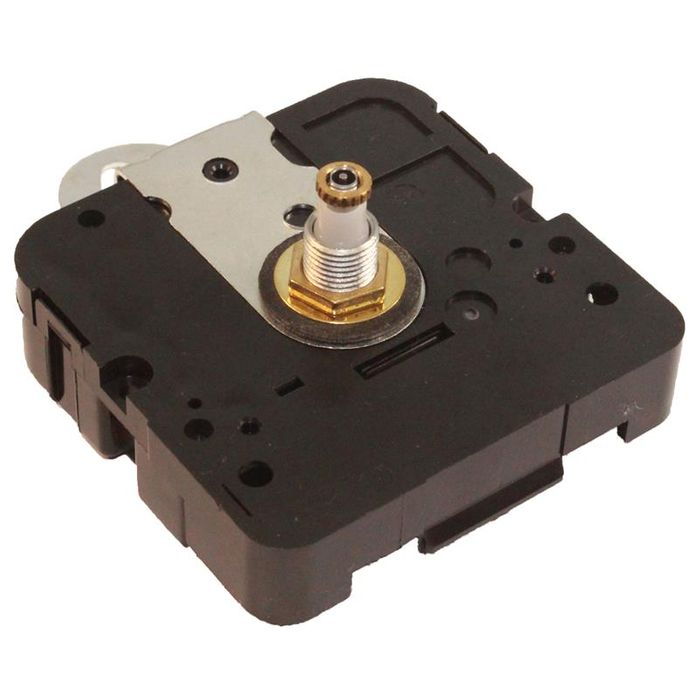

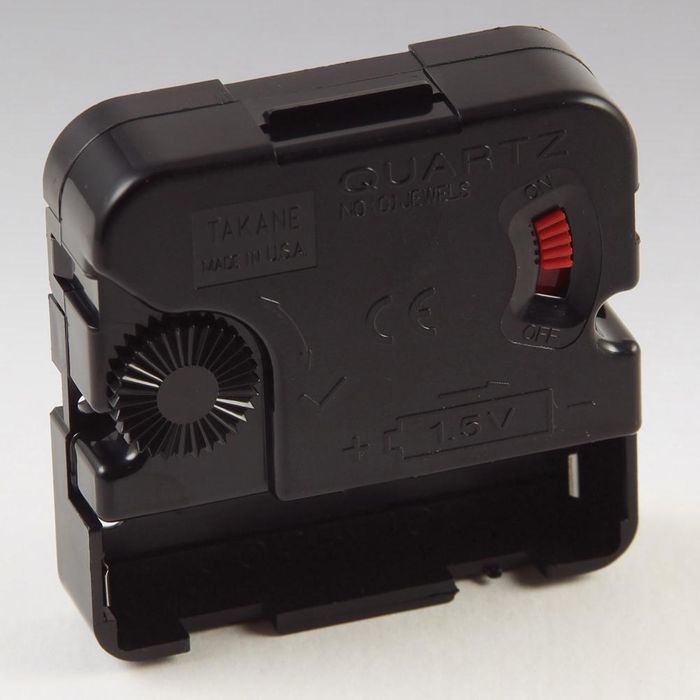

This American made mini quartz clock movement is the standard in the industry.

Whether you're a hobbyist or a serious clock maker; these movements will fit your needs.

They run on one AA battery and are accurate to around 2 minutes a year.

To choose the proper shaft length you'll require; measure the thickness of the material the movement shaft will need to go through and find the appropriate model in the table below.

If you are using a glass or plastic cover over the movement, make sure you have at least 1/8 inch extra clearance as you will need room for a second hand or a minute hand cap nut.

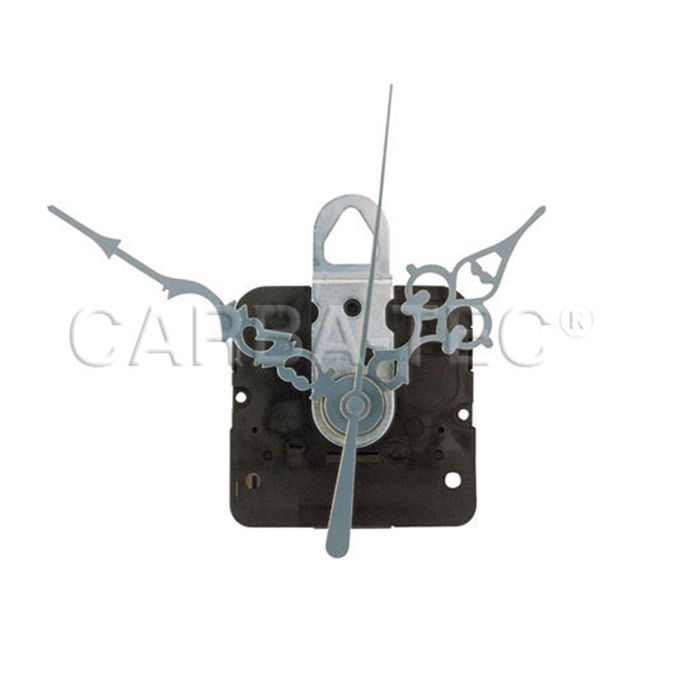

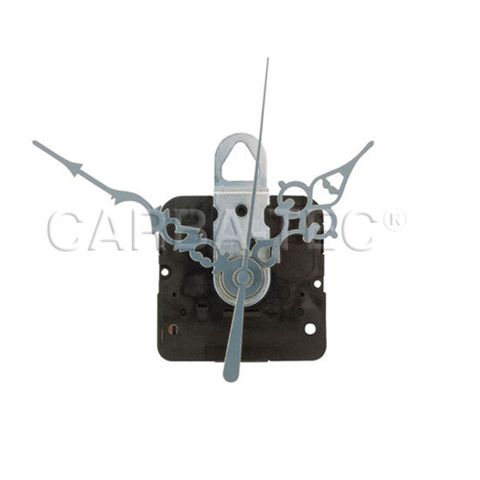

These American made movements will operate a second hand, but second hands are considered optional.

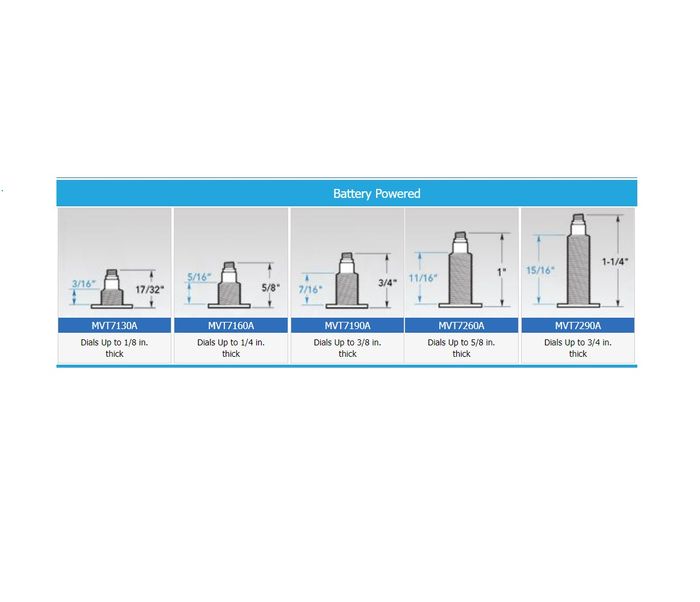

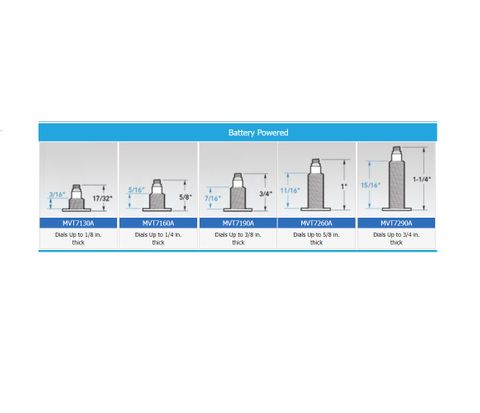

CLK-7130 suits a clock face with a maximum thickness of 3mm

CLK-7160 suits a clock face with a maximum thickness of 6mm

CLK-7190 suits a clock face with a maximum thickness of 9mm

CLK-7260 suits a clock face with a maximum thickness of 16mm

CLK-7290 suits a clock face with a maximum thickness of 19mm

All models have a 5/16" (8mm) shaft diameter so a 3/8" (9.5mm) mounting hole is the correct size to drill in your case.

Dimensions of Mechanism are 5.4cm x 5.4cm x 1.5cm.

Please select hands and numbers separately and note that the way clock hands fit on a mechanism is not standardised between brands. Purchasing correct hands is recommended.
