Tormek Square Edge Jig - SE-77

Stock Code:
TOR-SE-77
Price:
$121.00 inc GST

Description

Tormek Code SE-77

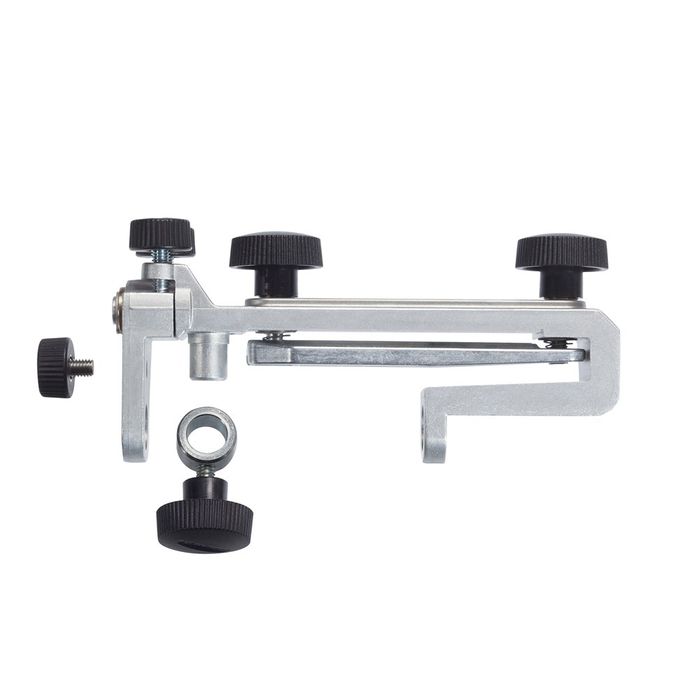

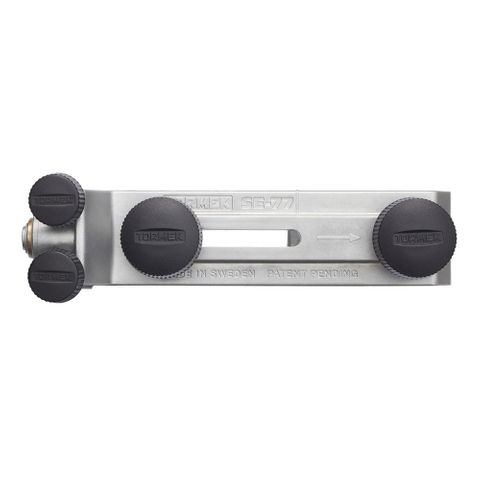

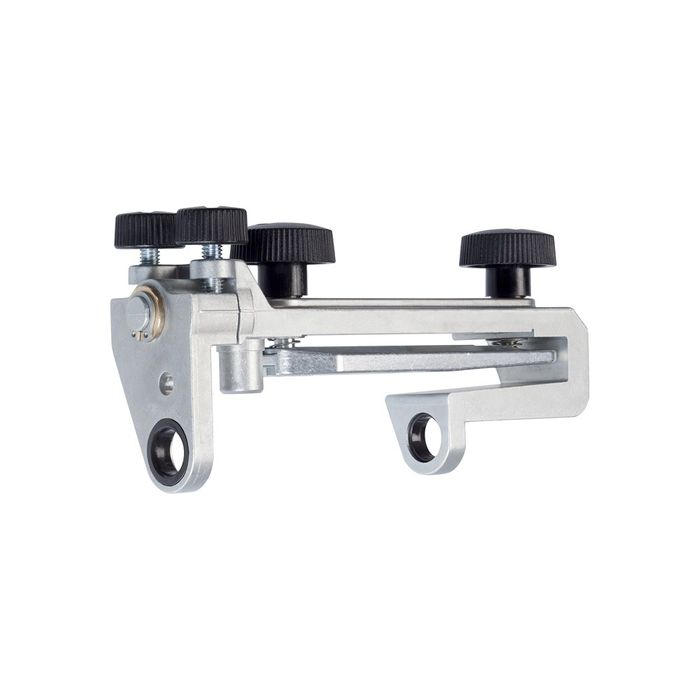

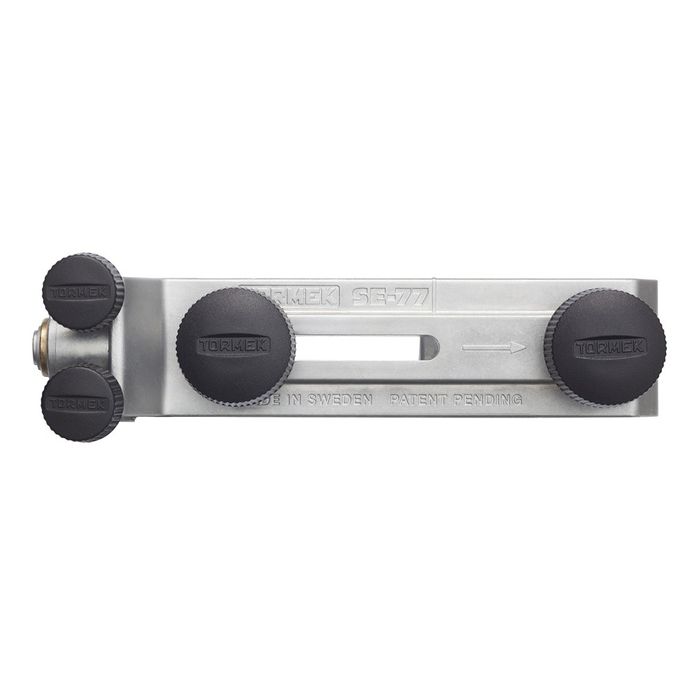

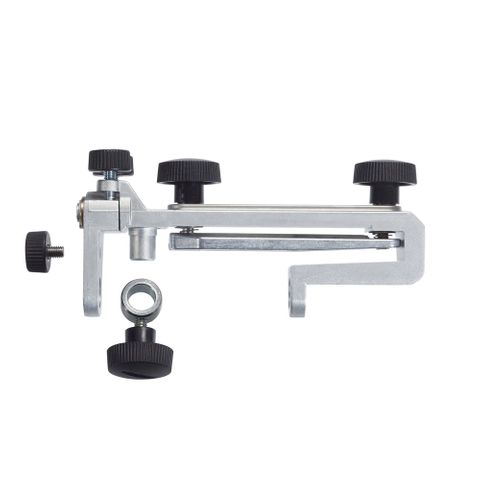

SE-77 Square Edge Jig

With the SE-77 Square Edge Jig, it is easy to set your wood chisels and plane irons for sharpening to a square corner. The design gives you the best conditions for a successful sharpening with the highest precision over the final result. You can also set the jig for a slightly convex shape.

The SE-77 Square Edge Jig is a further development of the SE-76 jig. It has been provided with an adjustable side that can be set with the help of two smaller knobs, which allows fine tuning if needed. This can be required if the tool is not exactly square to the stone, is very narrow or if the steel is slightly twisted. The setting for fine adjustment is done in seconds by loosening one of the smaller adjustment knobs and tightening the other.

The jig's construction also makes it possible to position and sharpen tapered chisels, e.g. Japanese chisels. The safety stops keep the jig securely on the Universal Support and prevent the tool from sliding off the grindstone, so there is no risk that you will hurt your fingers when sharpening. The jig fits wood chisels and plane irons up to 77 mm (3") width. Max thickness 9mm.

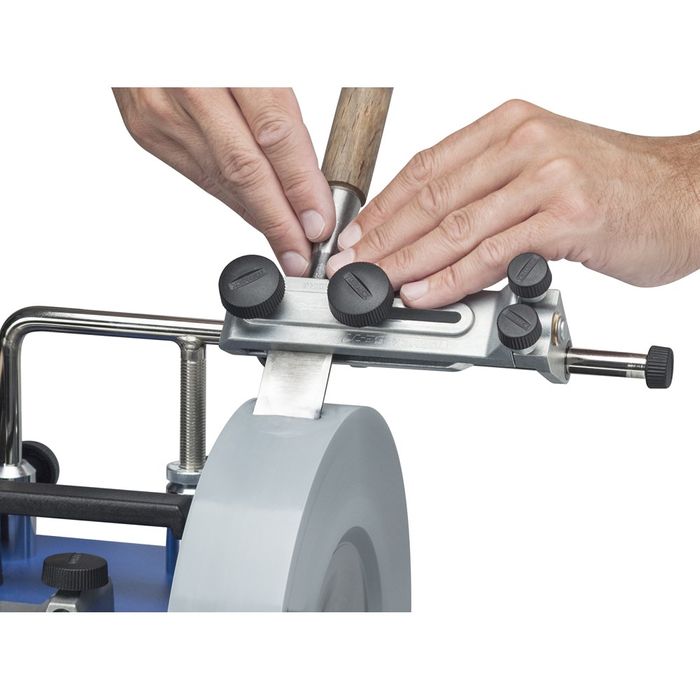

Jig only, does not include the Grinder shown.
