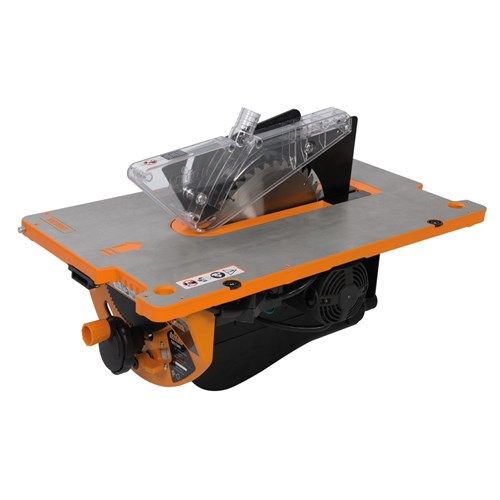

Triton Workcentre Saw Module
Description
Triton Code TWX7CS001
Features & Benefits
- Powerful 1800W motor and precision 254mm TCT blade easily performs a multitude of sawing tasks.
- Includes protractor gauge for precise cross cutting and mitre cutting.
- Rip fence with built in T-slot for precision rip cuts and accessory support.
- Dual dust extraction ports for cleaner safer operation.
- Table surface hand slots for ease of module removal.
- Adjustable bevel angle for precise 0-45° bevel cuts.
- Includes push-stick for safe control of the workpiece near the blade.
Description
The precision contractor saw module designed for use with the Workcentre TWX7, resulting in a full-featured saw table capable of professional results.
Powerful 1800W motor and precision 254mm TCT blade. Accurate 86mm blade height adjustment and 0-45° bevel angle adjustment for performing complex bevel cuts.
Protractor gauge and rip fence for performing rip cuts, cross cuts and mitre cuts. Dust extraction port located below the table surface for efficient, unobtrusive dust removal.
Easy to assemble and configure and fully supported by optional accessories for extending functionality.

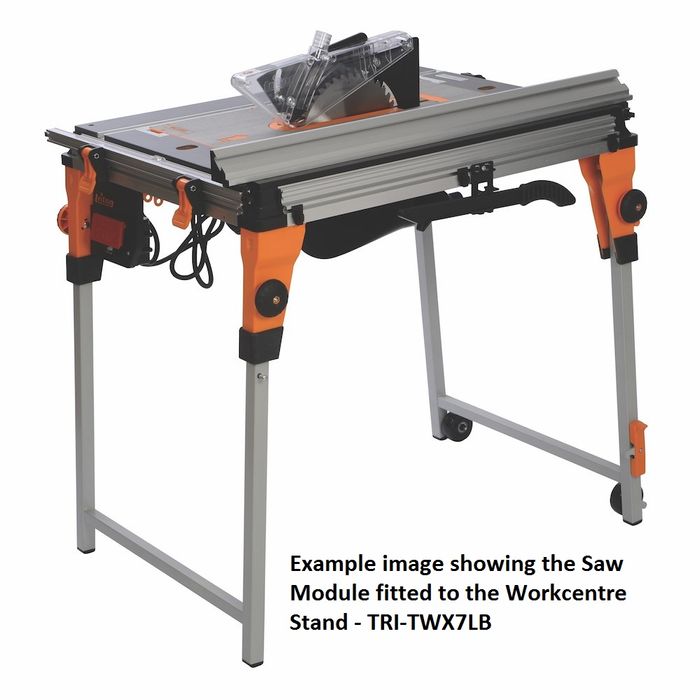

Cannot be used separate to the Triton Workcentre ( TRI-TWX7LB )
Product Specifications
Brand Triton
Blade Diameter 254mm
Blade Tilt 0 - 45°
Blade Type 40 Tooth Narrow Kerf (Tungsten Carbide Tipped)
Bore 30mm
Max Cut At 45° 59mm
Max Cut At 90° 86mm
Motor 1800W
Table Height 900mm
Table Size 851 x 650mm
Maximum Rip Capacity 775mm
Shipping Weight 20Kg
Nett Weight 15.2Kg
-
