Carbatec 250mm Helical Head Thicknesser Jointer
Description

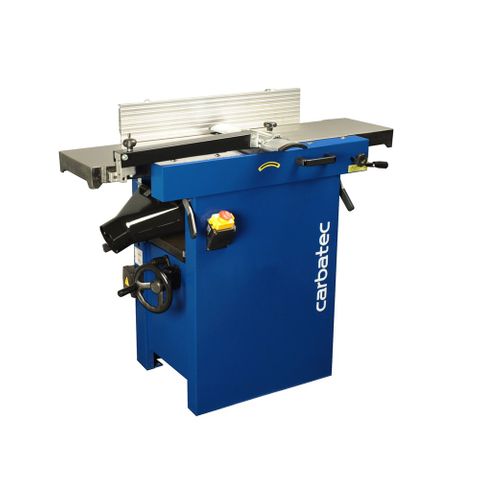

Carbatec’s TJ-X250C Helical Head Thicknesser / Jointer combination machines has a wide, machine ground cast iron bed jointer on the top and a cast bed thicknesser underneath. Helical Head with radius edge carbide insert knives, angled to give you a shear cut action. Quiet, clean and superior finish in the crankiest of timbers. Independent infeed/outfeed table adjustment, precision tilting aluminium fence and all the safety features you would expect on a commercial machine, like Euro bridge guard, NVR switching, and electrical interlock on the cutterhead dust chute.

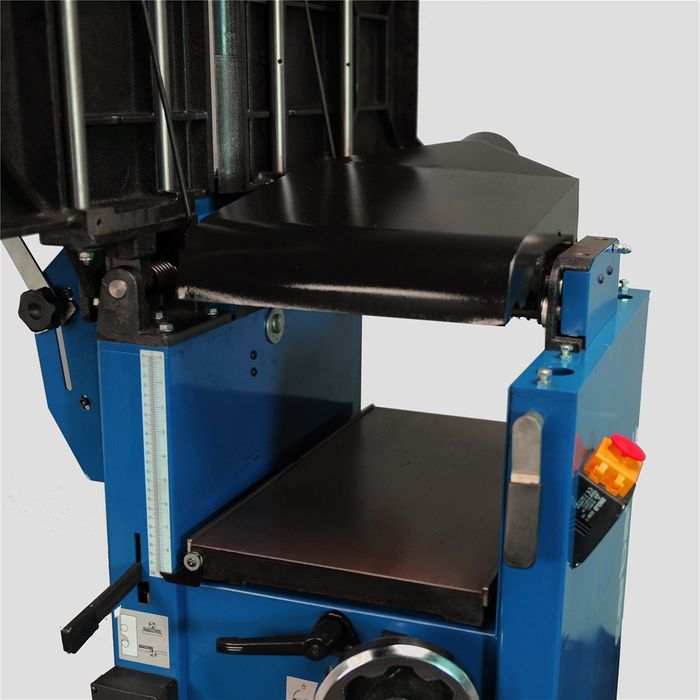

Where space is an issue, these combination machines come into their own. They have a compact footprint, but have the same build quality as dedicated stand alone machinery. Featuring a single lift top, this machine differs from many others as no partial disassembly, fence removal etc, are required to change from one mode, to the other. Unlock - Lift - Flip and Go! The top also lift up from the front, so access to the rear of the machine is not required (another important point in a compact workshop).
Features and Benefits;
* 250mm wide Jointing and thicknessing capacity
* 230mm deep thicknessing capacity

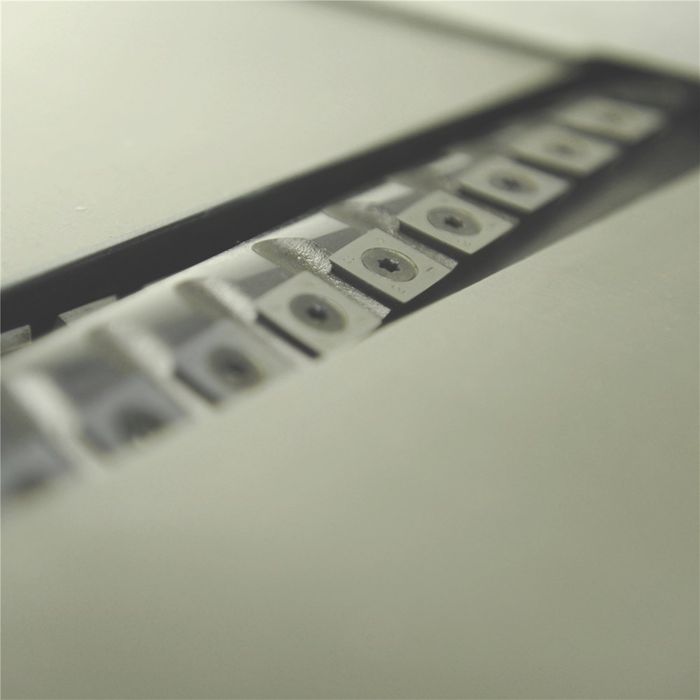

* True Helical Cutterhead for cleaner cuts and smoother finish
* One piece flip up top for quick changes from Jointer to Thicknesser modes
* Adjustable aluminium tilting jointer fence
* Electrically interlocked & intrusion limited dust guard for safety
* Standard NVR switchgear
* Machine ground cast iron components
* Euro Bridge Guard on jointer
* Rear fence cutterhead guarding
* Lockable thicknesser table
* Digital readout on in thicknesser mode.
* Serrated infeed / rubber out feed rollers
* Full width anti-kickback pawls.
Specifications;
Brand Carbatec
Warranty 3 Years
Motor 2.2kW (3.0HP) Induction, 15A plug
Switch Type Magnetic Switch NVR
Blade Guard Bridge Guard
Cutterhead Helical
Dust Port 100mm (4")
Fence Tilt 0° / 45° (adjustable)
Maximum Cutting Width 250mm
Maximum Depth Of Cut Max 3.0mm (narrow cut) - 1.0mm recommended
Planing Depth 230mm Max
NOTE:
1. NZ machines are sold with Bridge Guards.
2. The overhand planing function of this machine is commonly called a jointer as it is for creating straight and square edges for joints between boards. This overhand operation has also been called a "Buzzer" due to the noise made by straight knife machines. Many people refer to these machines where timber travels over the top of the cutter as Buzzers.
