Trend Router Surfacing Jig

Stock Code:
TRD-RS-JIG
Price:
$459.00 inc GST

Description

Trend Code: RS/JIG

Adaptable compact jig for flattening, surfacing and trenching work on wide or irregular shaped material

IDEAL FOR WIDER MATERIALS
- Surfaces and flattens stock up to 400mm wide
END GRAIN ROUTING
- Routing cut across the surface of end grain for clean finish
CONTROLLED CUTTING
- Depth of cut can be easily controlled with the router plunge for fine skimming cuts or deeper levelling cuts
BI-DIRECTIONAL CUTTING
- Can be used across or along the grain
HPL MATERIAL
- High Pressure Laminate running rails and router cradle for wear-free performance, accuracy and durability
TWIN 12MM STAINLESS STEEL RAILS
- Supports heavier routers up to 7Kg weight without distortion
FIXED POSITION CRADLE
- Cradle can be locked to the bars for single axis movement such as trenching cuts

Rails
Length : 511 mm
Width : 50 mm
Thickness : 12 mm

Steel bars
Length: 511mm
Thickness: 12mm
Router base plate bore : 30 mm
Max. router weight : 7 kg

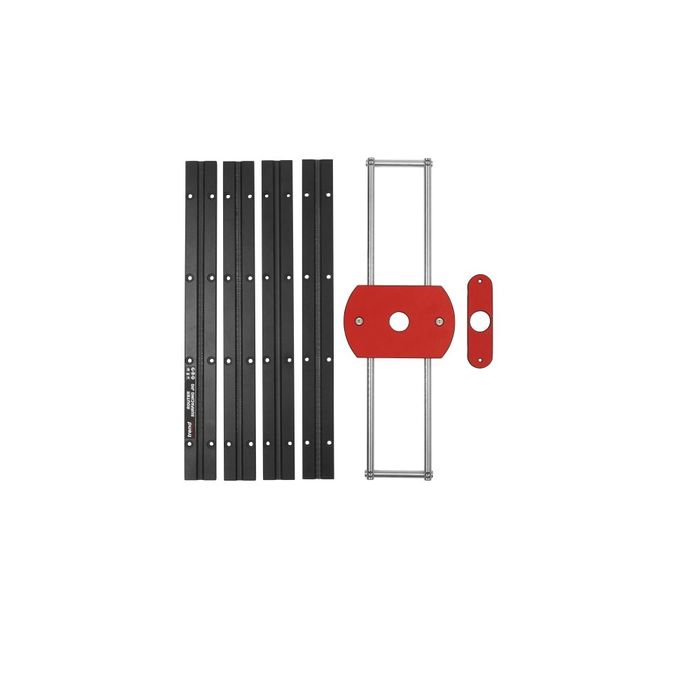

This product includes:
4 x Rails
2 x Steel bars
1 x Router base plate
16 x Fixing screws
