Nova Viking 16 inch Drill Press - Floor Stand

Description

Teknatool Code 83709

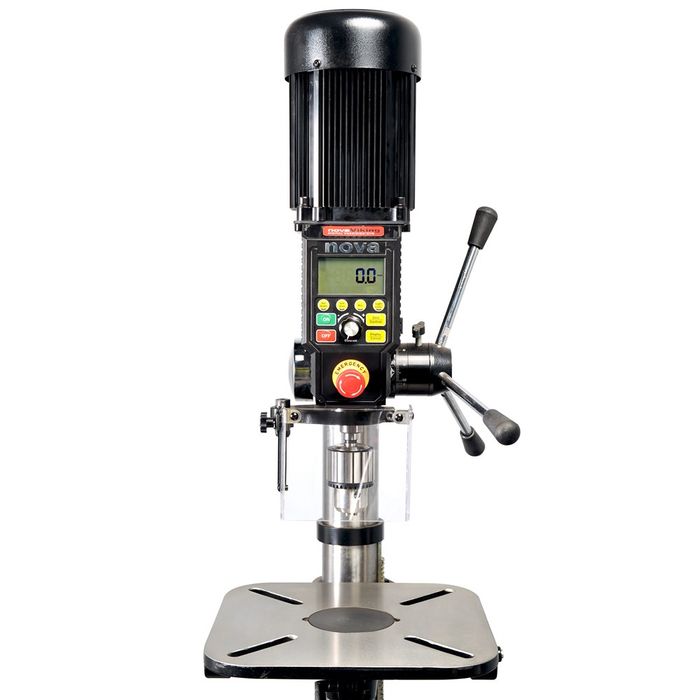

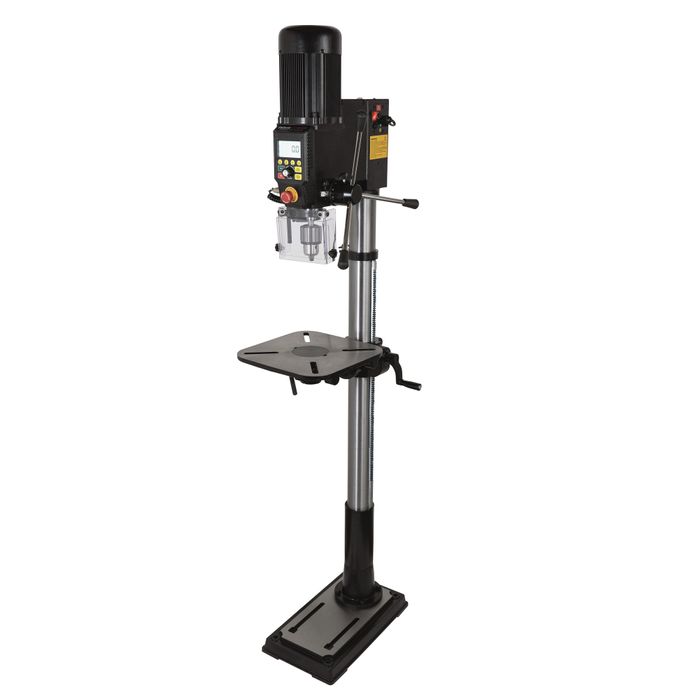

Nova Viking 16" DVR Floor Standing Drill Press

Introducing the latest release from Nova’s innovative DVR line-up, the Nova Viking! This new heavy duty model brings DVR technology in a drill press to any workshop, with a lower price point than ever before.

This is one of the most sophisticated drill presses on the market, but if all you want to do is turn on your drill press and drill some simple accurate holes - well, that's easy. This unit functions just like your old drill press! You'll appreciate the power and smooth operation without needing to know all the fancy back end detail. For those interested in the fancy back end detail, read on...

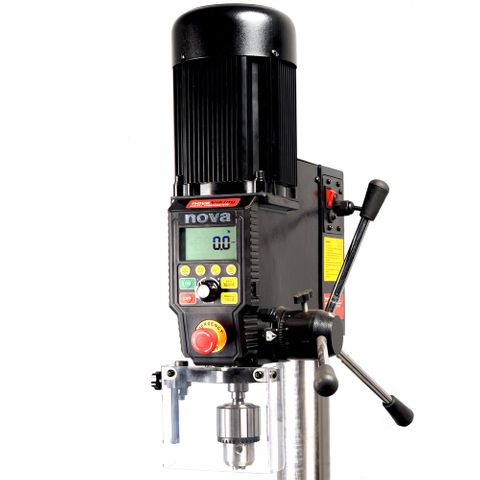

The engineers at Nova have designed this model from the ground up around a newly developed 1HP DVR Direct Drive Motor. The direct drive DVR technology means there are no belts or pulleys to change on the Viking, which reduces vibration in operation along with the loss in transfer of power usually found on belt driven systems. The combination of the Hi-Torque DVR motor and Nova's Smart Electronic control system auto adjusts torque and speed in use, to ensure a consistent drilling operation as set - irrespective of loading!

Variable speed is available electronically at the turn of a dial, from 100 to 3000rpm as factory set. However this top speed can be increased to 6000 following a procedure in the manual. Super fast, these upper speeds are perfectly suited to precision drilling into cast iron, steel, aluminium, copper or even glass & tiles - making this unit a true cross over drill press. The speed dial is exponentially graduated to vary in steps depending on the speed range you are in, while a simple push and twist of the two-step dial provides a smaller step graduation should you really want to hone in on your preferred speed.

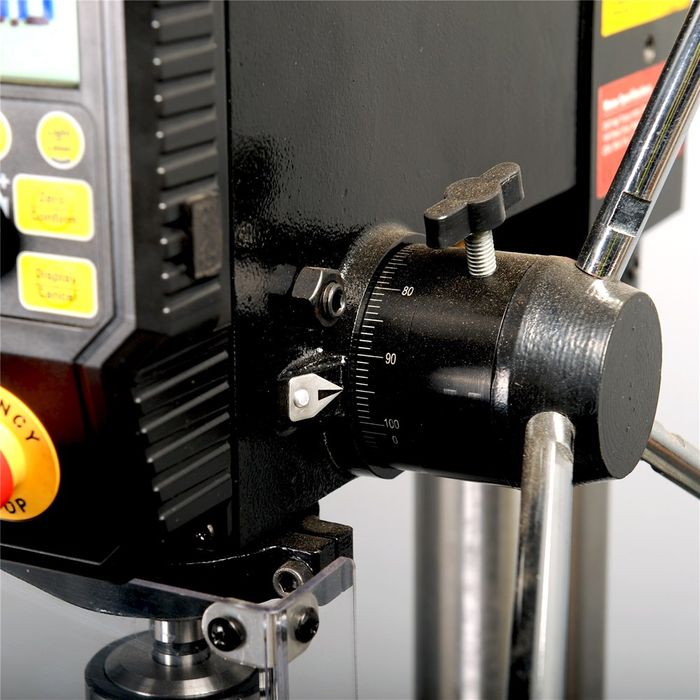

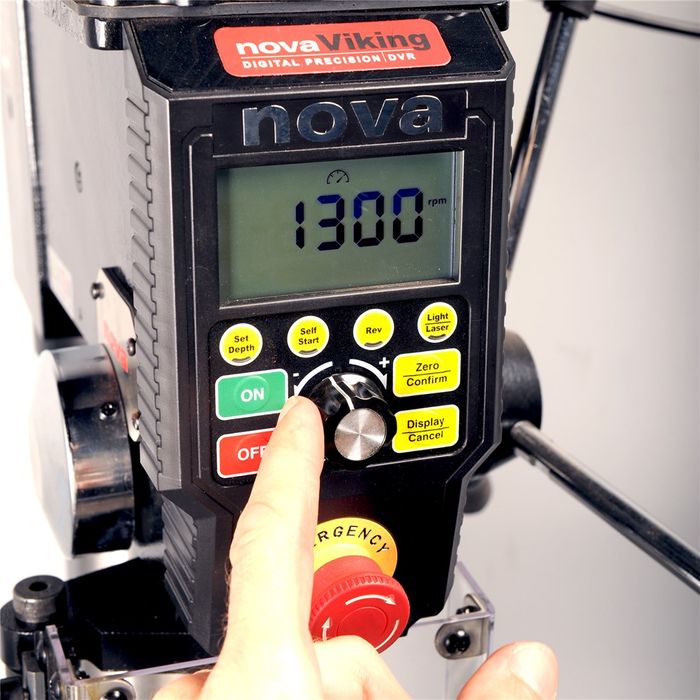

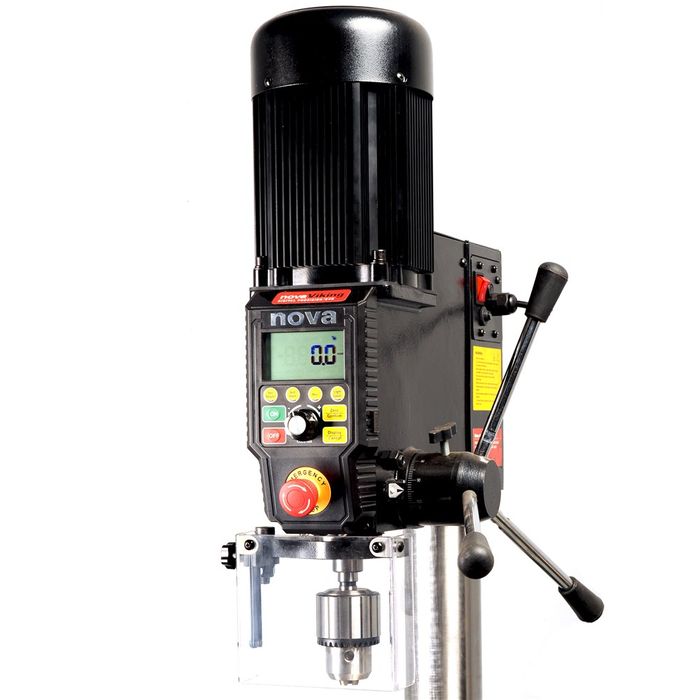

A large easy-to-read backlit screen provides simple push button control over a number of unique Nova Smart features. Digital depth setting allows you to set a desired drilling depth where the unit will automatically stop and reverse when it reaches the setting. Along with this, the unit provides a visual cue to nearing your desired depth and an audible one! Altogether, these cues help you avoid overshooting your mark, while the auto-reversing chuck clears the hole of waste efficiently as you back out. If you want a hard stop limit, Nova have included this too in a traditional style but easy to use depth stop on the hand feed.

Already familiar with the bigger Nova Voyager? Then you'll know about the digital depth setting above, along with the unique self-start ability which is also featured on the Viking. Switch this on and you need not hit the start and stop button every time you drill a hole - particularly useful for repeat drilling jobs. The drill will automatically start when you rotate the handle down to a depth of about 6mm (safe clearance height above your workpiece), as well as stop when you release it back to zero.

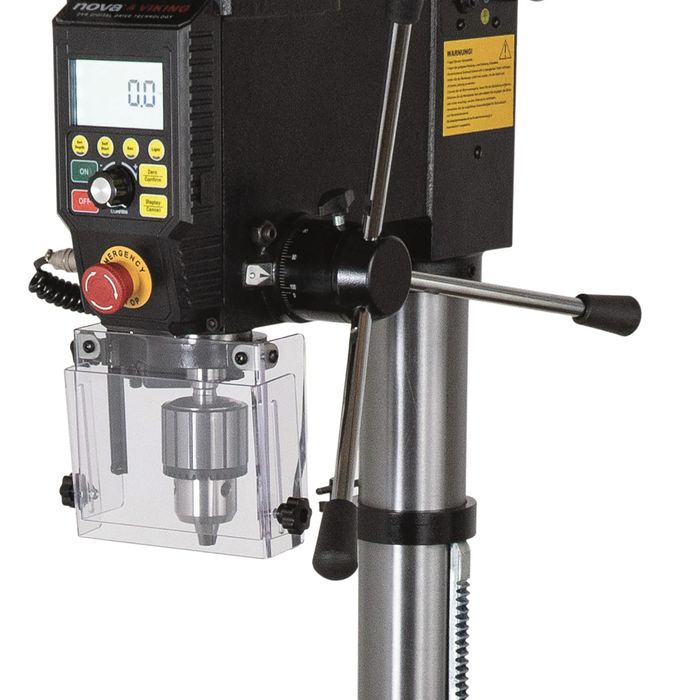

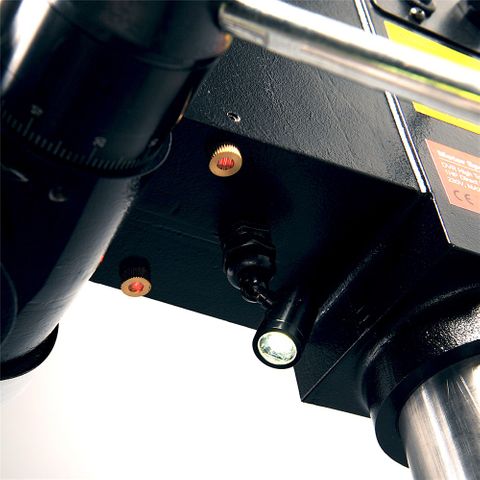

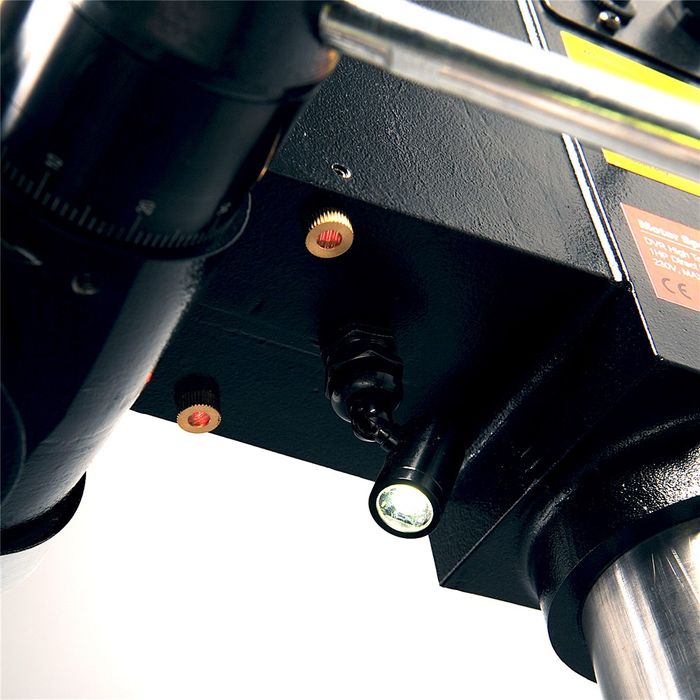

You also have forward or reverse rotation options and a large backlit readout that accurately displays your drilling depth, or RPM, or torque/power! As if all this wasn't enough, Nova have decked this heavy duty benchtop drill press out with twin lasers (X-cross style) and an adjustable LED light. At the push of a button, you can cycle through just LED lighting, light and laser, just laser or neither! The LED is adjustable in position, while the lasers can be recalibrated if required. The guard is large and clear and features a micro-switch for additional safety. This is particularly useful in schools or similar siutations where users may wish to ensure the guard is in place during use. It can however, be circumvented for those home users that prefer no guard. An E-stop completes the package and unlike other E-Stops on regular drill presses, due to the DVR motor and technology, this one will lock stop the spindle immediately.

This drill press should appeal to anyone needing accurate drilling in their workshop! It’s more compact form is both heavy duty, yet small enough for the most modest work space. The direct drive motor coupled with speeds up to 6000 rpm make this a true cross-over machine equally capable of accurate metal or timber drilling. This is truly an extremely versatile and capable bench mounted drill press.
There is no comparable drill press in the market. The unique feature rich combination of DVR and Smart Electronics puts this unit is in a league of its own, light years ahead of competition setting a completely new benchmark.

Nova back this unit with a 2 year warranty on the motor and electronics, 5 years on the body.

Product Specifications;
Brand Nova
Warranty 2 years Motor/Electronics; 5 years on the body
Motor 1hp DVR Hi-Torque Direct Drive (10 amp)
Spindle to Base 50 1/2" (1283mm)
Spindle to Table Max 30 2/5" (772mm)
Column Diameter 3" (75mm)
Drill Chuck Capacity 5/8" (1-16mm)
Speed 100-6000rpm Electronic Variable with Readout
Spindle Size MT2
Stroke 4.5" (114mm)
Table Size 12 1/2" x 12 1/2" (320mm x 320mm)
Table Tilt -45° L to +45° R
Throat 16" Swing (406mm)

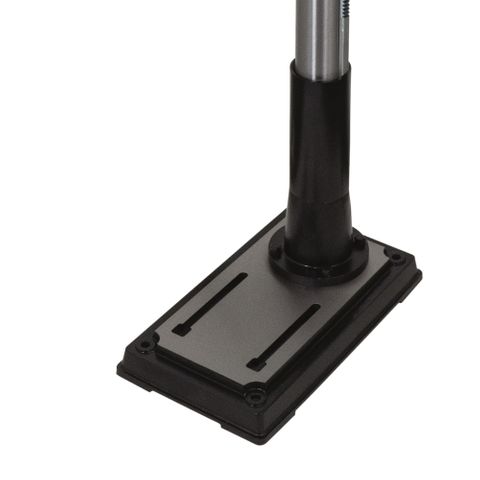

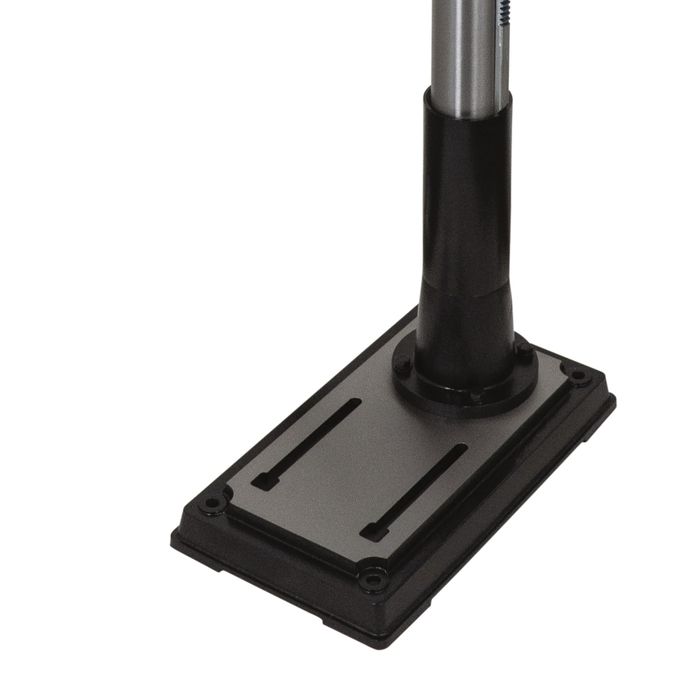

Base size 18 1/2" x 10 2/3" (470mm x 270mm)
Total height 1820mm
