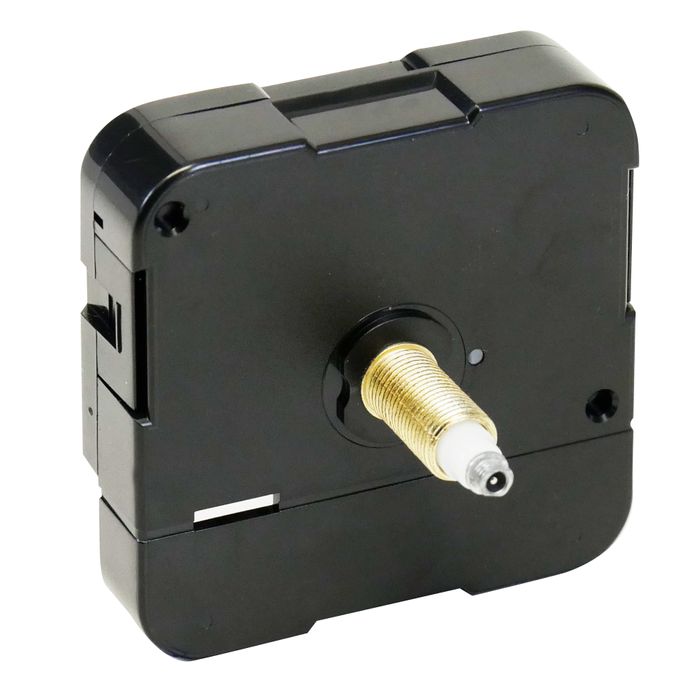

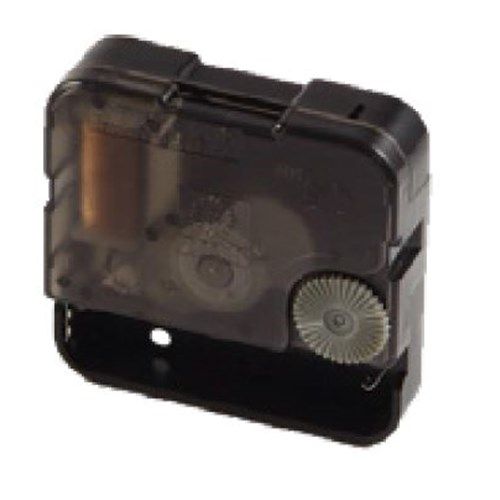

Continuous Sweep Movement - suit dials up to 1/2" (13mm) thick

Stock Code:

CLK-CS14

Price:

$24.50 inc GST

Description

These movements have a second hand that moves in a smooth continuous motion, rather than the stepping motion of most quartz movements.

This change not only affects the appearance of the clocks you make, but continuous sweep movements also have the added benefit of being more quiet.

You will not hear the "clicking" sound every second.

Please do not assume that any clock hands will fit, as the mounting holes are not standardized.

These continuous sweep movements will operate a second hand, but second hands are considered optional.

All models have a 5/16" (7.94mm) shaft diameter so a 3/8" (9.53m) mounting hole is the correct size to drill in your case.

Specifications;

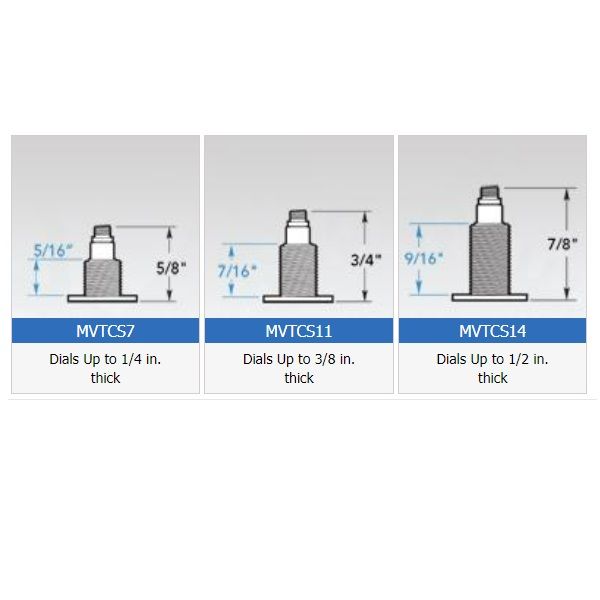

Length of threaded section of the spindle is 9/16 inch or 14.29mm
For use on a board up to 1/2 inch or 12.7mm thick
Total length of spindle is 7/8 inch or 22.23mm
The shaft diameter is 5/16 inch (7.94mm) so use a 9mm or 3/8 inch drill.

Operates on an AA battery.
