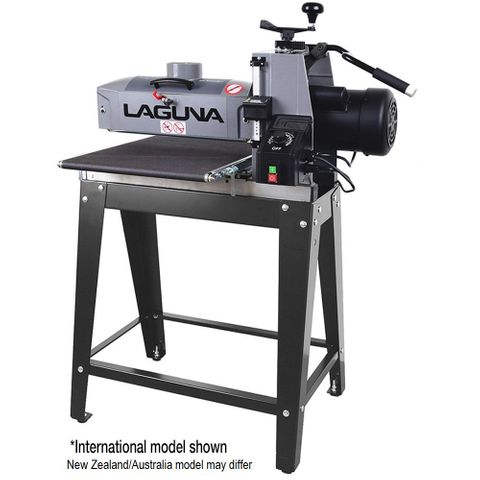

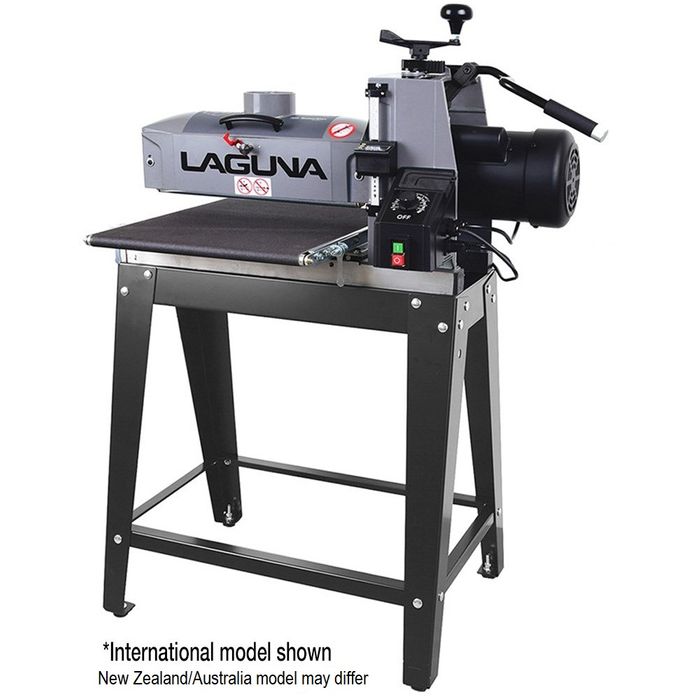

Laguna SuperMax 16/32 Wide Drum Sander CE Model

Stock Code:
LGT-WDS-1632
Price:
$3,849.00 inc GST

Description

Laguna Supermax 16/32 Wide Drum Sander CE Model*

The designers of the Supermax 16-32 Drum Sander from Laguna, addressed issues common with other drum sanders by engineering exclusive features. No other drum sander on the market has these features!

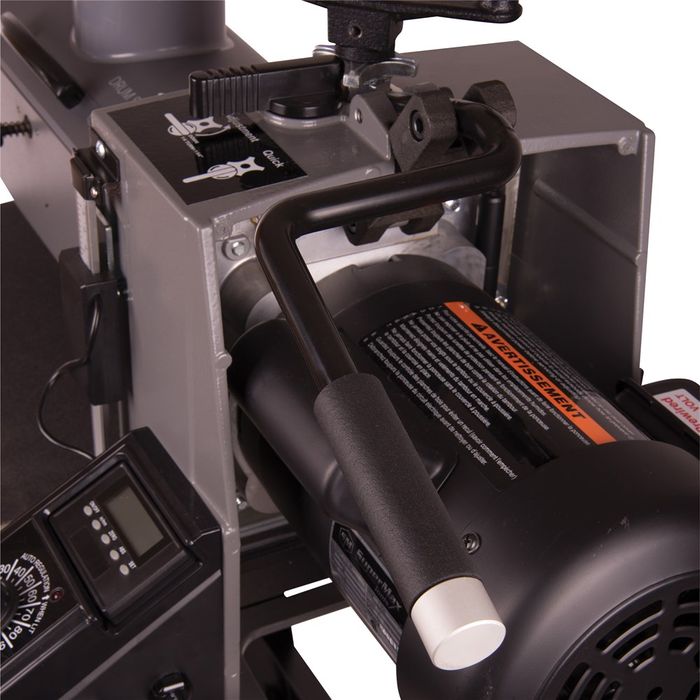

Patented Quick Adjust Lever design allows full height adjustments, with one pull of a lever versus 48 revolutions of a hand wheel, greatly reducing set-up time and increasing productivity.

Built-in Wixey Digital Read Out helps maintain consistent thicknesses to increase accuracy and output quality.

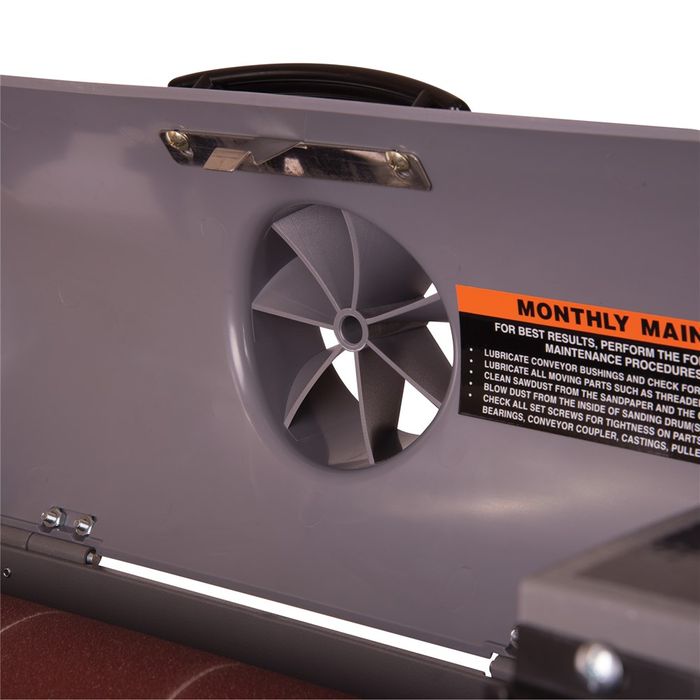

A newly designed Turbo Vented Dust Port increases air-flow to dust collectors by 15%.

Simple Adjustment Feature: Just one nut adjusts the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head quick and easy.

Flawless Wide Sanding: When sanding stock wider than 405mm (16”) and making 2 passes, the index lever will properly adjust the conveyor to give a seamless finish.

The drum will always keep Perfect Alignment. The drum carriage is bolted to the base, preventing any movement or alignment issues.

INTELLISAND Technology automatically adjusts the feed speed under load, to provide consistent finish even with varying grain pattern and density.

Supplied with floor stand and 1 x 80G wrap.

NB: The nature of wide drum sanders makes use of dust extraction a mandatory requirement. Minimum 600CFM dust extractor recommended.

Specifications;
Brand Laguna
Warranty 2 Years
Motor 1100w (1.5hp)
Drum Diameter 127mm (5") (x 405mm (16"))
Drum Speed 1400 rpm
Dust Port 100mm (4")
Gross Weight 80kg
Minimum Stock Thickness 0.8mm (1/32")
Maximum Stock Thickness 75mm (3")

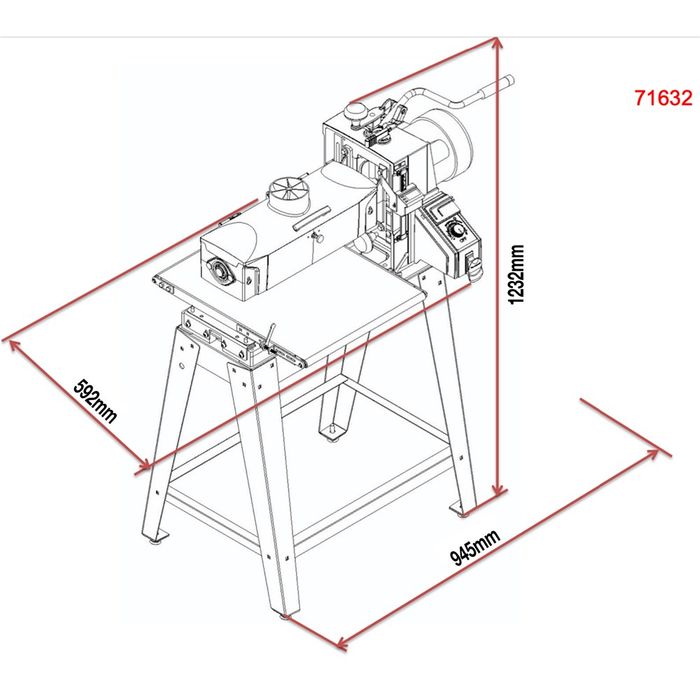

Workshop Footprint (WxDxH) 860mm x 560mm x 1220mm
Feed Rate 0-3 m/min (0 - 10 fpm)
Shipping 940mm x 660mm x 550mm
Nett Weight 72kg
Conveyor motor 40w (1/20hp)
Maximum width 405mm (16") / 810mm (32")

  • Auckland
    Sorry, not in stock. Please contact us to backorder
  • Christchurch
    Sorry, not in stock. Please contact us to backorder
Unavailable for Online Purchase from currently selected store
