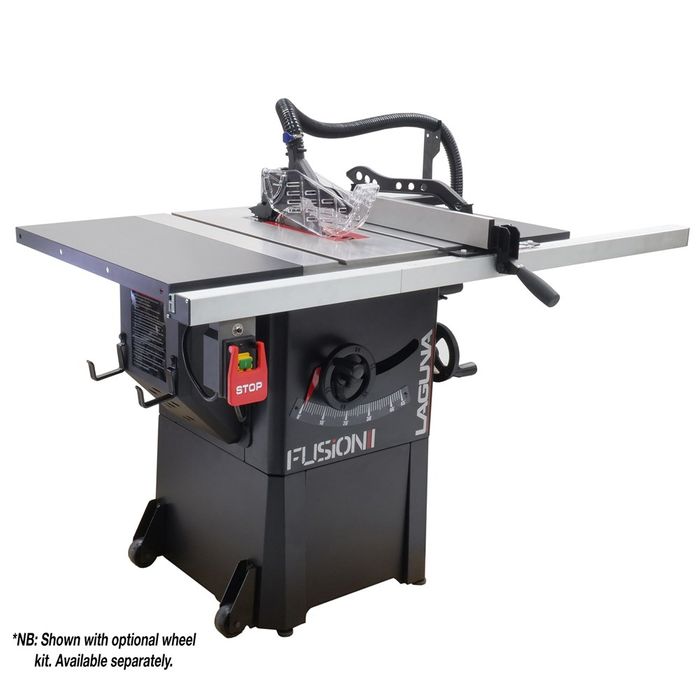

Laguna 2020 Fusion 1 F1 Table Saw

Stock Code:
LGT-FUSION1
Price:
$2,599.00 inc GST

Description

Fusion 1 Tablesaw

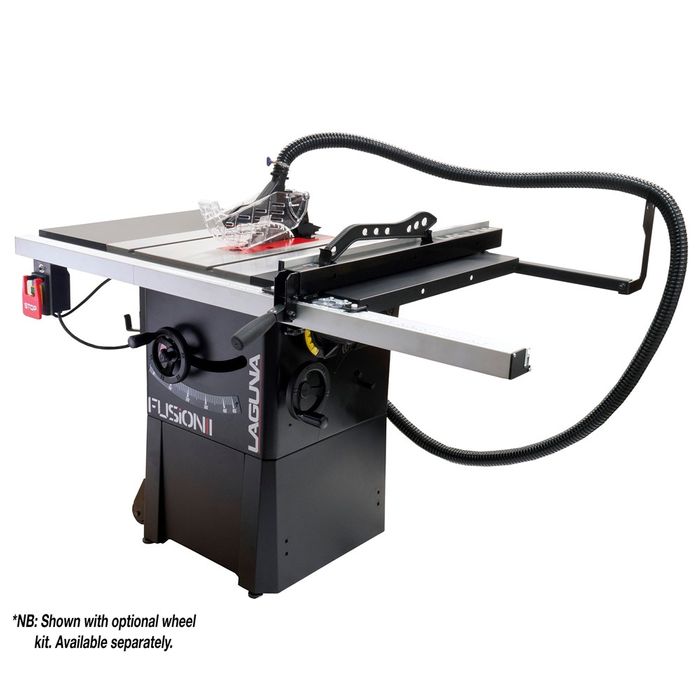

The 2020 Laguna Fusion 1 Table Saw represents excellent value for money. It is a high quality, fully featured entry model cabinet saw that is perfectly suited for the home hobby user.

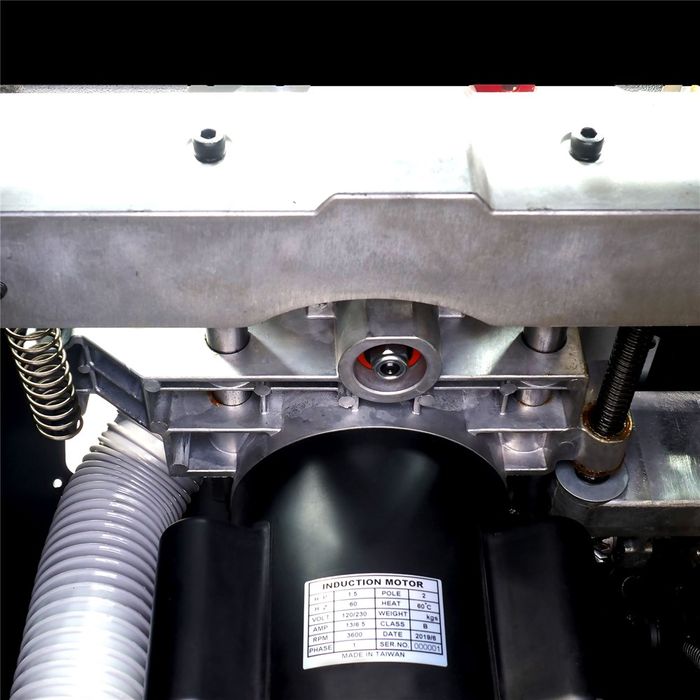

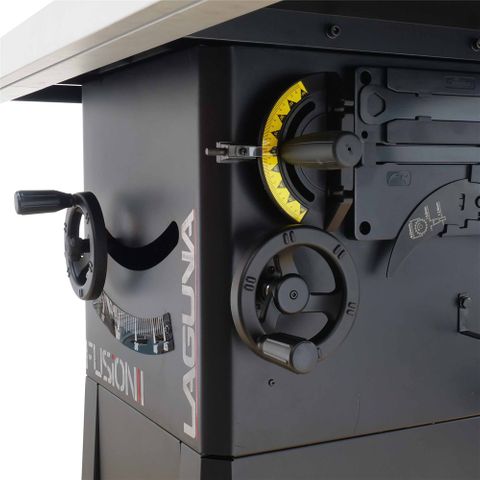

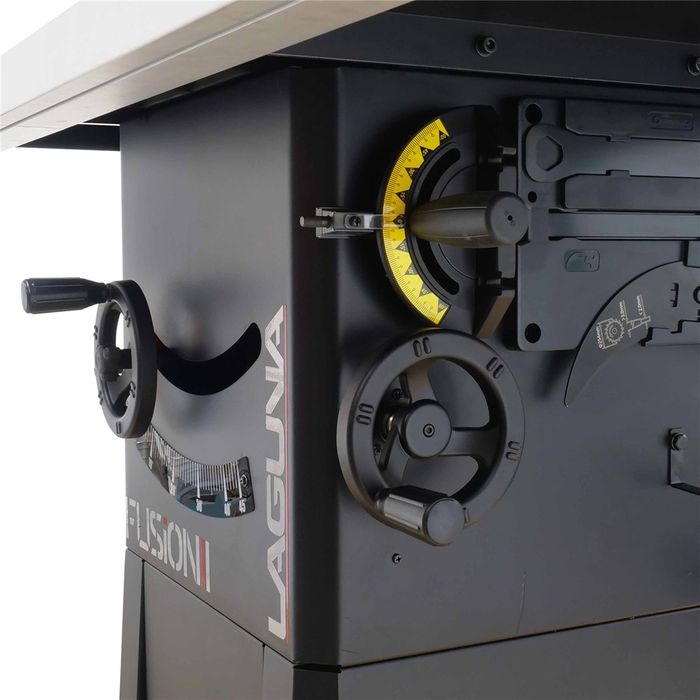

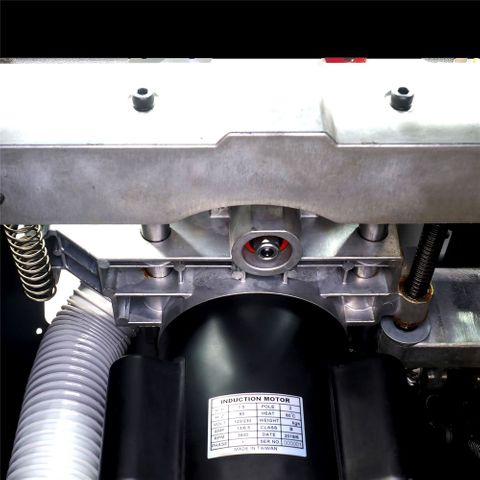

With completely redesigned trunnion and arbor controls that provide buttery smooth control and longevity of the saw, we are sure this is the Tablesaw that will give you the perfect rip cut for many, many years.

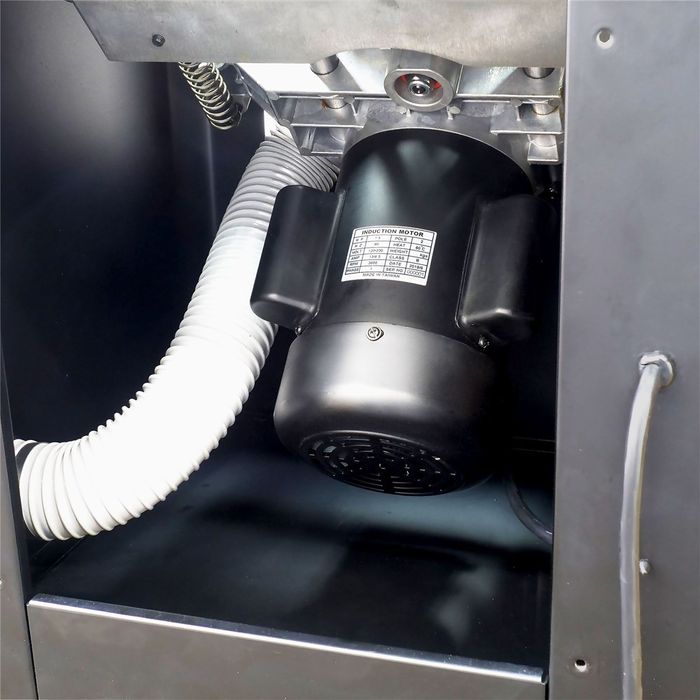

The Fusion 1 Tablesaw features a 1.5HP (standard 10amp plug) motor with premium bearings and arbor, housed inside a split two-part hybrid cabinet with sealed bottom for better dust collection. The main table consists of polished precision-ground cast iron, while the extension wings are made from a powder coated steel.

Laguna's Fusion dust system is a standard feature, as are the T-Style fence and 30" rails.

The 10" 40 Tooth TCT combination blade included will cut 79mm (3-1/8") at 90 and 54mm (2-1/8") at 45 degrees.

The body houses the Mitre Gauge, Fence and Riving Knife when not in use, keeping all of your equipment together and accessible.

Features

* Laguna Fusion 1 (F1) 2020 Model Table Saw
* Premium 1.5HP motor
* 254mm (10") blade diameter
* 15.875mm (5/8") arbor

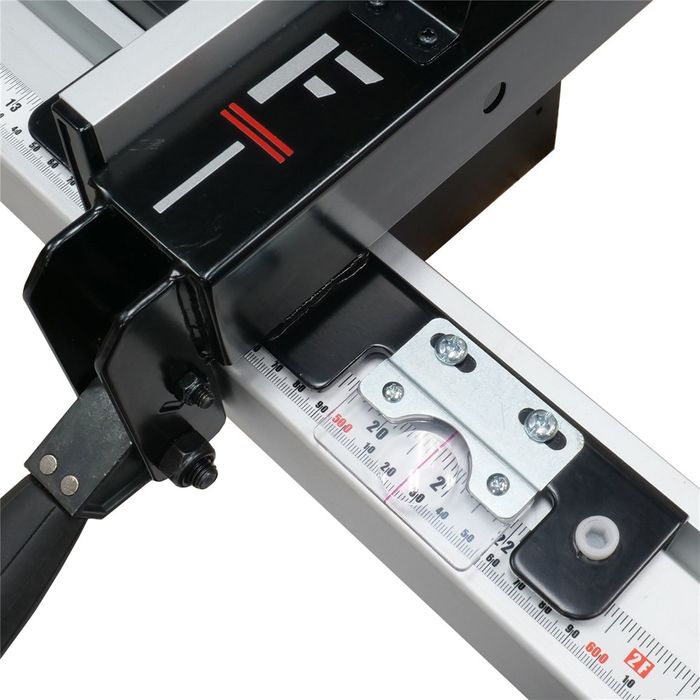

* 30" Rails with Alloy Face T-Style Fence
* 40 Tooth TCT Blade included
* Dado Compatible (to 3/4")
* Mobility (wheel kit) NOT included - optional extra


Specifications

Brand Laguna
Warranty 2 Years
Motor 1.1kW (1.5HP) Induction, 10A plug
Blade Diameter 254mm (10")
Arbor Diameter 15.875mm (5/8")

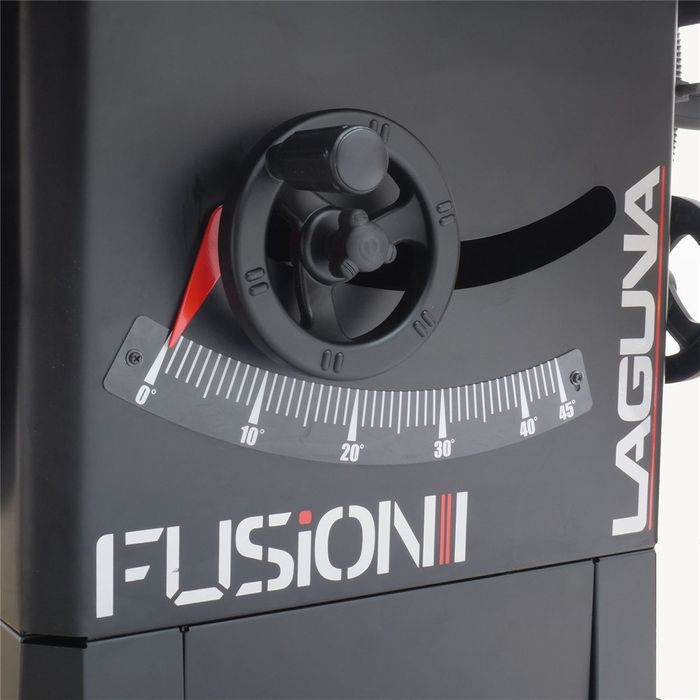

Blade Tilt 0-45° Left, 3° Right
Dado Capable Yes to 3/4" (19mm)
Dust Port/s 1 x 100mm (4")
Maximum Rip Capacity 787mm (31")
Workshop Footprint 1473 x 945mm (58" x 37-7/32") (WxD)
Fence Style T-Style with 62mm Tall Aluminium Face
Shipping 1080 x 690 x 650mm
Nett Weight 89kg


Understanding your machines Dust extraction requirements
All woodworking machines require effective Dust extraction to ensure quality work and longevity of the machine itself. Failure to connect your machine to a suitable dust collector may affect your warranty. The collector required for your machine will depend on several factors. Please FOLLOW THIS LINK and read our guidelines on selection of a suitable dust collector.
