Laguna 2021 Updated Fusion 3 F3 Table Saw

Description

Fusion3 Tablesaw

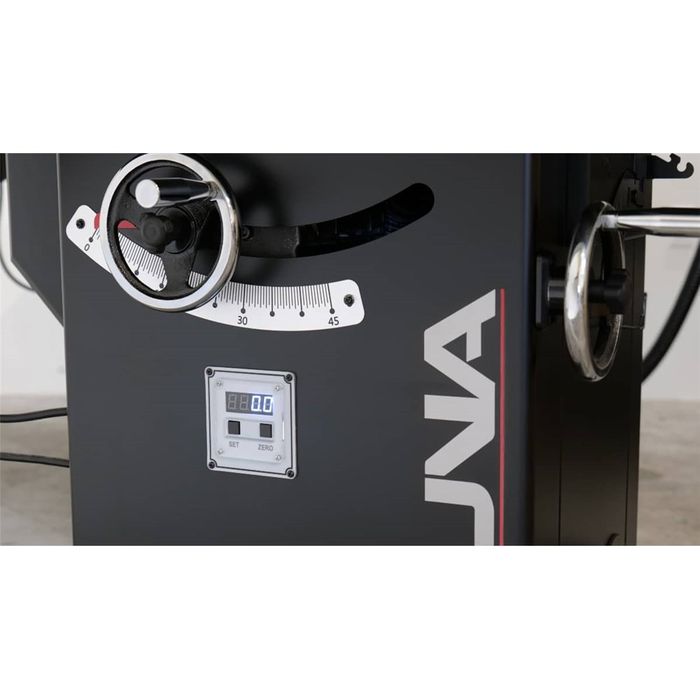

2021 UPDATE: Now includes a Digital Angle Readout and Dual Hairline Magnifier on the Fence, for High/Low cutting accuracy

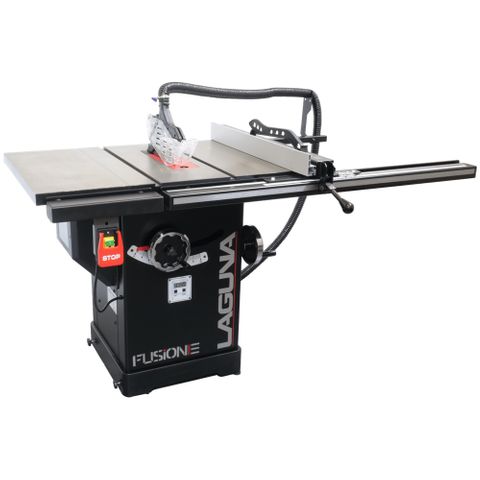

A classic US style cabinet mounted table saw which will not only impress, but exceed your expectations.

The first thing that will catch your eye is the large precision ground mirror finished tabletop which allows excellent work piece support. This is complemented by mirror ground cast iron wings, a table/fence extension wing insert and an outfeed table - supplied as standard features!

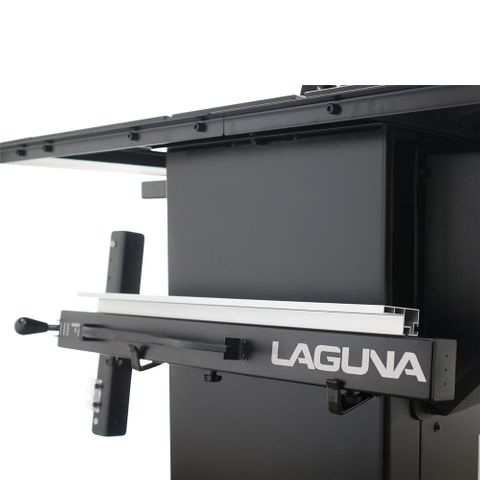

The classic 'T Style' rip fence sits atop heavy duty powder coated steel rails, is exceptionally smooth moving and rock solid when locked and a pleasure to use with an easy cam lock handle that will guarantee accurate cuts. The Hi-Lo fence design allows narrow cuts even in thin material, while the measuring scale is marked in both metric and inches for convenience.

The substantial professional 'zero clearance' throat plate is suitable for all blade angles and is supplied as standard. It has fine adjustment grub screws to precisely line up to the table surface and is also easy to remove.

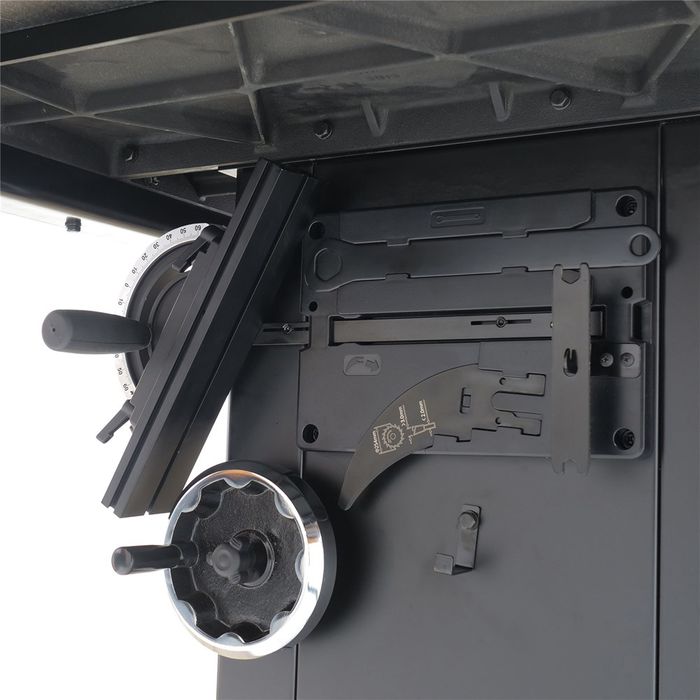

The cast polished hand wheels control the arbor, so that the rise, fall and tilt have a lovely, buttery smooth, blade movement, courtesy of a 2:1 ratio gear box.

The heart of the saw is the powerful motor which is mounted onto the powder coated one-piece cabinet base via solid cast iron trunnions. This mounting method ensures the table top is left unstressed by the motor weight and ensures a perfectly flat working surface.

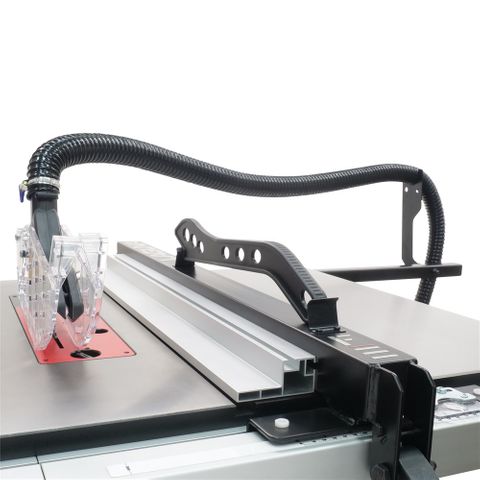

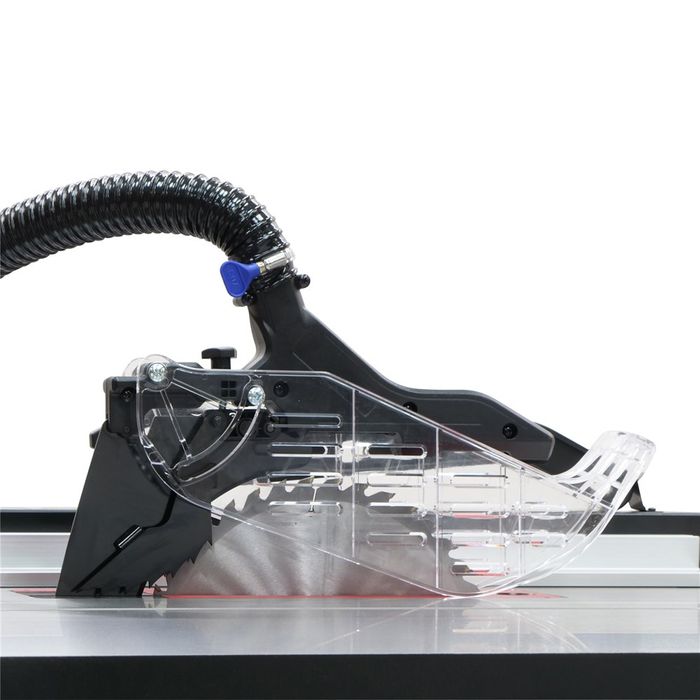

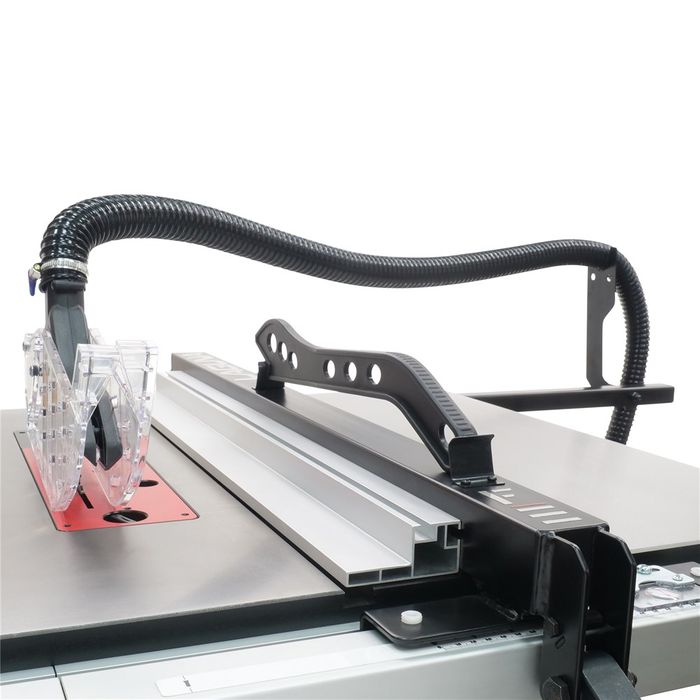

Dust extraction is a crucial part of any machine for operator safety and machine longevity. On the Fusion3 table saw dust extraction is optimised via a crown guard hose in conjunction with the interior blade shroud - dust is then collected from a single side port.

The standard equipment also includes: A wheel kit integrated within the base; on-board storage points for all the accessories; mitre fence that is hyper accurate when travelling in the T slots; 40 tooth TCT sawblade; quick release riving knife with anti-kickback pawls as well as a separate low profile riving knife and a 1.8m power cable with 15amp plug.

The ultimate heavy-duty, powerful traditional cabinet saw.

Outfeed table included. See images.

Features

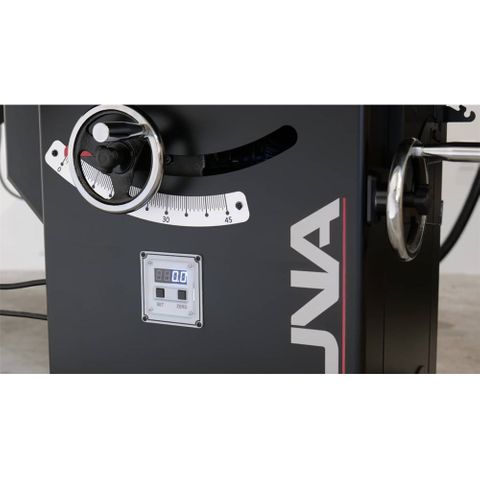

* 2021 Update: New Digital Readout now standard!

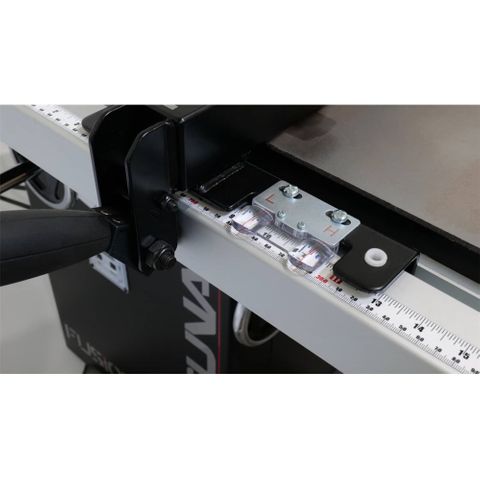

* 2021 Update: Dual Hairline Indicator for High/Low Fence
* Powerful 3HP motor (requires 15amp plug outlet)
* 36" Heavy Duty Steel Rails
* Hi/Lo T-Glide Style Fence Standard
* 254mm (10") Blade Diameter

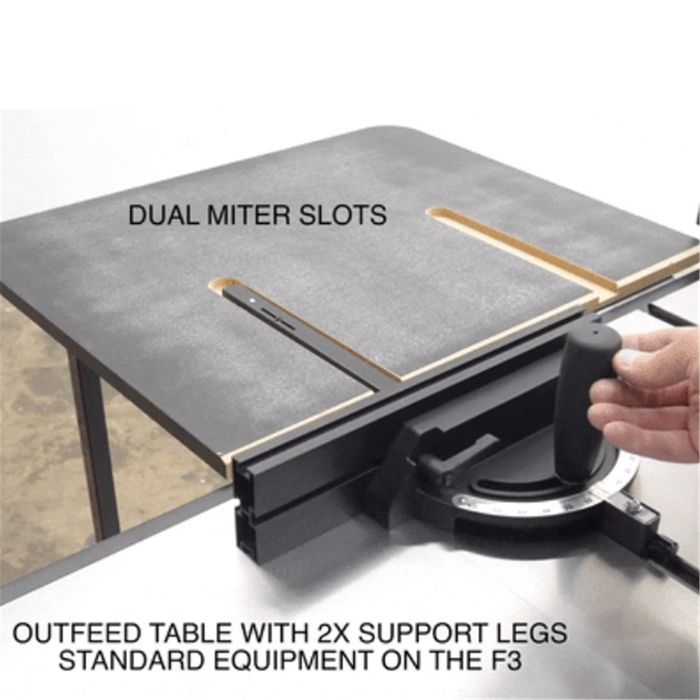

* Includes dual slotted outfeed table & support legs
* Zero Clearance Insert standard
* In-built Mobility/Castors
* 40 Tooth TCT Combination Blade included
* Dado compatible (to 3/4")

Specifications

Brand Laguna
Warranty 2 Years
Motor 2200w (3hp) 15 amp plug outlet required
Blade Diameter 254mm (10")
Arbor Diameter 15.875mm (5/8")
Blade Tilt 0-45° Left, 3° Right
Dado Capable Yes to 3/4" (19mm)
Dust Port/s 1 x 100mm (4")
Gross Weight 210kg
Insert Zero Clearance
Maximum Rip Capacity 910mm (36") Right, 430mm (17") Left
Workshop Footprint (WxDxH) 1663mm x 1652mm x 1081mm
Fence Style Hi / Lo (80mm / 10mm)
Shipping 1450 x 760 x 1090 mm
Nett Weight 175kg
Mitre Track (2x) 19.05mm x 9.5mm (3/4" x 3/8")
Working Height 887mm (35")


Understanding your machines Dust extraction requirements
All woodworking machines require effective Dust extraction to ensure quality work and longevity of the machine itself. Failure to connect your machine to a suitable dust collector may affect your warranty. The collector required for your machine will depend on several factors. Please FOLLOW THIS LINK and read our guidelines on selection of a suitable dust collector.
