  • Sieg Quick Change Tool Post-to suit LATHE-C4 ***

Sieg Quick Change Tool Post-to suit LATHE-C4 ***

Stock Code:
SN-10168
Price:
$180.60 inc GST

Description

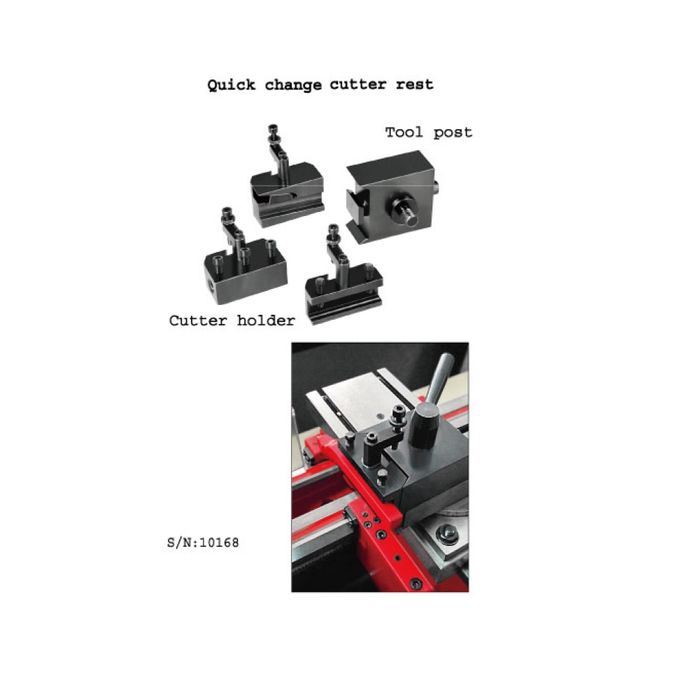

SC4 Quick Change Tool Post Set
For chisel shank up to 12 mm
Including 3 cutter holders

The quick change cutter set allows the use of turning tools with a shank cross section of up to 12 mm on the lathe SIEC C4 / SC4. The turning steels can be changed quickly, with the height-adjustable chisel holder, the turning chisel can be easily adjusted to the peak height without shims. Suitable for C4 / SC4 and similar machines with peak height 80 to 120 mm.

Standard replacement holder SIEG item no .: 10168
Head including 3 cutter holders for rectangular shaft. For lathe tools with rectangular shank up to 12 mm shank cross section.

Ideal for quick and easy clamping of turning tools. The troublesome underlayment of plates for adjusting the height of the peak is eliminated because the height of the tip can be adjusted quickly and easily by means of a set screw. Suitable for exterior and interior turning.

Dimensions of the Tool Post:
Length: 83 mm
Width: 60 mm
Height: 31 mm
bore diameter: 10 mm (for max. M10 Bolt)

Dimensions of Cutter Holder:
max. shank height: 15 mm
Measurements for cutting tools: 15x9 mm
Length: 60 mm
Width: 35 mm
with groove for holding round turning tools
Including adapter ring, height 8 mm, so that the chisel holder can be fixed with the original toggle screw. The attachment is simple by means of a hex nut.

Suitable for SIEG Lathe C4 / SC4 and similar lathes with tip height up to 105 mm.

  • Auckland
    Limited Stock
  • Christchurch
    Sorry, not in stock. Please contact us to backorder
