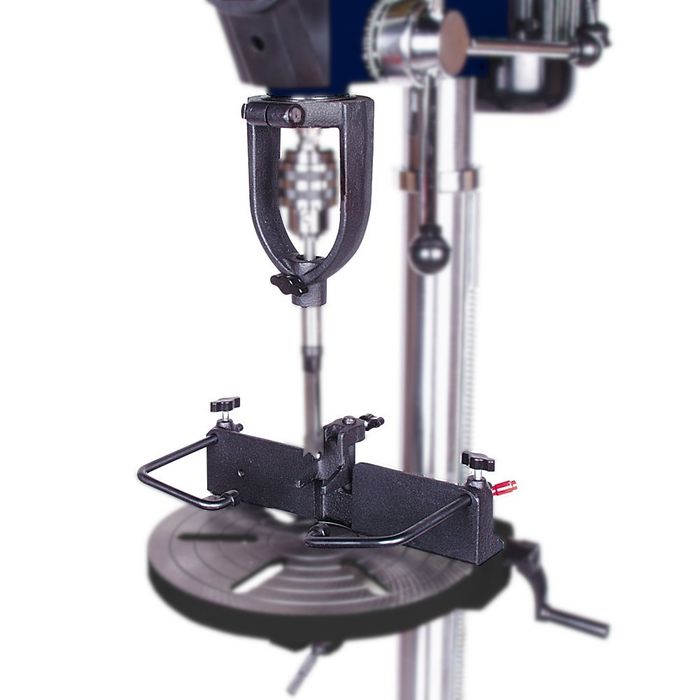

Carbatec Chisel Mortise Attachment for Drill Press

Stock Code:
MAS-2
Price:
$215.00 inc GST

Description

A DIY CHISEL MORTISE ATTACHMENT FOR DRILL PRESS (MAS-2)

Features & Benefits

* Create mortise and tenon joinery easily
* Use your drill press to drill square holes!
* Kit will suit many benchtop and pedestal drill presses
* Includes shims to suit the following quill diameter sizes: 40, 48, 55, 60 and 66mm
* It is possible to shim the above quill sizes down 1mm by use of a strip of say 80 grit sandpaper. For example; the 66mm size mentioned above could be reduced to 65mm.
* CHISELS NOT INCLUDED (available separately). Search "wmc" to find chisels

Description

Yes, a drill press can drill a square hole. Mortise and tenons have been used in woodwork for centuries, kit allows mortises to be cut quickly and easily to create this very strong joint.

A drill press and Chisel Mortise Kit drills square holes for mortise and tenon joints easily and quickly. The auger in the mortice chisels is positioned just below the tips of the chisel, and drills a hole with the square corners of the chisel then removed the rest of the timber creating a square hole.

To provide safety, the mortise kit comes with a clamping mechanism to securely hold the workpiece through the drilling process.

Individual chisels are available seperately

Weight 6.5kg.

NOTE:
Warranty does not cover breakage of cast iron collar due to overtightening.
This is a DIY setup. It does not replace using a proper Mortising Machine for commercial purposes.

Does not include chisel or drill press

Product Specifications

Brand Carbatec
