FLUSH AND V GROOVE BIT

Stock Code:
853-501-11
Price:
$79.00 inc GST

Description

An absolutely indispensable bit for making cabinets and joinery projects.

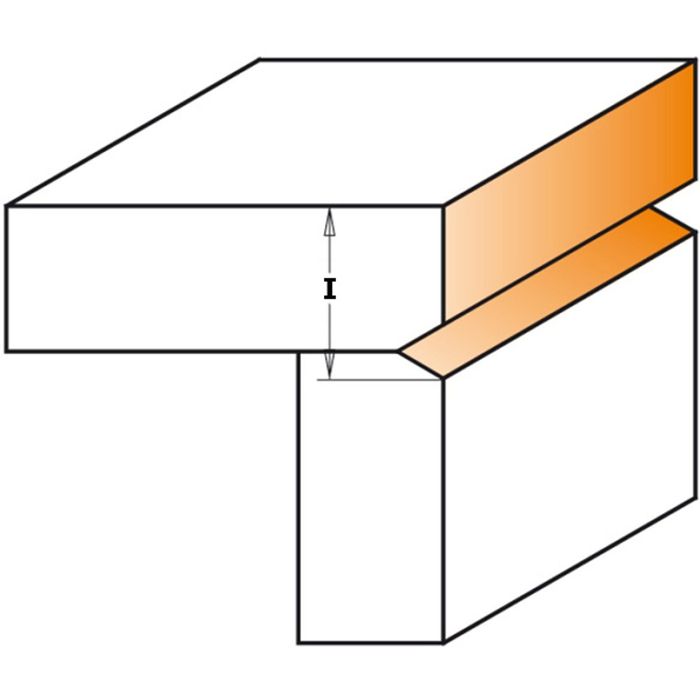

CMT Flush and V-Groove bits allow you to make cabinet front frames in 25mm (1") stock that fit perfectly with the sides. The added V-cutter feature makes a decorative groove along the hinge joint that hides the seam of the joint.

The 1/2" cut diameter is plenty to trim a few millimetres from the end or long grain, with the V-groove cutting in 3.2mm (1/8"), and narrow enough to hide the joint.

Shop tip: for best results, leave less than 3mm (1/8") overhang on cabinet front frames for easier routing.

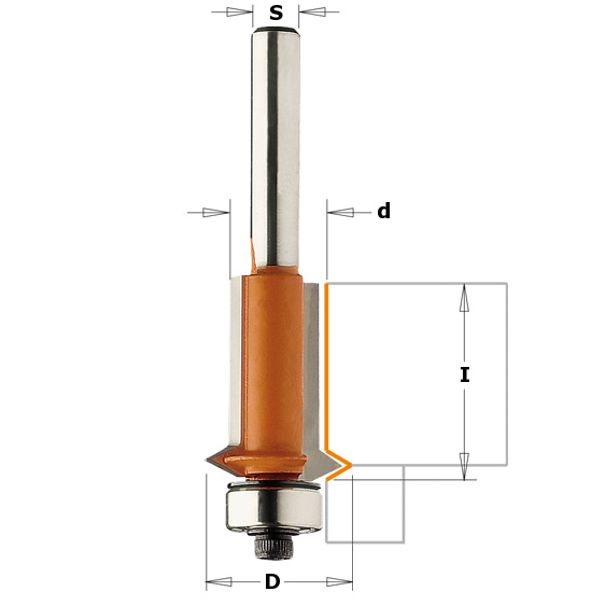

Specifications:

Brand CMT
Cut Length (I) 25.4mm
Shank Size 1/2"
Total Length 76.6mm
Shank Diameter 12.7mm (1/2")
Diameter (D) 19.05mm (3/4")
Bit Cut Depth 25.4mm (Cutting Length)
Bit Cut Diameter 19mm
Inside Diameter (d) 12.7 mm
