Carbatec EVS Mini Lathe
Description
This machine is our offering as an entry point into Electronic Variable Speed woodturning, but don't let that lead you to believe it lacks features! We've packed as much as we can into this model for it's price and it represents exceptionally good value.
While compact in size, this machine's capacity is larger than many other benchtop units offering a full 305mm (12") swing over the bed along with 530mm (21") between centres! That covers many craft projects from very decent size bowls and platters, to chair legs, while pens and pepper mills are well covered. Table legs are covered via an optional bed extension, should that be your cup of tea.

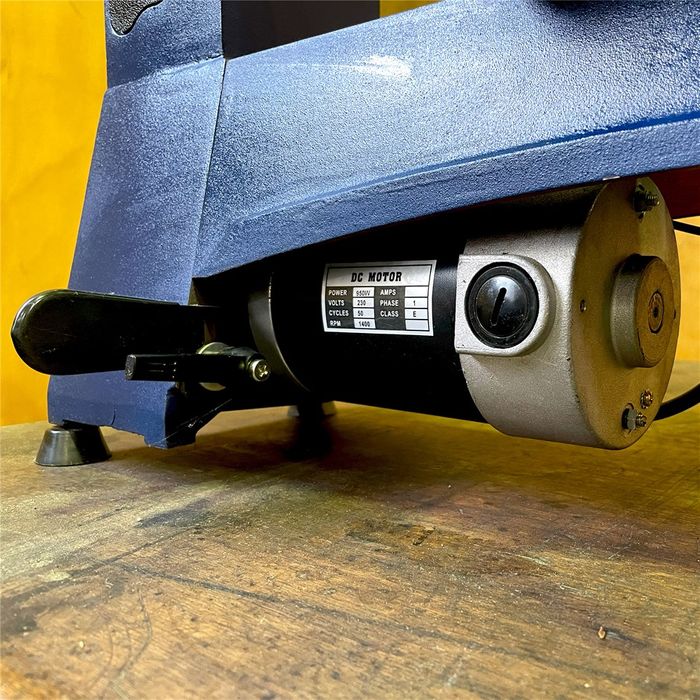

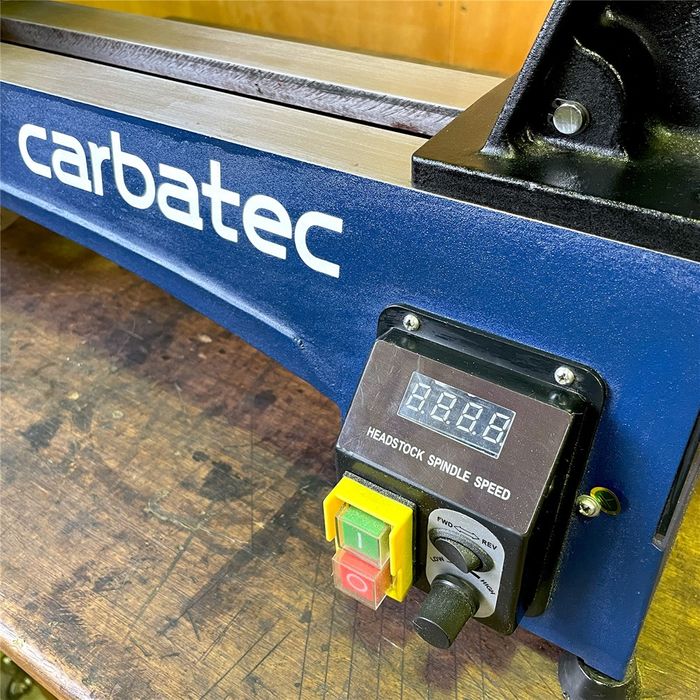

This capacity is paired with a 950W motor (1-1/4HP) - the largest of any machine in it's class! So you also have plenty of power behind you for whatever project you take on. That power is fed through an Electronic Variable Speed control with a Digital Readout, for easy referncing and changing the speed according to need. The EVS system delivers speeds of 250 to 3450RPM over two belt changes, which helps maintain torque at the lower speeds.

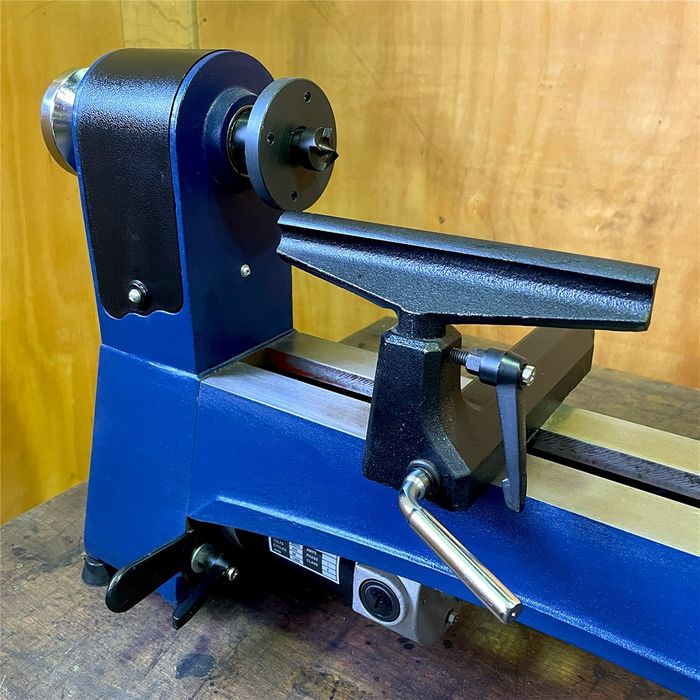

Other standard features include Forward and Reverse capability, MT2 fittings including a supplied Live Centre and Drive Centre, an 80mm Faceplate, 200mm tool rest and a centre knock out bar are all included.
We've utilised the most common spindle thread for benchtop lathes of 1" x 8TPI, so you're never lacking in ability to purchase accessories including chucks where this thread is well and truly serviced.
All in all, a feature rich, great value machine that is an excellent entry into woodturning, or upgrade for those currently using smaller or belt change bench lathes.
Proudly brought to you from a name you can trust when it comes to woodworking - Carbatec.
Accessories we recommend you may want to pick up with your lathe; A set of tools are a must! Try our Cryogenic or TCT sets found HERE. These represent very high quality for the price! To expand what you can do with your lathe, at some point you'll want to buy a four jaw self centring chuck. We recommend the Nova Pro-Tek Series.
Specifications;
Brand Carbatec
Warranty 1 Year
Motor 1-1/4HP (950W) Universal
Morse Taper MT2
Spindle Thread 1" x 8TPI
Swing Over Bed Capacity 305mm (12")
Variable Speed 250-3450RPM
Between Centers 530mm (21")
Weight 37kg Nett / 39kg Gross
Faceplate 80mm (~ 3")
Tool Rest 200mm (8")
Footprint 1010 x 300 x 410 mm (WxDxH)
