  • Routing Template MFS 400

Routing Template MFS 400

Stock Code:
FE-492610
Price:
$650.90 inc GST

Description

Features
Festool's MF multi routing template allows you to quickly and easily create different shaped cut outs and circles without the time consuming creation of temporary templates. The aluminium profiles can be adjusted in both a lengthways and cross direction, and placed anywhere on the work piece to start cutting. A millimetre scale is printed along each profile, allowing accurate adjustments, and by inserting the copying ring into the tilt protector, the router is kept securely in place, minimising risk of injury and increasing work quality. The securing groove for screw and lever clamps allows the template to be attached easily, and angle brackets can be fitted to help position the template.

Main Applications
Producing rectangular cut-outs
Producing round cut-outs
Quick corners and panel joins
Routing steps into their stringers

Time saving solutions
Replace temporary templates with a permanent, flexible system. The millimetre scale ensures fast and precise adjustments, and angle brackets can be fitted to help position accurately.

Extremely versatile
In combination with adjustable profiles, extensions and various accessories, the MFS system can be used for a wide range of tasks, from rectangular to round cut-outs. Compatible with OF 1010, 1400 and 2200 .routers with copying ring

Tilt protection
Inserting the copying ring into the tilt protector keeps the router securely in pace and minimises risk of injury while increasing working quality. Compatible with copying rings 24/27/30/40 mm in diameter.

Workshop template
The worktop template can be added to the MFS system for quick and precise corner and butt joining of bench tops up to 900 mm wide. For use with the OF 1400 and OF 2200 only.

Tech Specs
Radius (mm) 40 mm - 600 mm
Dimensions 300 mm x 100 mm

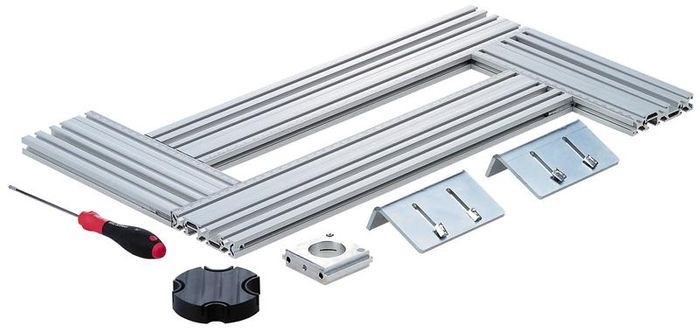

Includes
2 x Mitre Guides
Tilt Stop
Circle Routing Insert
Template

  • Auckland
    Usually ships in 3 days
  • Christchurch
    Usually ships in 3 days
