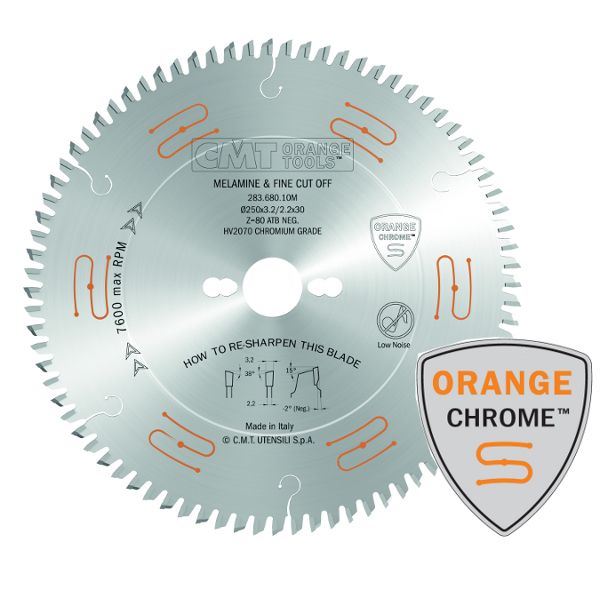

  • Mel/Fine C/Off 250mm 80Teeth 3.2Kerf

Mel/Fine C/Off 250mm 80Teeth 3.2Kerf

Stock Code:
283-680-10M
Price:
$259.00 inc GST

Description

The ultimate in finish blades! CMT puts a 40 degrees top tooth angle on its blades to provide flawless finishing on single and double laminates; melamine and hard & soft woods. This translates into absolutely minimal chipping on double-faced material. The melamine & fine cutoff blade is excellent on large mitre saws for complex angle cuts that require a high degree of accuracy.

Specifications:

Type of Grind = 38 Degrees ATB

Hook Angle = -2 degrees

Plate Thickness = 2.2 mm

Kerf Thickness = 3.2 mm

Number of Cutting Edges = 80

Pin Hole = COMBI3

Bore Diameter = 30 mm

Overall Diameter = 250 mm

TECHNICAL DETAILS OF CARBIDE TEETH:
-Teeth height mm: 8
-CHROMIUM ISO grade: KCR05
-Hardness (HV10): 2,150
-Rransverse rupture strength (N/mm2): 2,500

Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.
