Dado Set 200mm 24T 5/8in Bore 6.35-23mm

Stock Code:
230-524-08
Price:
$579.00 inc GST

Description

CMT Code 230.524.08

NEW 2021 MODEL

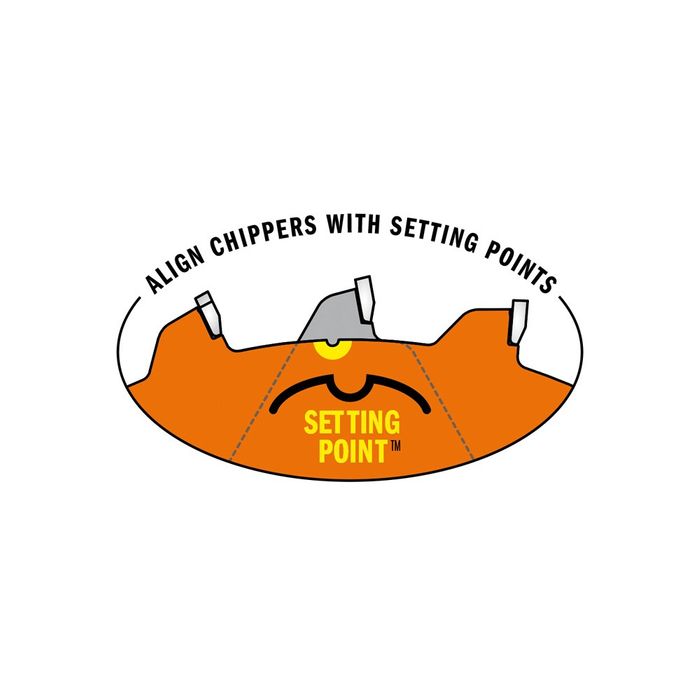

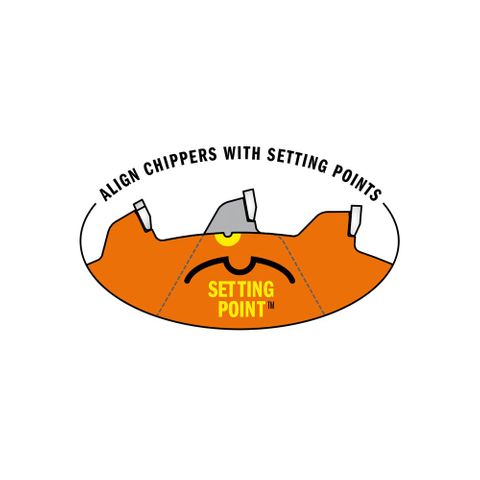

* Innovative setting points for alignment of chipper blades

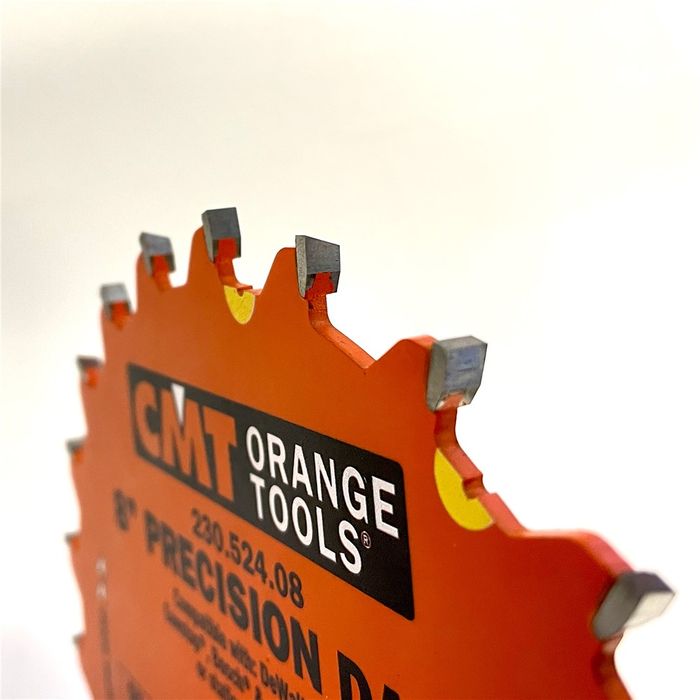

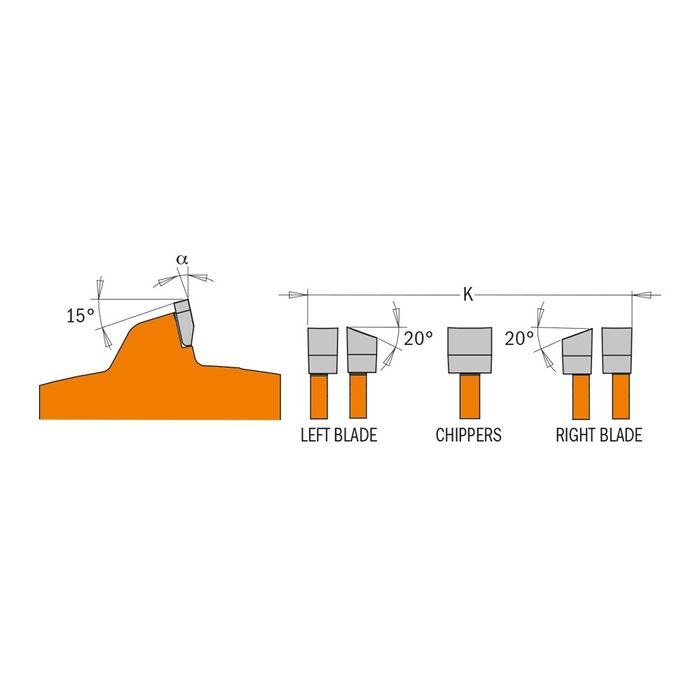

* ATB + FTG grind for excellent cutting efficiency, clean edges and flat bottom trenches
* 24T Main blades with 2 Wing Chipper Blades

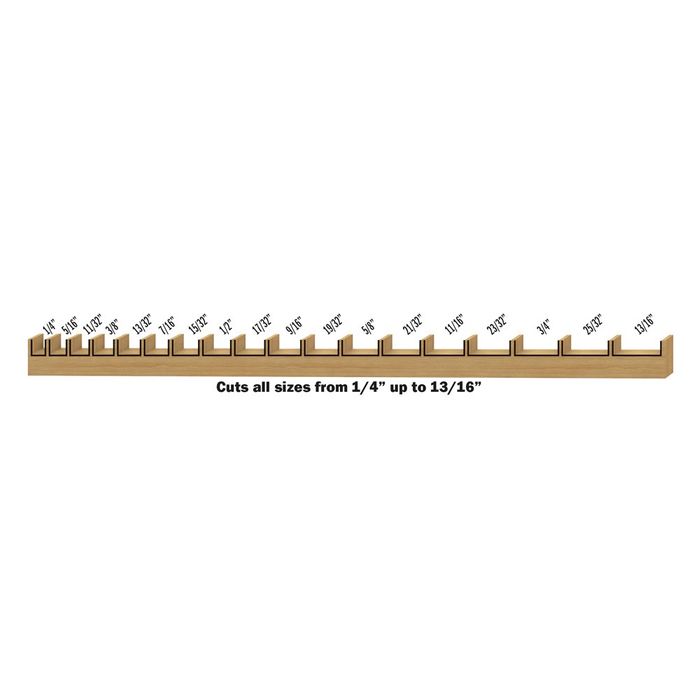

* Dados from 6.35mm to 23mm (1/4" to 29/32")
* This model has a 5/8" bore diameter

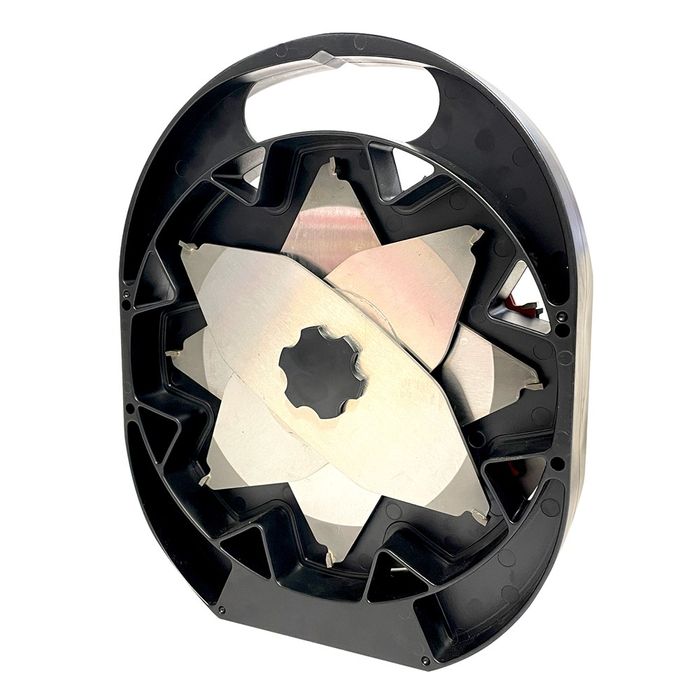

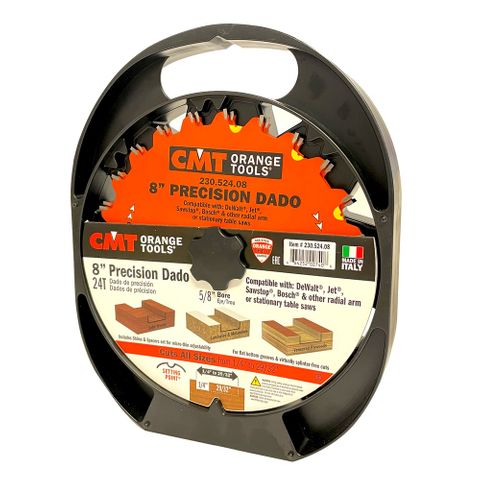

* Supplied in a hard storage case

CMT's new and improved Dado design features CMT's Orange Shield coating that protects from heat build-up, gumming and corrosion; innovative setting points for accurate alignment of the chipper blades; along with an ATB + FTG grind geometry for crisp edges and flat channel rebates and trenches.

Dados or rebates offer a great deal of strength to any joint in woodworking. Once setup, a Dado set is possibly the fastest way of cutting dados on Dado capable cabinet saws.

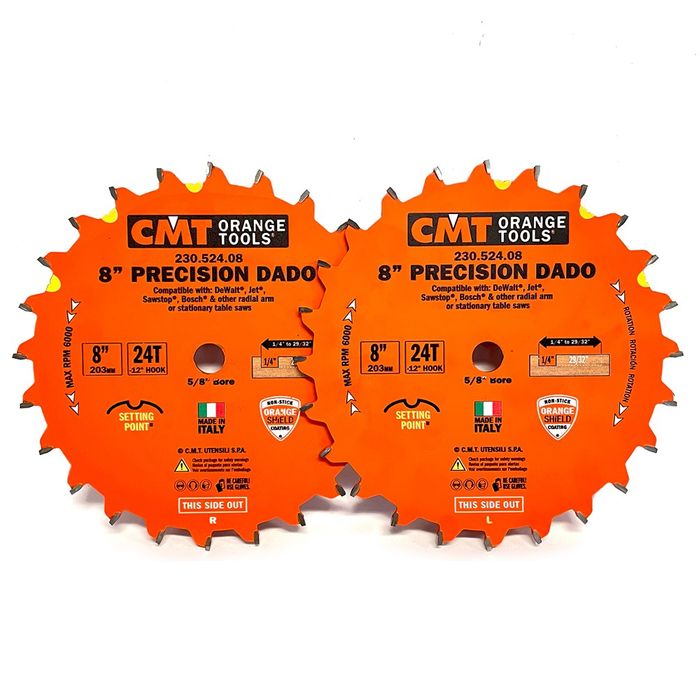

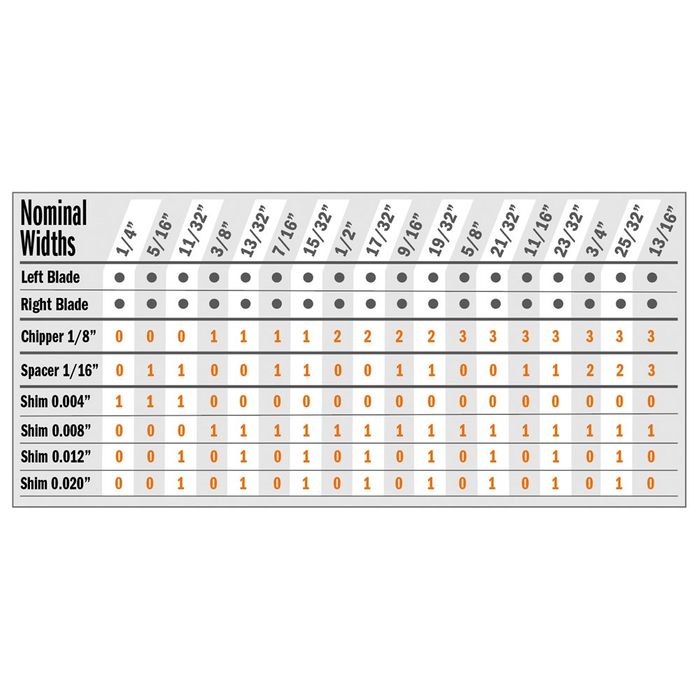

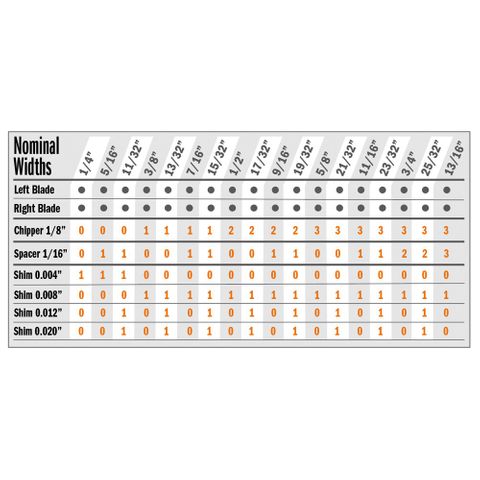

Two 24T outer blades, one left oriented, one right, are coupled with 3 x two-wing chippers and a stack of shims - the shim set included allow cuts between 6.35mm and 23mm (1/4" to 29/32").

CMT’s Precision Dado set offers a splinter free way of creating dados at the right width using a combination of included shims and chipper blades to match the width to the job at hand. Capable of more than just dados to house a shelf, these blades can assist with joints such as half lap joints, box joints (over-sized finger or knuckle joints), tongue and groove joinery, tenons for mortise and tenon joinery as well as so much more. All this makes this set an ideal accessory for any dado friendly table saw.

Safety tip: These blades are not used to cut through the entire depth of the timber, rather only part way through - so push blocks should be used to keep hands and fingers away from the "blind" cut.

*NB: Unlike a single circular saw blade, dado sets can not be used with arbor reducing bushes. It is therefore imperative that you purchase the set with a bore diameter that matches your machine arbor. Available in 5/8" or 30mm bore diameters.

Specifications;
Brand CMT
Blade Diameter 200mm
Blade Teeth Count 24
Blade Use / Type Dado Set
Blade Kerf 6.35mm to 22.23mm
Grind FTG + ATB
Hook Angle -5°
Blade Bore 5/8"
Bit Cut Diameter 203mm

  • Auckland
    Limited Stock
  • Christchurch
    Sorry, not in stock. Please contact us to backorder
