  • Veritas 4-Way Speed Frame Clamp
  • Veritas 4-Way Speed Frame Clamp

Veritas 4-Way Speed Frame Clamp

Stock Code:
05F01-20
Price:
$124.50 inc GST

Description

Veritas code 05F01.20

The fastest-adjusting frame clamp on the market.

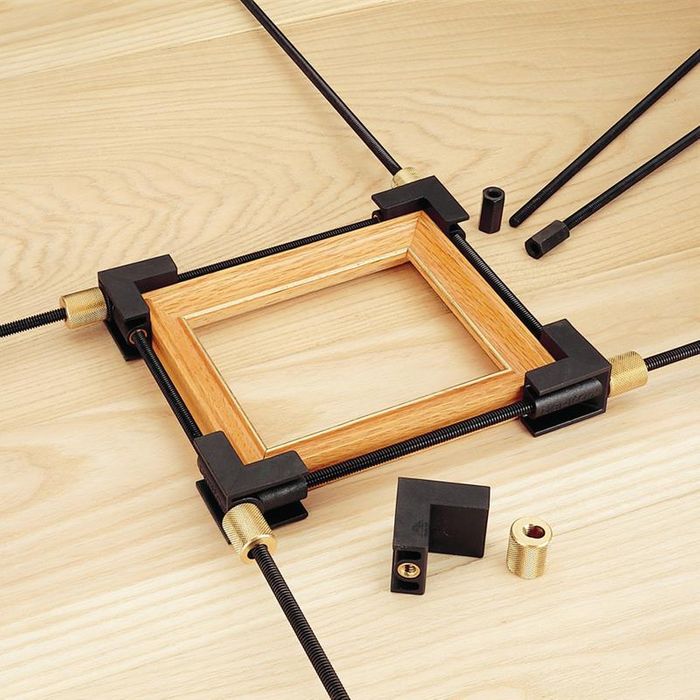

Completely knurled for good grip, the speed-clamping nuts are designed to let you make fast adjustments, yet hold securely when you tighten them. They are cross drilled to slide easily on the rods until they come up against a corner clamp; then their threads engage. To release them, you just have to back them off a turn or two and they are then free sliding again.

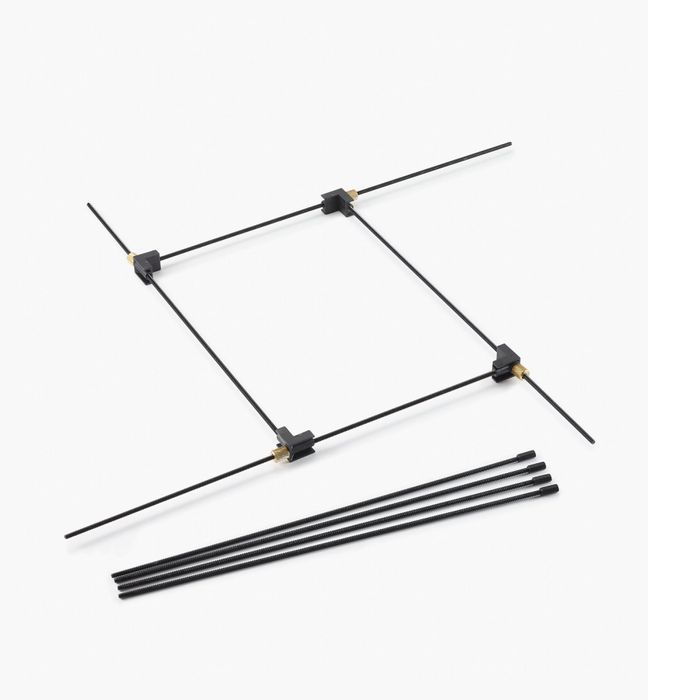

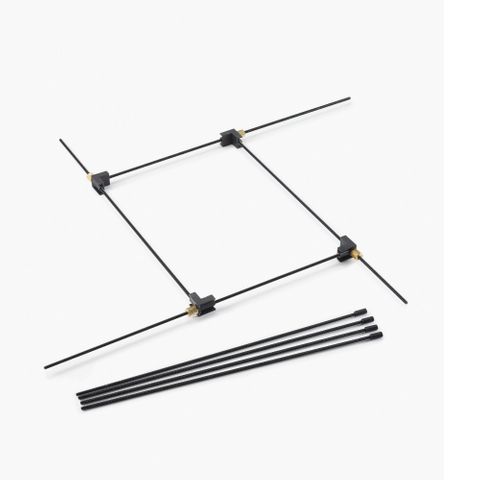

The speed clamp includes four corners (strong, glass-filled nylon with brass inserts), four speed-clamping nuts and four 1/4-20 threaded rods that will clamp up to 23" (585mm) square.

To increase clamping capacity to 44" (1118mm) square or 65" (1651mm) by 23" (585mm) rectangle, an extension set is included; it includes four 1/4-20 threaded rods and four coupling nuts. The rods and coupling nuts have a black-oxide finish.

Speed-clamping nuts are also available separately to upgrade an older model or to use as jig and fixture parts.

Made in Canada.

  • Auckland
    Available
  • Christchurch
    Sorry, not in stock. Please contact us to backorder
