Veritas PM-VII Blade 2.25 inch - 50deg

Stock Code:
05P34-74
Price:
$189.00 inc GST

Description

Veritas Code 05P34.74

Replacement PM-V11 Plane Blade - with 50°:

05P34-01 Veritas® Low-Angle Jack Plane
05P36-01 Veritas® Bevel-Up Smoother Plane
05P37-01 Veritas® Bevel-Up Jointer Plane

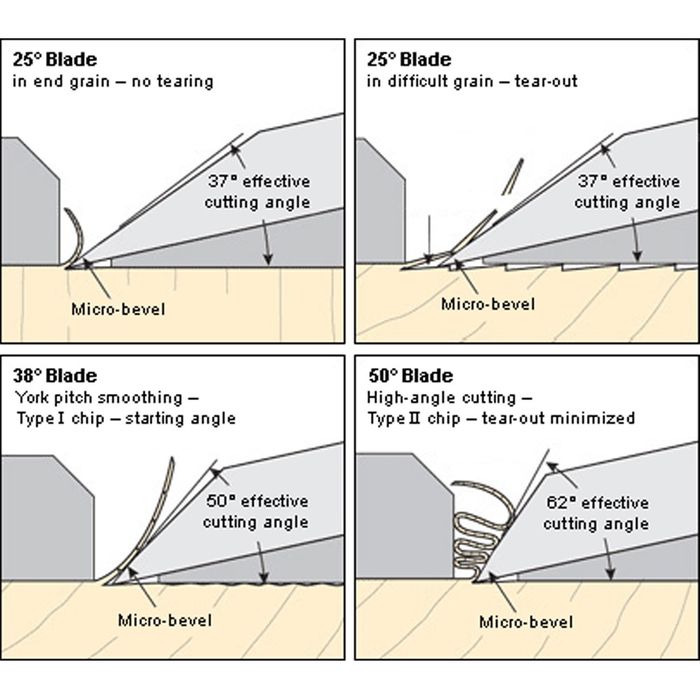

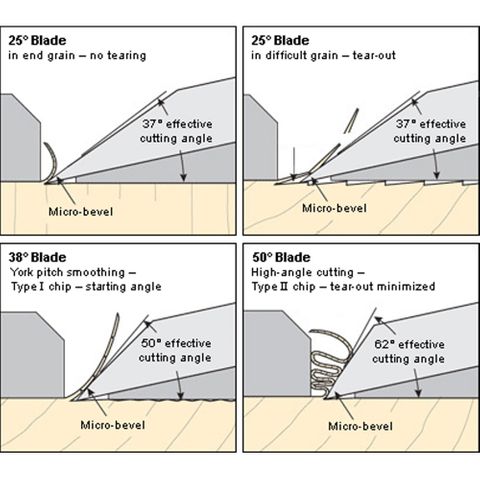

The 50° blade is for smoothing woods with widely varying or reversing grain (e.g., bird’s-eye maple) where tear-out is difficult to control. The resulting cutting angle of 62° produces what is known as a Type II chip (or shaving), one created by wood failure right at the cutting edge, eliminating tear-out on even the most difficult grains. Planing wood at this cutting angle is quite a workout – but the results are well worth it.

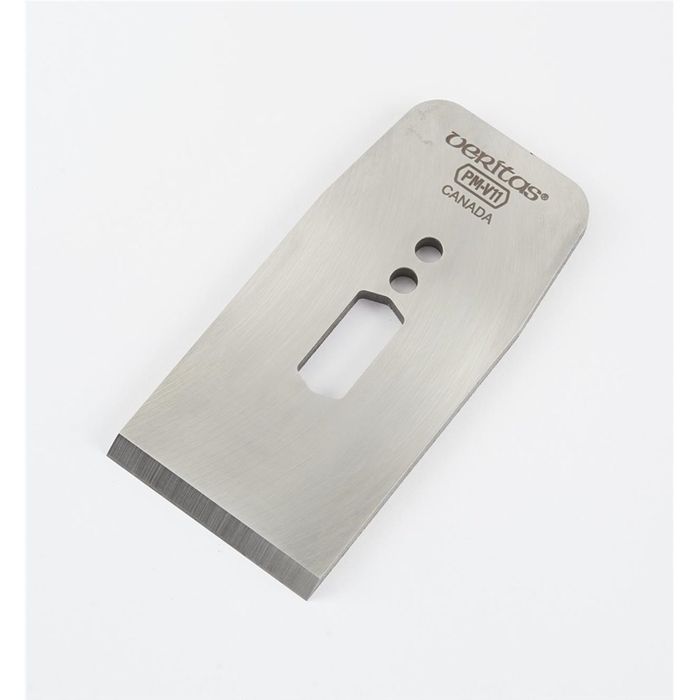

Blade is 2-1/4" wide, 3/16" thick, made of PM-V11 and lapped on non-bevel side to flatness tolerance of 0.0002" or better over the working surface; average roughness surface finish of 5 microinches (0.000005") or better

Veritas' patented PM-V11 tool steel

Read about PM-V11 steel here http://www.pm-v11.com

Blade only, does not include the Hand Plane

Features;
* Good edge retention
* Resistant to impact
* Easy and quick to sharpen

Product Specifications
Brand Veritas
Blade Width 57mm
Material PM-V11
