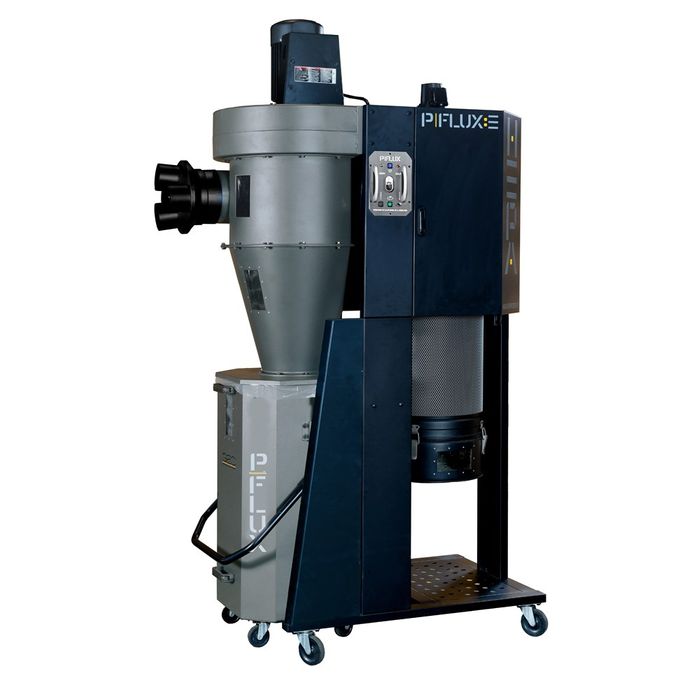

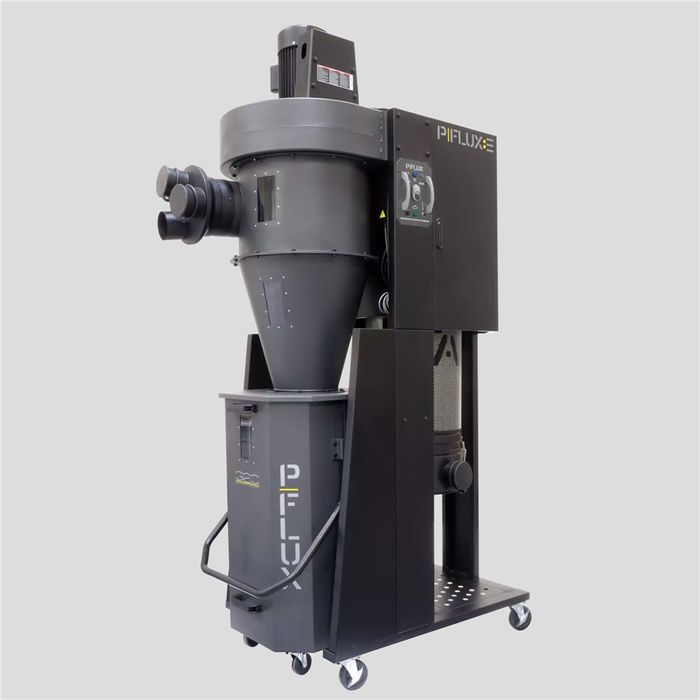

Laguna P-Flux 3 Series Cyclone Dust Extractor
Description
Laguna P-Flux 3 Series Cyclone Dust Extractor
Features
Laguna P-Flux Series Cylcone Dust Extractor
Quiet operation - 76dB @ 3m
Huge 174L dust collection capacity
3HP Motor (1phase, 32 amp)
1624CFM and max. 11.2"H2O Static Pressure
Remote control operated on/off
HEPA rated Pleated Filter Canister filters 100% of 1 micron particles
Also filters 94% of particles down to 0.4 micron
Standard Auto filter cleaning system
Illuminated drum and drum waste level indicator
Noise reducing acoustic shroud panels standard
Unit is on castors for easy maneuverability
Drum features easy lift and seal mechanism
The Laguna P Flux cyclone series is one of the most radical designs to ever hit the market. HEPA class canister filtration and many unique innovative features, make these high-end cyclones the market leaders. A perfect choice for those looking to minimise workshop dust to the very lowest level.
All Laguna cyclones have:
Remote start & stop
Riveted steel fan with backward curved fin design
Smart lift collection drum
Inlet with splitter and rubber blanking cap
Portability with 4 swivel castors

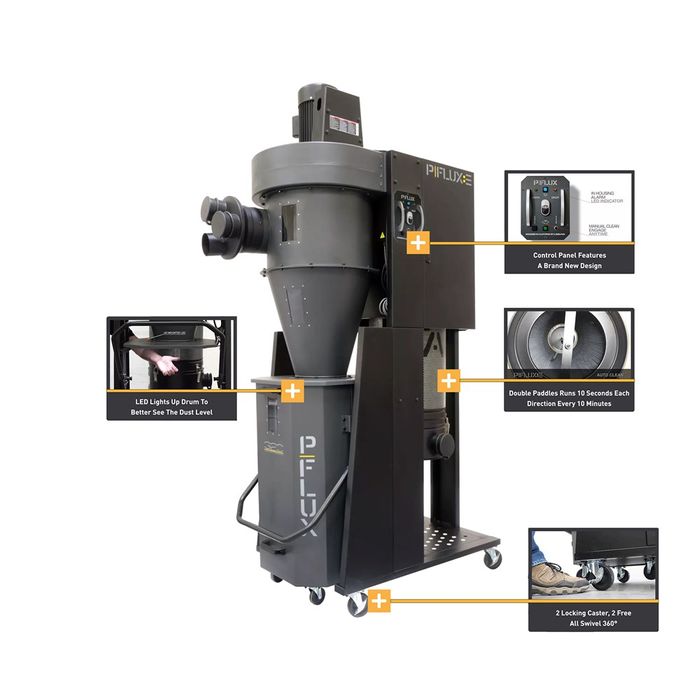

P Flux series innovative features:

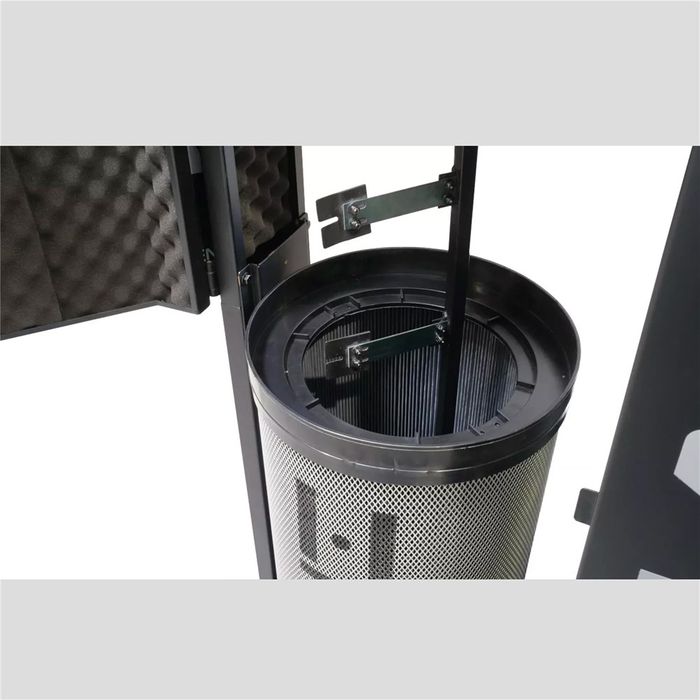

Auto clean cartridge fliter
HEPA Filtration down to >99% @ 0.4micron

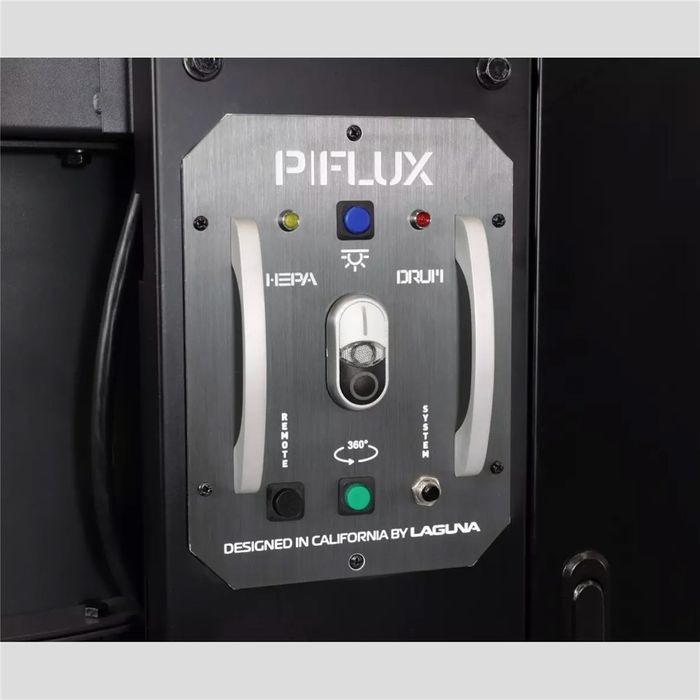

LED warning light when collection drum is full
LED warning light when HEPA filter needs cleaning
Illuminated drum to check dust level

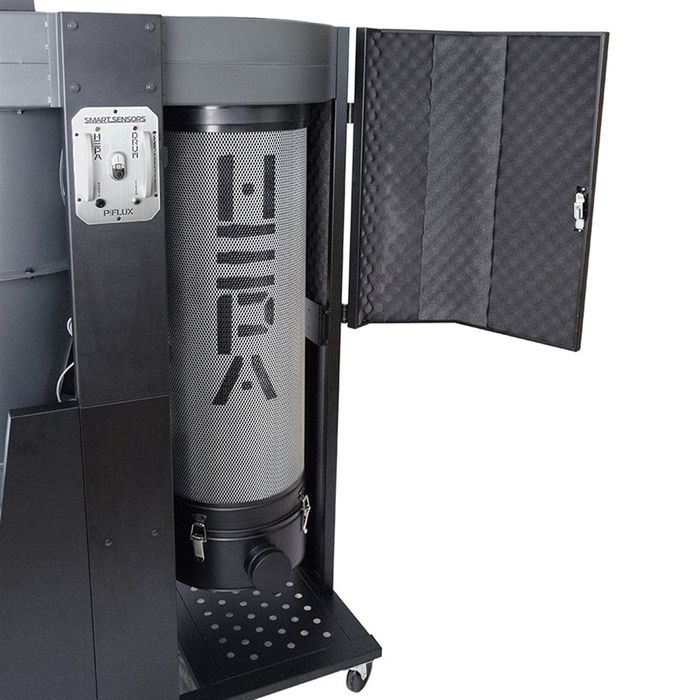

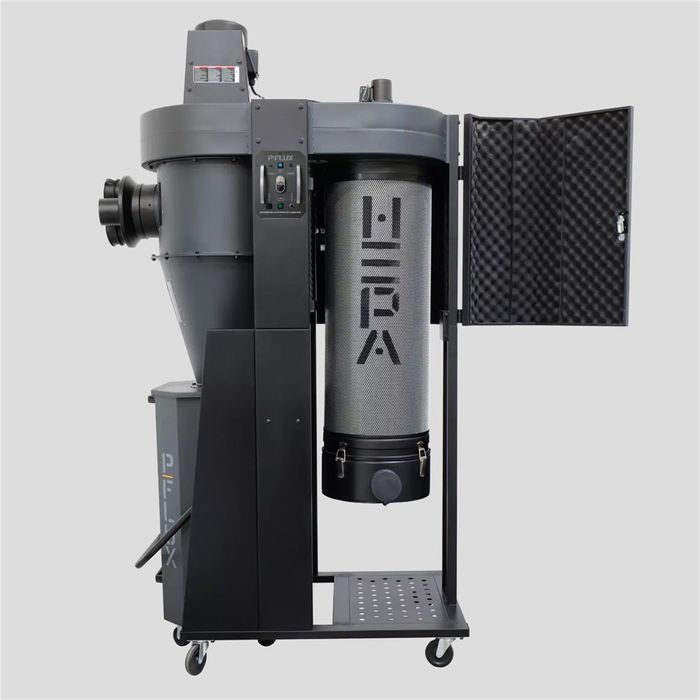

Swing away doors with acoustic foam to lower the noise level

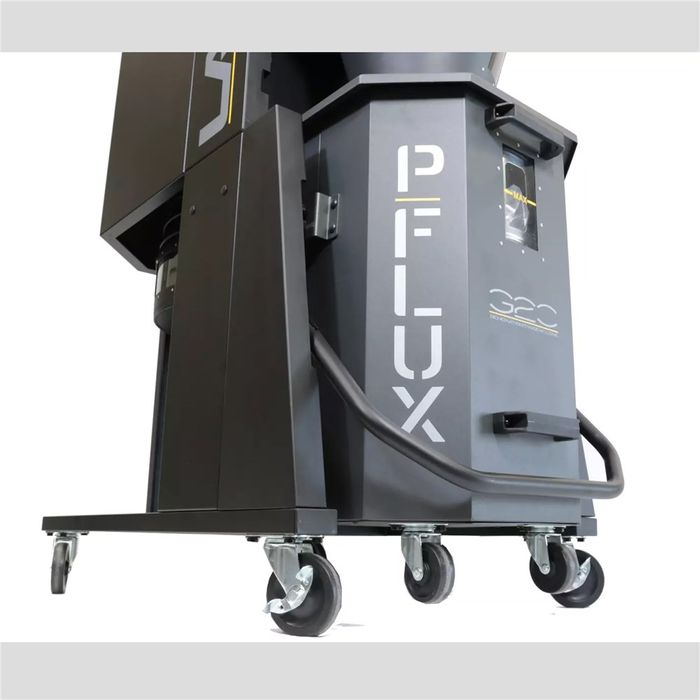

The octagonal collection drum is mounted on a set of castors. When locking the collection drum into position, using the quick action lever. Smart features mean faster drum emptying compared to the traditional weighted bag method.
A 100mm (4”) hose port is located on the end of the HEPA filter to allow automated emptying of the very fine dust collected in the chamber. Connect the other end of the hose to the main inlet and run the cyclone which moves the fine dust into the collection drum.
When it comes to measuring airflow, there are many ways to do it. Laguna quote the traditional method, for comparison against other brands, as well as a more realistic method which gives a 'real world' result.
Supplied with remote control, 1 collection bag for main drum and a 1.8m power cable.
NOTE: This industrial machine requires a licensed electrician to complete the final assembly & electrical connections.
Specifications
Brand Laguna
Warranty 2 Years
Motor 2200w (3.0hp)
Noise Sound Level 76 dB(A) @ 3m
Dust Extraction Connection Diameter 1 x 200mm or 3 x 100mm (1 x 8" or 3 x 4")
Maximum Airflow 1624CFM
Maximum Airflow Pressure 285mm in water (11.2"/H2O)
Drum Capacity 174L
Filer Cleaning Auto Cleaning System
Filter Rating HEPA (0.4 Micron at 99.2%) - MERV Rating 16+
-
