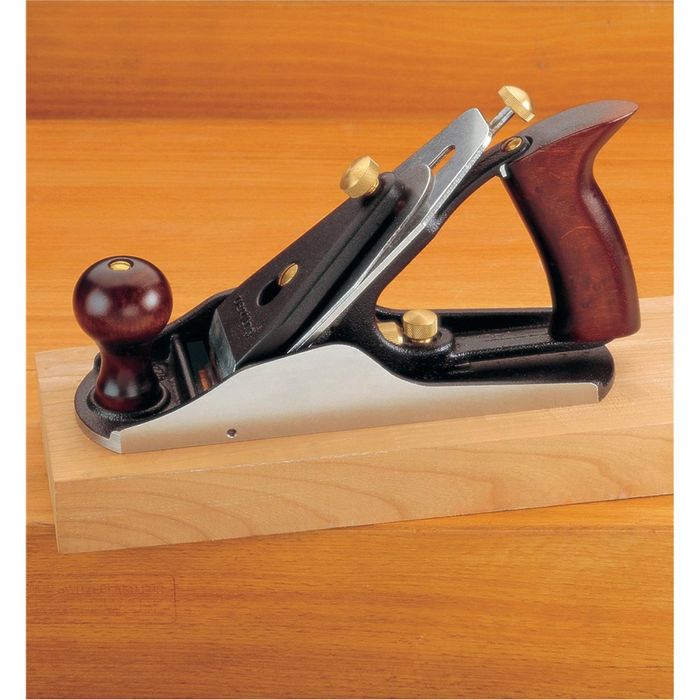

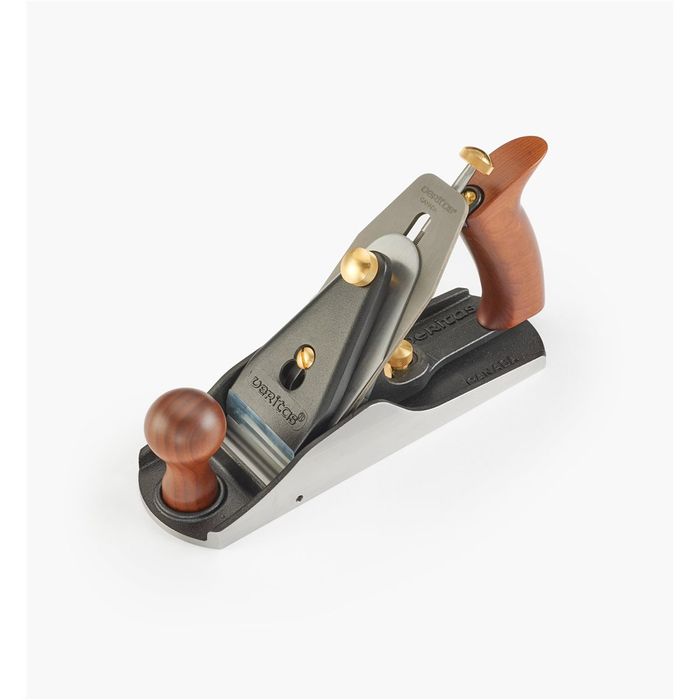

Veritas #4-1/2 Smoothing Plane with PM-V11 Blade

Stock Code:
05P23-71
Price:
$695.00 inc GST

Description

Veritas code 05P23.50

Details
The Veritas #4-1/2 smoothing plane represents the evolution of a traditional tool, addressing shortcomings such as blade chatter and throat adjustment, while making use of modern materials for the castings and blade.

It incorporates a completely new concept in bench planes, a frog that extends all the way to the sole of the plane. This effective design reduces blade chatter by providing complete blade support and allows a user to quickly adjust the mouth as required.

It can be closed to a narrow slit for fine shavings, or opened for heavier cuts. All of this is done without having to remove the lever cap or anything else from the plane; simply loosen a pair of screws and dial the desired opening with a thumb wheel. The carefully machined fit between frog and sole makes the process fast and accurate.

The 47.6mm (2-7/8") x 250mm (9-3/4") ductile cast iron body is fully stress relieved, machined, and surface ground on both the wings and sole for accuracy. The extra-large side wings make for very stable shooting ability.

The lapped PM-V11 blade is a full 3.2mm (1/8") thick and 35mm (2-3/8") wide. This thick blade, combined with the full-depth frog, virtually eliminates chatter under all conditions. Both the hardwood front knob and tote are generous in size for control and a comfortable grip. The combined feed and lateral adjust lever make blade setting easy and accurate. At approx. 2.27kg (5 lb), this has the mass needed for an effective smoother.


Features
* Sole is approx 250mm (9-3/4" long), 47.6mm (2-7/8") wide and flat with square sides; extra-large side wings make for stable shooting abilities
* Body made from stress-relieved ductile cast iron
* Frog extends to sole to completely support blade and reduce blade chatter
* Mouth opening can be adjusted without removing lever cap
* Combined feed and lateral adjustment knob makes blade setting easy and accurate
* Set screws in sides prevent blade from shifting and provide true lateral adjustment
* Blade is 35mm (2-3/8") wide, 3.2mm (1/8") thick and made of PM-V11 steel. It is lapped on the non-bevel side to a flatness tolerance of 0.0002" or better over the working surface; average roughness surface finish of 5 microinches (0.000005") or better
* Weighs approx 2.27kg (5 lb)
* Made in Canada. Patented.
