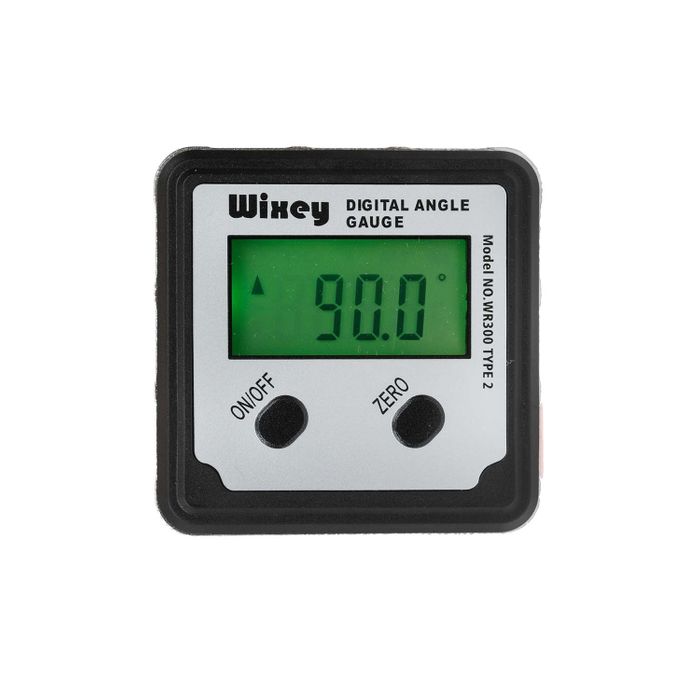

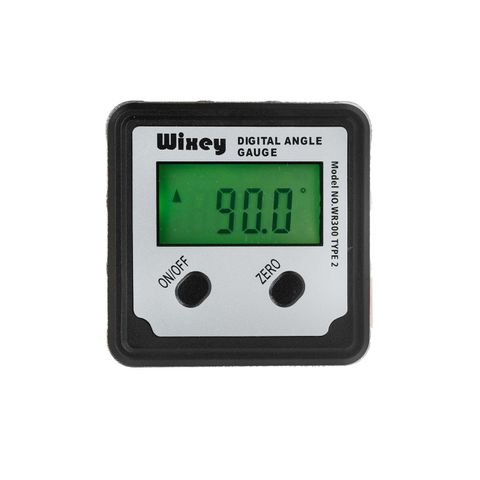

Wixey Type 2 Digital Angle Gauge with Backlight

Stock Code:
WIX-WR300
Price:
$64.00 inc GST

Description

Type 2 - The Wixey Digital Angle Gauge accurately sets saw blade bevel angle.

It has 0.1 degree resolution, uses a single AAA battery, and works great for miter saws, table saws and other machinery set up.

Easy to Use

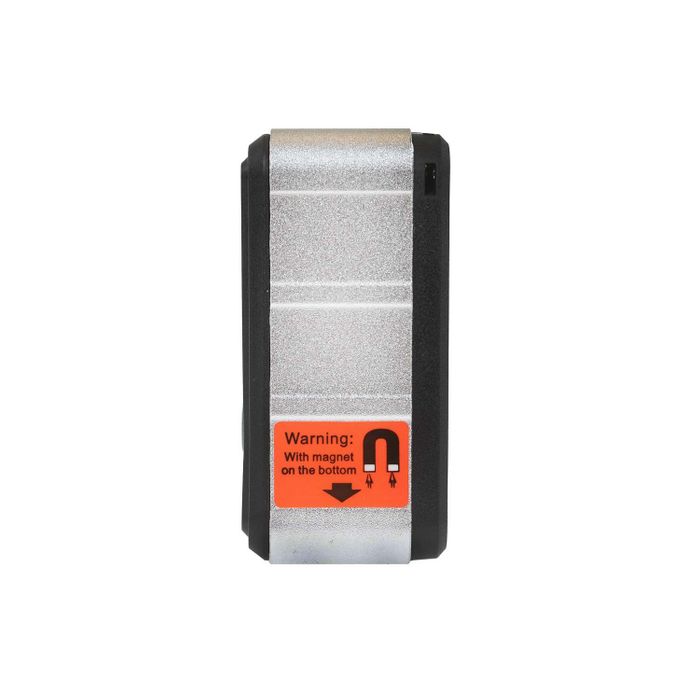

Super strong magnets hidden inside the bottom of the gauge securely attach the digital angle gauge to saw blades.

Press the ZERO button to calibrate the angle gauge to any reference surface.

Specifications
Range: +/- 180 degrees
Resolution: 0.1 degrees
Accuracy: +/- 0.2 degrees
Repeatability : +/- 0.1 degrees
Size: 2.3" x 2.3" x 1.1"

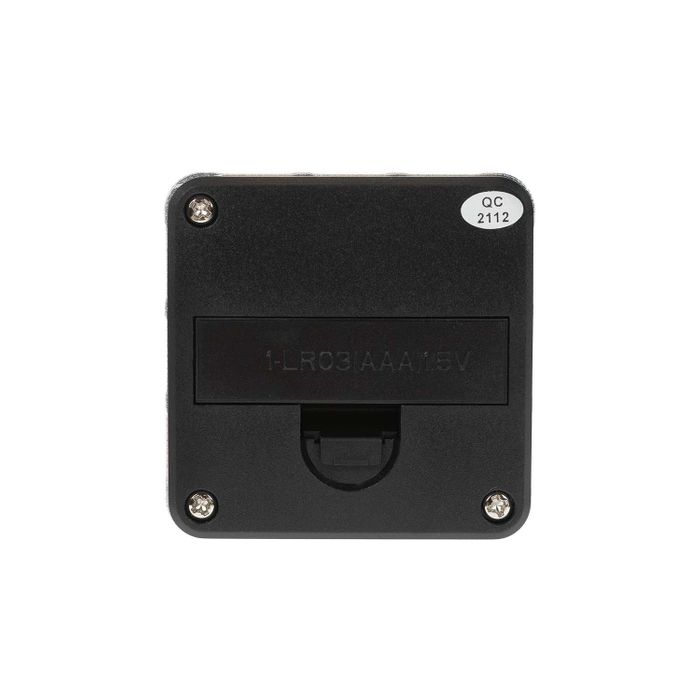

Battery: 1 - AAA
Auto Shut Off: for extended battery life
Backlight: for easy viewing
