High Torque AA battery Pendulum Clock Movement - 20.6mm (13/16") shaft

Stock Code:
MVT412PM-HT
Price:
$64.00 inc GST

Description

This New ISI AA High Torque Pendulum Clock Motor is destined to be an industry leader because it “TURNS UP THE TORQUE - PENDULUM STYLE!”

The ISI AA high torque MVT is the perfect addition to our large selection of high torque motors and large hands.

It offers you the best of both worlds - a pendulum function combined with a time function operating on a single AA battery.

The pendulum aspect of the MVT412PM-HT does not affect the time element of the motor. It is an independent function and does not have any bearing on the time keeping function of the movement. This allows for greater flexibility in the construction of your DIY project or the repair project.

The extra long shaft can easily be shimmed down with a couple washers to fit any dial face thickness.

The ISI AA high torque motor is offered at an excellent price and is the perfect alternative to our High Torque C battery Pendulum movements.

This AA motor is able to match the torque to drive large clock hands, while reducing the size of the body to help facilitate the repair process and making a new clock.

The pendulum element of this movement is also very impressive. A pendulum has two parts; a Rod and a Bob. The rod is the part that hangs down from the motor. The mechanics of the MVT412PM-HT will swing a rod up to 30 inches long.

The bob is the object that is connected to the bottom of the rod. This high torque movement has the power to swing a bob weighing up to 40 grams.

Features:

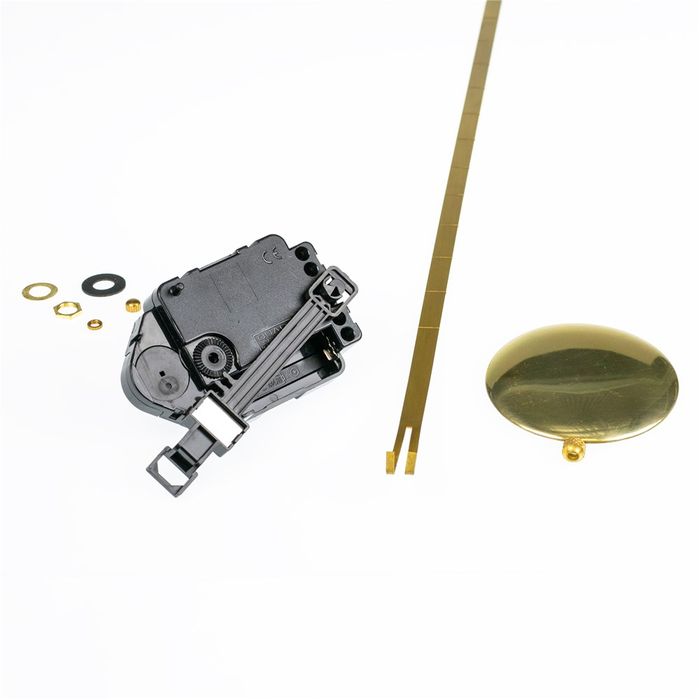

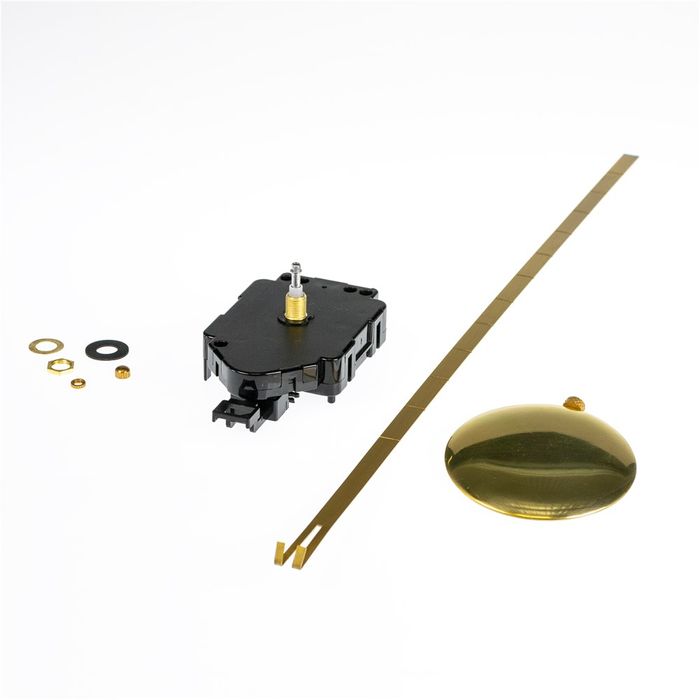

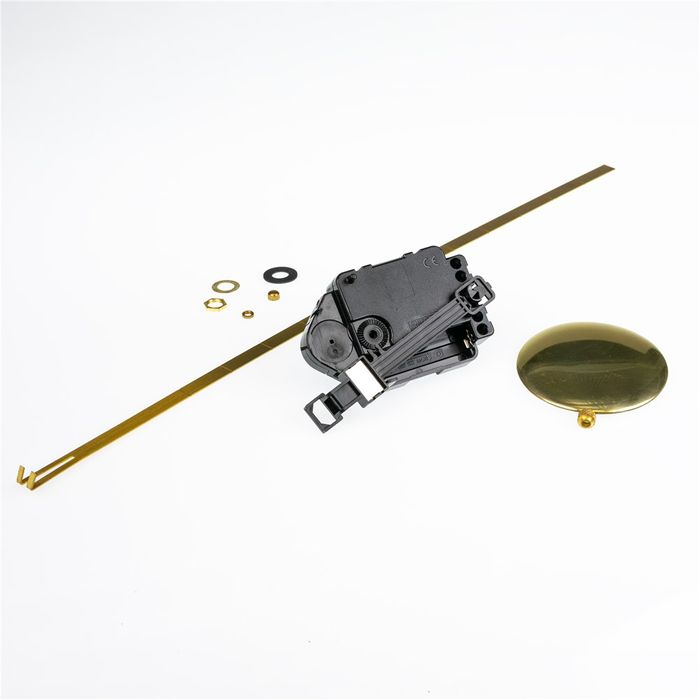

* 67mm bob, 300mm rod, and hardware are included

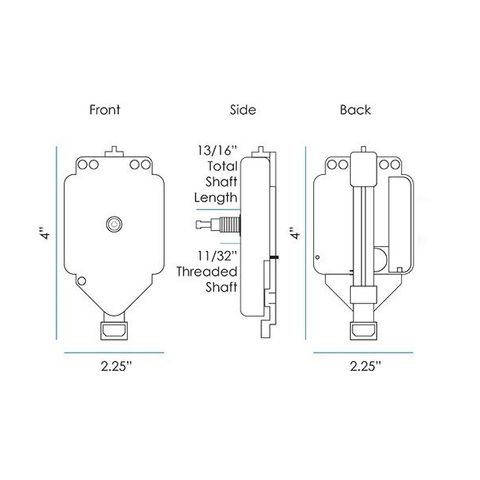

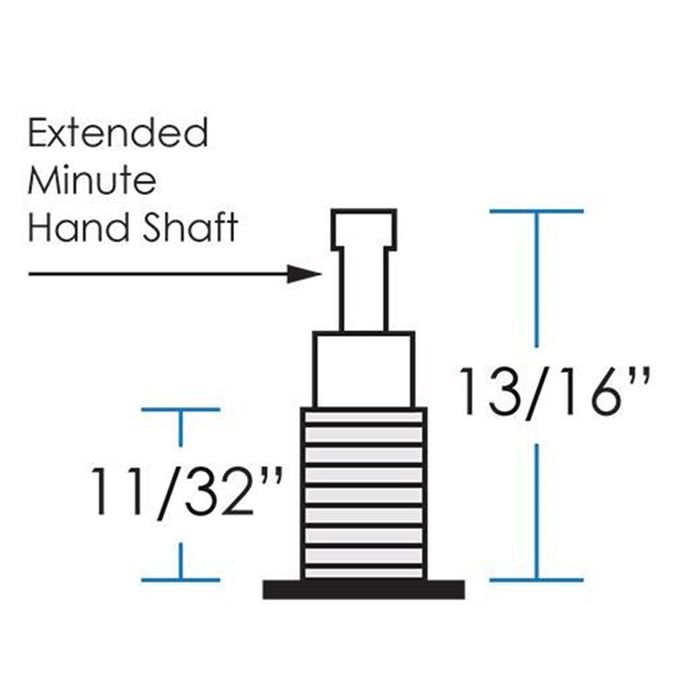

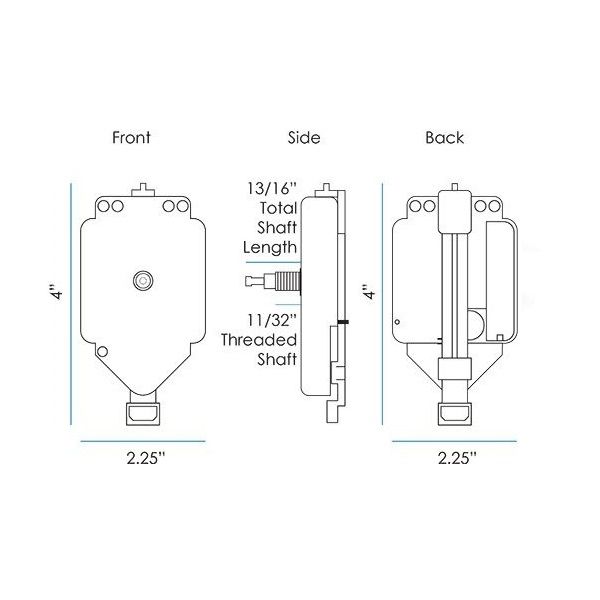

* Length of threaded section of the spindle is 11/32 inch or 8.73mm
* For use on a board up to 6mm thick
* Total length of spindle is 13/16 inch or 20.64mm
* The shaft diameter is 5/16 inch (8mm) so a 3/8" (9.5mm) mounting hole is the correct size to drill in your case.
