MagSwitch Drill Press Fence Pro
Description
NEW from Magswitch - an even BIGGER Magnetic Drill Press Fence, the PRO!

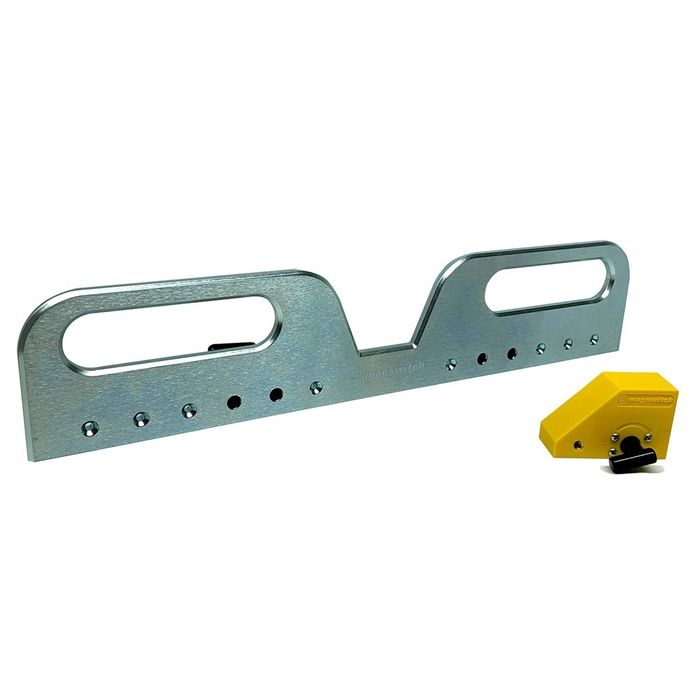

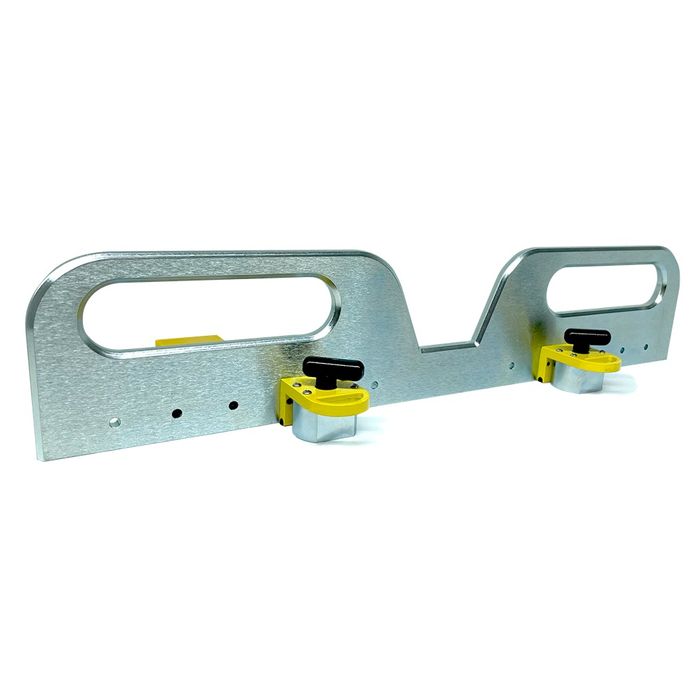

Made from a solid piece of steel, machined all round for an ultra-flat and square surface. The fence is supplied with 2 Magswitch toggle activated magnets(Mag-Jigs), that can be adjusted in their mounting positions via the multiple drilled holes, to suit just about any width of table. These custom Mag-Jig's also feature a rubber grommet underneath that provides some cushioning and friction to the attachment, for a very secure lock to your table.
The fence is designed with a cutaway centre, to allow for clearance of the chuck when drilling close to corners and edges. Also included is an infinitely adjustable stop, for repeat drilling operations. This is also actuated via a Magswitch toggle and as the fence is steel, can be positioned anywhere you need on the face. With both 90° and 45° faces, setup for just about any repeat drilling operation is quick and simple.
Dimensions of the Pro Fence are : 533mm x 109mm x 11mm (Steel Fence excluding the Mag-jigs and Repeat Stop)
A deceptively simple yet exceptionally functional, easy-to-use, premium fence offering to upgrade your drill press. Also available in a smaller format, to suit just about any drill press.
*NB: Drill Press not included!!
FEATURES:
* Powerful magnets allow quick positioning and fine adjustment of the fence and make it easy to remove and store when a fence is not needed.
* Magnets can be positioned at different points on the fence for optimal placement on drill press tables.
* The sturdy large vertical plate will not interfere with the drill chuck, even when drilling holes close to the fence, and can be used as a bandsaw resaw fence.
* Stop block that can quickly be positioned flush with the drill press table or sacrificial material under the workpiece, and can be stored out of the way when it is not needed.
* The fence plate is 21 inches (533mm) long by 4 5/16 inches (109mm) high.
SPECIFICATIONS
Maximum Breakaway Force 291.01 lbs / 132 kg
Maximum Shear 41.89 lbs / 19 kg
Full Saturation Thickness 0.24 in / 6 mm
Overall Height (Max) 4.29 in / 109 mm
Overall Length 21 in / 533.4 mm
Overall Width 2.72 in / 69.15 mm
Net Weight 8.38 lbs / 3.8 kg
Magnetic Pole Footprint 1.57 x 1.22 (2x) in / 40 x 31 (2x) mm
